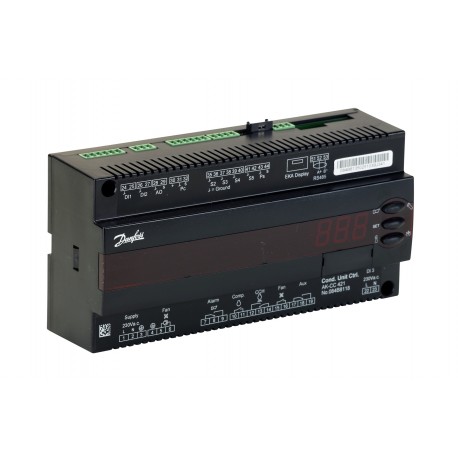

084B8080 DANFOSS REFRIGERATION OPTYMA Plus, Controller
084B8080
DANFOSS REFRIGERATION
OPTYMA Plus, Controller
Optyma Plus controller
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Product Type: Optyma Plus controller, Analog inputs (AI) [pc]: 7, Analog outputs (AO) [pc]: 2
Product details
| Gross weight | 632 Gram |
| Net weight | 628 Gram |
| Volume | 2.003 Liter |
| EAN | 5702428988841 |
| Type | Optyma Plus controller |
| Product group | Compressor/condenser control |
| Product Name Description | Condensing unit controller |
| Gross weight | 632 Gram |
| Net weight | 628 Gram |
| Volume | 2.003 Liter |
| EAN | 5702428988841 |
| Type | Optyma Plus controller |
| Product group | Compressor/condenser control |
| Product Name Description | Condensing unit controller |
| Analog inputs (AI) [pc] | 7 pc |
| Analog outputs (AO) [pc] | 2 pc |
| Application area | Condensing Unit |
| Approval | C-TICK CE CMIM |
| CE mark | Yes |
| China RoHS compliance | Out of scope |
| Communication type | MODBUS RS485 |
| Contains batteries | No |
| Controller type | Condensing Unit Controller |
| Digital inputs (DI) [pc] | 3 pc |
| Digital outputs (DO) [pc] | 5 pc |
| Display - option | EKA 163B EKA 164B |
| Display on front | Yes |
| Division | 25 |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) 7(a) 7(c)-I |
| Frequency [Hz] | 50/60 Hz |
| Function | Optyma controller |
| Further information | Incl.terminals |
| Packing format | Single pack |
| PFAS content [Yes/No] | No |
| Power consumption [VA] | 5 VA |
| Product accessories | Electron. control accessories |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) Lead monoxide (PbO, CAS no. 1317-36-8) Lead titanium zirconium oxide (CAS no. 12626-81-2) 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol (CAS no. 79-94-7) |
| SCIP dossier no. | 55d68436-1d52-495d-827f-37a33f91c57d |
| SCIP dossier product name | Optyma Plus controller |
| Serviceable | No |
| Supply voltage [V] AC | 230 V |
| TRIAC output | 1 pc |
| Analog inputs (AI) [pc] | 7 pc |
| Analog outputs (AO) [pc] | 2 pc |
| Application area | Condensing Unit |
| Approval | C-TICK CE CMIM |
| CE mark | Yes |
| China RoHS compliance | Out of scope |
| Communication type | MODBUS RS485 |
| Contains batteries | No |
| Controller type | Condensing Unit Controller |
| Digital inputs (DI) [pc] | 3 pc |
| Digital outputs (DO) [pc] | 5 pc |
| Display - option | EKA 163B EKA 164B |
| Display on front | Yes |
| Division | 25 |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) 7(a) 7(c)-I |
| Frequency [Hz] | 50/60 Hz |
| Function | Optyma controller |
| Further information | Incl.terminals |
| Packing format | Single pack |
| PFAS content [Yes/No] | No |
| Power consumption [VA] | 5 VA |
| Product accessories | Electron. control accessories |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) Lead monoxide (PbO, CAS no. 1317-36-8) Lead titanium zirconium oxide (CAS no. 12626-81-2) 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol (CAS no. 79-94-7) |
| SCIP dossier no. | 55d68436-1d52-495d-827f-37a33f91c57d |
| SCIP dossier product name | Optyma Plus controller |
| Serviceable | No |
| Supply voltage [V] AC | 230 V |
| TRIAC output | 1 pc |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
