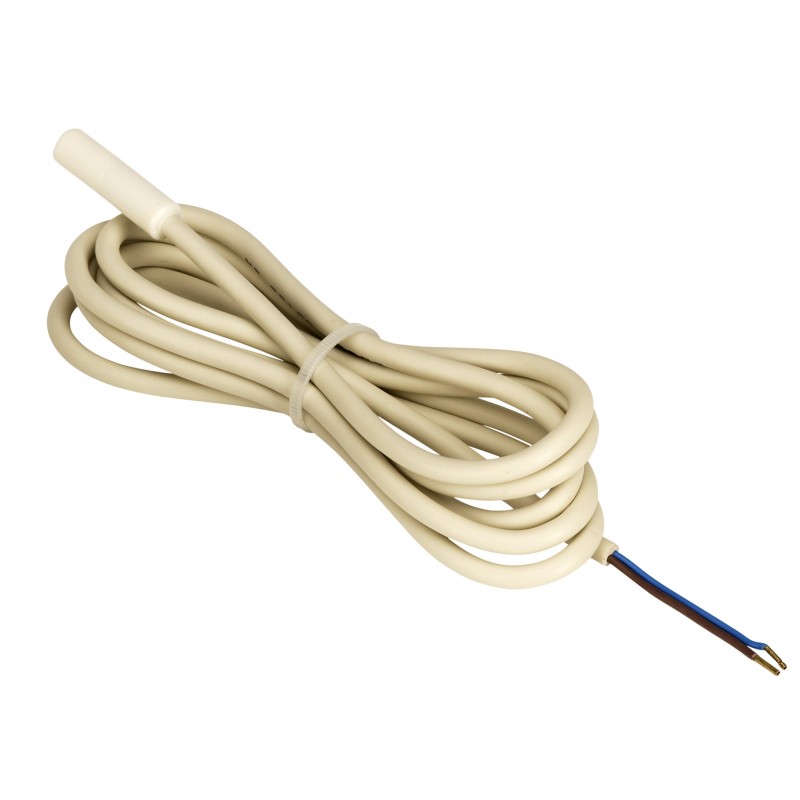

DANFOSS REFRIGERATION 084B4404 084B4404 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

084B4404 DANFOSS REFRIGERATION Temperature sensor

Name: 084B4404 DANFOSS REFRIGERATION Temperature sensor
Brand: DANFOSS REFRIGERATION
SKU: DAO084B4404
Price: 16.81 USD
Availability: OutOfStock

Reference: 084B4404

Manufacturer: DANFOSS REFRIGERATION

Description:

Temperature sensor

Sensor EKS 211, 3.5m w. crimp I/75

Temperature sensor, EKS 211, 3.5 m, NTC, 5000 Ohm

Categories:

DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

More Info
PDF
Reviews

Guarantee, repair and return.

Total: 1.126,06 €

Unit Price: 15,0141 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 4-5 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

MORE INFO

Measuring range [°C]: -40 - 80, Electrical connection: Cable with pins, Cable type: PVC

Product details

Gross weight	0.107 Kilogram
Net weight	0.098 Kilogram
Volume	0.315 Liter
EAN	5702428099714

Type	EKS 211
Product group	Sensors
Product Name Description	Temperature sensor

Gross weight	0.107 Kilogram
Net weight	0.098 Kilogram
Volume	0.315 Liter
EAN	5702428099714
Type	EKS 211
Product group	Sensors
Product Name Description	Temperature sensor

Ambient temperature max. [°C]	80 °C
Ambient temperature max. [°F]	176 °F
Approval	CE
Cable length [in]	137.8 in
Cable length [m]	3.5 m
Cable tempr. range [°C] [max]	100 °C
Cable tempr. range [°C] [min]	-40 °C
Cable type	PVC
CE evaluated	Yes
China RoHS compliance	Out of scope
Contains batteries	No
EEE category	5 small equipment (any external dimension < 50 cm)
Electrical connection	Cable with pins
Electrical connection size	2 wire
Enclosure rating IP	IP67
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(c)
Identical product	084N1221
In scope of WEEE	Yes
Label product	Yes
Measuring range [°C] [max]	80 °C

Measuring range [°C] [min]	-40 °C
Measuring range [°F] [max]	176 °F
Measuring range [°F] [min]	-40 °F
NTC Element characteristic	B(20/100): 3980 ±1,5%
Packing format	Industrial pack
Protection tube diameter [in]	0.32 in
Protection tube diameter [mm]	8 mm
Protection tube length [in]	1.18 in
Protection tube length [mm]	30 mm
Protection tube material	PVT
Quantity per packing format	75 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
SCIP dossier no.	c8cac0db-2ee3-4ba7-aa11-15ddb932a486
SCIP dossier product name	NTC Thermistor/ Probe assembly M2020
Sensor elem. resistance [Ohm]	5000 Ohm
Sensor element [pc]	1 pc
Sensor element tolerance	± 5% (R) at 0°C
Sensor element type	NTC
Sensor Insert	Fixed
Wires [pcs]	2 pc

Ambient temperature max. [°C]	80 °C
Ambient temperature max. [°F]	176 °F
Approval	CE
Cable length [in]	137.8 in
Cable length [m]	3.5 m
Cable tempr. range [°C] [max]	100 °C
Cable tempr. range [°C] [min]	-40 °C
Cable type	PVC
CE evaluated	Yes
China RoHS compliance	Out of scope
Contains batteries	No
EEE category	5 small equipment (any external dimension < 50 cm)
Electrical connection	Cable with pins
Electrical connection size	2 wire
Enclosure rating IP	IP67
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(c)
Identical product	084N1221
In scope of WEEE	Yes
Label product	Yes
Measuring range [°C] [max]	80 °C
Measuring range [°C] [min]	-40 °C
Measuring range [°F] [max]	176 °F
Measuring range [°F] [min]	-40 °F
NTC Element characteristic	B(20/100): 3980 ±1,5%
Packing format	Industrial pack
Protection tube diameter [in]	0.32 in
Protection tube diameter [mm]	8 mm
Protection tube length [in]	1.18 in
Protection tube length [mm]	30 mm
Protection tube material	PVT
Quantity per packing format	75 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
SCIP dossier no.	c8cac0db-2ee3-4ba7-aa11-15ddb932a486
SCIP dossier product name	NTC Thermistor/ Probe assembly M2020
Sensor elem. resistance [Ohm]	5000 Ohm
Sensor element [pc]	1 pc
Sensor element tolerance	± 5% (R) at 0°C
Sensor element type	NTC
Sensor Insert	Fixed
Wires [pcs]	2 pc

DATASHEET - PDF

Title

Size

Type

084B4404 084B4404 ES_084B4403.pdf

294 Kbytes

PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN

11 Mbytes
