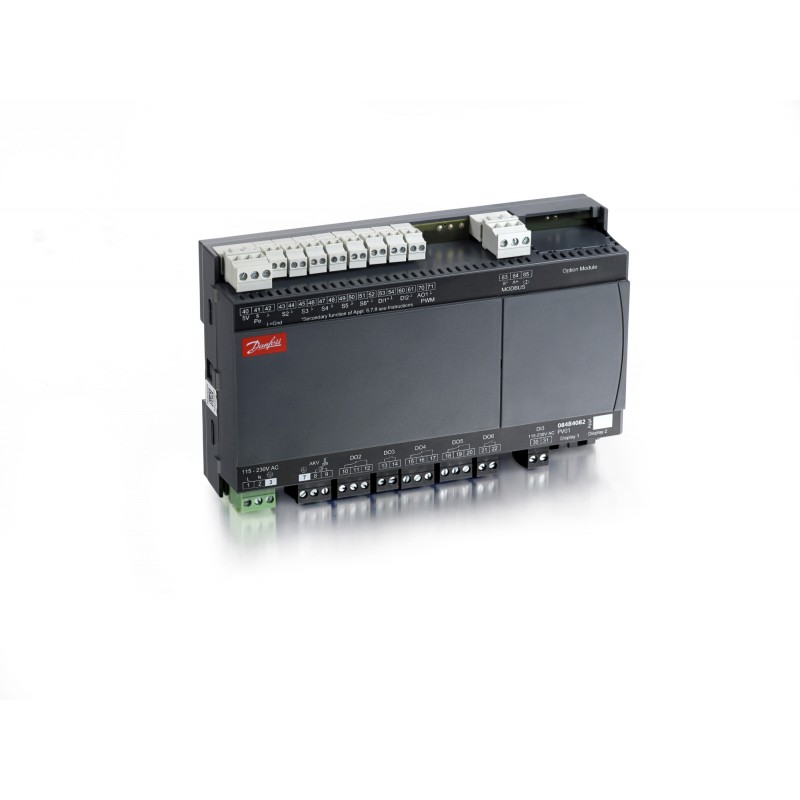

DANFOSS REFRIGERATION 084B4182 084B4182 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

084B4182 DANFOSS REFRIGERATION Case/room controller (EEV), AK-CC55 Single Coil

Name: 084B4182 DANFOSS REFRIGERATION Case/room controller (EEV), AK-CC55 Single Coil
Brand: DANFOSS REFRIGERATION
SKU: DAO084B4182
Price: 650.97 USD
Availability: OutOfStock

Reference: 084B4182

Manufacturer: DANFOSS REFRIGERATION

Description:

Case/room controller (EEV), AK-CC55 Single Coil

Categories:

DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

More Info
Reviews

Guarantee, repair and return.

Unit Price: 581,53 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 4-5 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

MORE INFO

Function: AKV, Pe, 5 Relays, Product features: S2 Injection control; CO2 compliant; Pe Signal, Communication type: MODBUS; Optional LON, Packing format: Industrial pack, Quantity per packing format: 12

Product details

Gross weight	0.395 Kilogram
Net weight	0.325 Kilogram
Volume	1.874 Liter
EAN	5702428547444

Type	AK-CC55 Single Coil
Product group	Evaporator and room control
Product Name Description	Case/room controller (EEV)

Gross weight	0.395 Kilogram
Net weight	0.325 Kilogram
Volume	1.874 Liter
EAN	5702428547444
Type	AK-CC55 Single Coil
Product group	Evaporator and room control
Product Name Description	Case/room controller (EEV)

Analog inputs (AI) [pc]	6 pc
Analog outputs (AO) [pc]	1 pc
Application area	Refrigeration control
Approval	C-TICK CE
CE mark	Yes
China RoHS compliance	Out of scope
Communication built-in	MODBUS
Communication card option	LON RS485
Communication type	MODBUS Optional LON
Contains batteries	No
Controller type	Case Contr. Single Coil
Digital inputs (DI) [pc]	3 pc
Digital outputs (DO) [pc]	6 pc
Display on front	No
EEE category	5 small equipment (any external dimension < 50 cm)
EPD available	Yes
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(c) 7(a) 7(c)-I
Frequency [Hz]	50/60 Hz

Function	AKV, Pe, 5 Relays
Further information	12 pc without terminals
Identical product	084B4082
In scope of WEEE	Yes
Number of Evaporators max.	1 pc
Other RoHS documentation	EAEU RoHS
Packing format	Industrial pack
Power consumption [VA]	5 VA
Press. Transmitter support	RATIOMETRIC
Product features	CO2 compliant Pe Signal S2 Injection control
Quantity per packing format	12 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1) Lead monoxide (PbO, CAS no. 1317-36-8) Lead titanium zirconium oxide (CAS no. 12626-81-2) Bis(ALPHA,ALPHA-dimethylbenzyl) peroxide (CAS no. 80-43-3) Orange lead (lead tetroxide) (CAS no. 1314-41-6) 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol (CAS no. 119-47-1) 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol (CAS no. 79-94-7)
SCIP dossier no.	c43067a3-9294-49f8-9584-9828ad0e9778
SCIP dossier product name	Case controller
Sensor connection	Screw terminals
Supply voltage [V] AC [max]	230 V
Supply voltage [V] AC [min]	115 V
Temp. sensor support	NTC 5000 NTC10000 PTC 1000 Pt 1000
Valve output type	AKV

Analog inputs (AI) [pc]	6 pc
Analog outputs (AO) [pc]	1 pc
Application area	Refrigeration control
Approval	C-TICK CE
CE mark	Yes
China RoHS compliance	Out of scope
Communication built-in	MODBUS
Communication card option	LON RS485
Communication type	MODBUS Optional LON
Contains batteries	No
Controller type	Case Contr. Single Coil
Digital inputs (DI) [pc]	3 pc
Digital outputs (DO) [pc]	6 pc
Display on front	No
EEE category	5 small equipment (any external dimension < 50 cm)
EPD available	Yes
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(c) 7(a) 7(c)-I
Frequency [Hz]	50/60 Hz
Function	AKV, Pe, 5 Relays
Further information	12 pc without terminals
Identical product	084B4082
In scope of WEEE	Yes
Number of Evaporators max.	1 pc
Other RoHS documentation	EAEU RoHS
Packing format	Industrial pack
Power consumption [VA]	5 VA
Press. Transmitter support	RATIOMETRIC
Product features	CO2 compliant Pe Signal S2 Injection control
Quantity per packing format	12 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1) Lead monoxide (PbO, CAS no. 1317-36-8) Lead titanium zirconium oxide (CAS no. 12626-81-2) Bis(ALPHA,ALPHA-dimethylbenzyl) peroxide (CAS no. 80-43-3) Orange lead (lead tetroxide) (CAS no. 1314-41-6) 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol (CAS no. 119-47-1) 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol (CAS no. 79-94-7)
SCIP dossier no.	c43067a3-9294-49f8-9584-9828ad0e9778
SCIP dossier product name	Case controller
Sensor connection	Screw terminals
Supply voltage [V] AC [max]	230 V
Supply voltage [V] AC [min]	115 V
Temp. sensor support	NTC 5000 NTC10000 PTC 1000 Pt 1000
Valve output type	AKV

DATASHEET - PDF

Title

Size

Type

PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN

11 Mbytes
