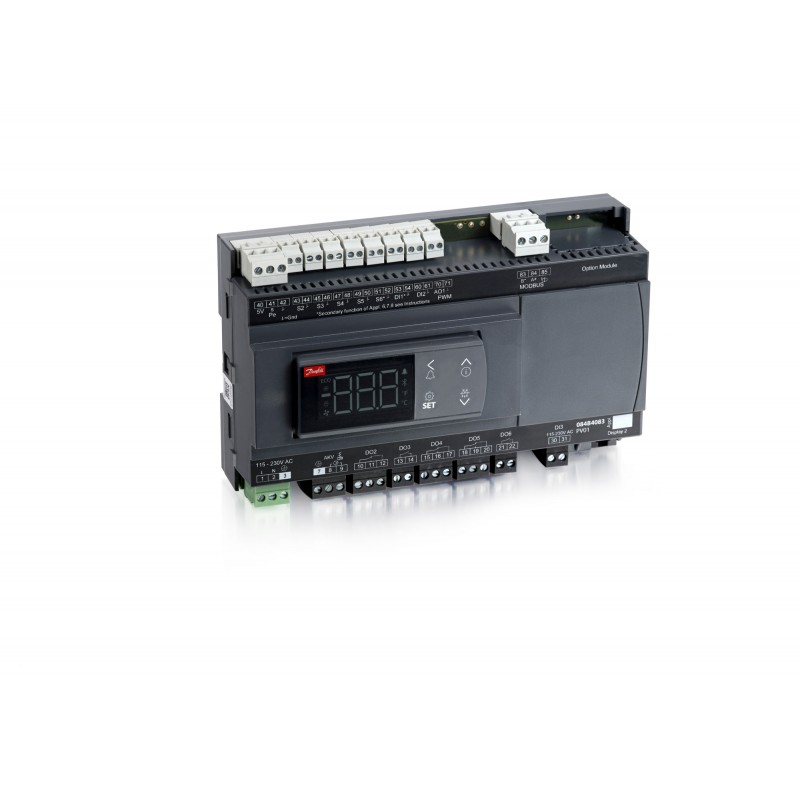

DANFOSS REFRIGERATION 084B4157 084B4157 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

084B4157 DANFOSS REFRIGERATION Case/room controller (EEV), AK-CC55 Single Coil UI

Name: 084B4157 DANFOSS REFRIGERATION Case/room controller (EEV), AK-CC55 Single Coil UI
Brand: DANFOSS REFRIGERATION
SKU: DAO084B4157
Price: 737.57 USD
Availability: OutOfStock

Reference: 084B4157

Manufacturer: DANFOSS REFRIGERATION

Description:

Case/room controller (EEV), AK-CC55 Single Coil UI

Categories:

DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

More Info
Reviews

Guarantee, repair and return.

Unit Price: 658,89 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 4-5 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

MORE INFO

Function: AKV, Pe, 5 Relays, Display, Product features: S2 Injection control; CO2 compliant; Pe Signal, Communication type: MODBUS, Packing format: Industrial pack, Quantity per packing format: 12

Product details

Gross weight	0.45 Kilogram
Net weight	0.35 Kilogram
Volume	1.122 Liter
EAN	5715162507988

Type	AK-CC55 Single Coil UI
Product group	Evaporator and room control
Product Name Description	Case/room controller (EEV)

Gross weight	0.45 Kilogram
Net weight	0.35 Kilogram
Volume	1.122 Liter
EAN	5715162507988
Type	AK-CC55 Single Coil UI
Product group	Evaporator and room control
Product Name Description	Case/room controller (EEV)

Analog inputs (AI) [pc]	6 pc
Analog outputs (AO) [pc]	1 pc
Application area	Refrigeration control
Approval	C-TICK CE
CE mark	Yes
China RoHS compliance	Out of scope
Communication built-in	MODBUS
Communication card option	LON RS485
Communication type	MODBUS
Contains batteries	No
Controller type	Case Contr. Single Coil w. Dis
Digital inputs (DI) [pc]	3 pc
Digital outputs (DO) [pc]	6 pc
Display on front	Yes
EEE category	5 small equipment (any external dimension < 50 cm)
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(c) 7(a) 7(c)-I
Frequency [Hz]	50/60 Hz
Function	AKV, Pe, 5 Relays, Display

Further information	12 pc without terminals
Identical product	084B4057
In scope of WEEE	Yes
Number of Evaporators max.	1 pc
Other RoHS documentation	EAEU RoHS
Packing format	Industrial pack
Power consumption [VA]	5 VA
Press. Transmitter support	RATIOMETRIC
Product features	CO2 compliant Pe Signal S2 Injection control
Quantity per packing format	12 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1) Lead monoxide (PbO, CAS no. 1317-36-8) Lead titanium zirconium oxide (CAS no. 12626-81-2) Bis(ALPHA,ALPHA-dimethylbenzyl) peroxide (CAS no. 80-43-3) Orange lead (lead tetroxide) (CAS no. 1314-41-6) 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol (CAS no. 119-47-1) 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol (CAS no. 79-94-7)
SCIP dossier no.	c43067a3-9294-49f8-9584-9828ad0e9778
SCIP dossier product name	Case controller
Sensor connection	Screw terminal
Supply voltage [V] AC [max]	230 V
Supply voltage [V] AC [min]	115 V
Temp. sensor support	NTC 5000 NTC10000 PTC 1000 Pt 1000
Valve output type	AKV

Analog inputs (AI) [pc]	6 pc
Analog outputs (AO) [pc]	1 pc
Application area	Refrigeration control
Approval	C-TICK CE
CE mark	Yes
China RoHS compliance	Out of scope
Communication built-in	MODBUS
Communication card option	LON RS485
Communication type	MODBUS
Contains batteries	No
Controller type	Case Contr. Single Coil w. Dis
Digital inputs (DI) [pc]	3 pc
Digital outputs (DO) [pc]	6 pc
Display on front	Yes
EEE category	5 small equipment (any external dimension < 50 cm)
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(c) 7(a) 7(c)-I
Frequency [Hz]	50/60 Hz
Function	AKV, Pe, 5 Relays, Display
Further information	12 pc without terminals
Identical product	084B4057
In scope of WEEE	Yes
Number of Evaporators max.	1 pc
Other RoHS documentation	EAEU RoHS
Packing format	Industrial pack
Power consumption [VA]	5 VA
Press. Transmitter support	RATIOMETRIC
Product features	CO2 compliant Pe Signal S2 Injection control
Quantity per packing format	12 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1) Lead monoxide (PbO, CAS no. 1317-36-8) Lead titanium zirconium oxide (CAS no. 12626-81-2) Bis(ALPHA,ALPHA-dimethylbenzyl) peroxide (CAS no. 80-43-3) Orange lead (lead tetroxide) (CAS no. 1314-41-6) 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol (CAS no. 119-47-1) 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol (CAS no. 79-94-7)
SCIP dossier no.	c43067a3-9294-49f8-9584-9828ad0e9778
SCIP dossier product name	Case controller
Sensor connection	Screw terminal
Supply voltage [V] AC [max]	230 V
Supply voltage [V] AC [min]	115 V
Temp. sensor support	NTC 5000 NTC10000 PTC 1000 Pt 1000
Valve output type	AKV
