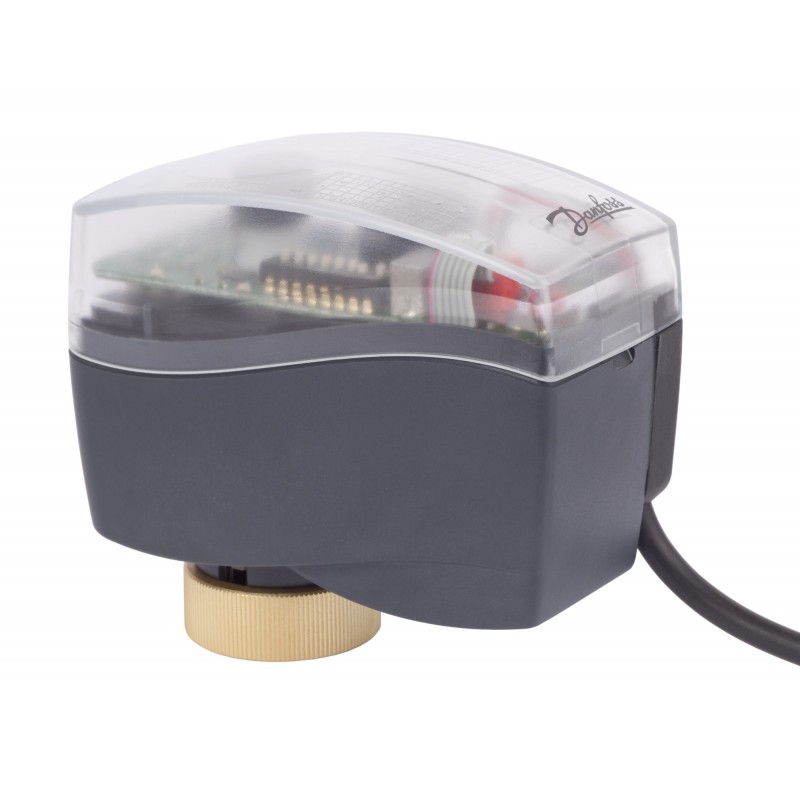

082H8067 DANFOSS REFRIGERATION AME 110 NL, 24 V, 5 mm, actuator for modulating control for AB-QM DN 10-32
082H8067
DANFOSS REFRIGERATION
AME 110 NL, 24 V, 5 mm, actuator for modulating control for AB-QM DN 10-32
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲AME 110 NL, 24 V, 5 mm, actuator for modulating control for AB-QM DN 10-32
Product details
| Gross weight | 0.4 Kilogram |
| Net weight | 0.336 Kilogram |
| Volume | 1.148 Liter |
| EAN | 5710104068343 |
| Type | AME 110 NL 0-10V |
| Product group | Gear actuators |
| Gross weight | 0.4 Kilogram |
| Net weight | 0.336 Kilogram |
| Volume | 1.148 Liter |
| EAN | 5710104068343 |
| Type | AME 110 NL 0-10V |
| Product group | Gear actuators |
| Approval standard | EC EN 60730 |
| Cable length [m] | 1.5 m |
| China RoHS compliance | Out of scope |
| Compatibility with valve | AB-QM DN 10-32 |
| Contains batteries | No |
| Control input signal Y [mA] | 0(4) - 20 mA |
| Control input signal Y [V] | 0(2) - 10 V |
| Control signal type | Modulating |
| Description | AME 110 NL, 24 V, 5 mm, actuator for modulating control for AB-QM DN 10-32 |
| IP protection class | IP42 |
| Spindle speed [s/mm] | 24 s/mm |
| Stroke [mm] | 5 mm |
| Supply voltage [V] AC | 24 V |
| Approval standard | EC EN 60730 |
| Cable length [m] | 1.5 m |
| China RoHS compliance | Out of scope |
| Compatibility with valve | AB-QM DN 10-32 |
| Contains batteries | No |
| Control input signal Y [mA] | 0(4) - 20 mA |
| Control input signal Y [V] | 0(2) - 10 V |
| Control signal type | Modulating |
| Description | AME 110 NL, 24 V, 5 mm, actuator for modulating control for AB-QM DN 10-32 |
| IP protection class | IP42 |
| Spindle speed [s/mm] | 24 s/mm |
| Stroke [mm] | 5 mm |
| Supply voltage [V] AC | 24 V |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
| 082H8067 082H8067 ES_082H8067.pdf | 832 Kbytes |
|
