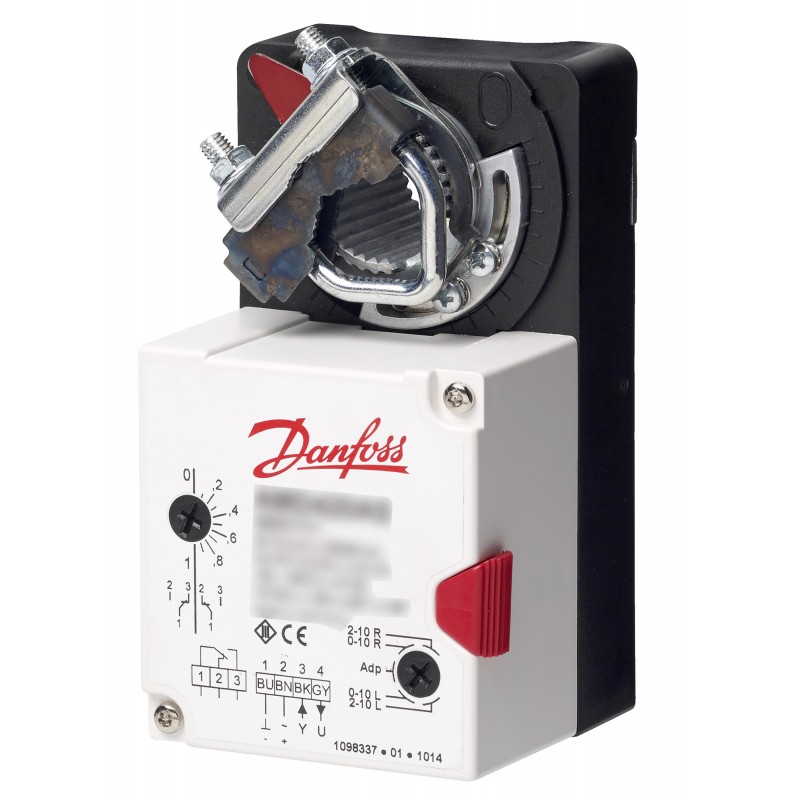

082H1104 DANFOSS REFRIGERATION Electrical actuators, AMD 220, 5 N-m, Modulating, 100 ", Supply voltage [V] A..
082H1104
DANFOSS REFRIGERATION
Electrical actuators, AMD 220, 5 N-m, Modulating, 100 ", Supply voltage [V] AC: 24
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲AMD 220 5Nm mod 100s 24V
Product details
| Gross weight | 0.57 Kilogram |
| Net weight | 0.53 Kilogram |
| Volume | 1.987 Liter |
| EAN | 5710104064468 |
| Type | AMD 220 |
| Product group | Electrical actuators |
| Gross weight | 0.57 Kilogram |
| Net weight | 0.53 Kilogram |
| Volume | 1.987 Liter |
| EAN | 5710104064468 |
| Type | AMD 220 |
| Product group | Electrical actuators |
| Actuator speed [s/°] | 100 s/° |
| Actuator type | Electrical |
| Ambient temperature [°C] [max] | 50 °C |
| Ambient temperature [°C] [min] | -30 °C |
| Application | HVAC dampers |
| Contains batteries | No |
| Control input signal Y [mA] | 0(4) - 20 mA |
| Control input signal Y [mA], impedance [Ohm] | 500 Ohm |
| Control input signal Y [V] | 0(2) - 10 V |
| Control input signal Y [V], impedance [kOhm] | 100 kOhm |
| Control signal type | Modulating |
| Description | AMD 220 5Nm mod 100s 24V |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Frequency [Hz] | 50/60 |
| Grade of enclosure | IP54 |
| Manual operation | Yes |
| Operating torque [Nm] | 5 N-m |
| Power consumption [W] | 2 W |
| Protection Class of the Coating | II |
| REACH Candidate List substances | No |
| Rotation angle [°] | 95 ° |
| Safety function | No |
| Speed type | Standard |
| Spring down (return) | No |
| Spring up | No |
| Storage temperature [°C] [Max] | 80 °C |
| Storage temperature [°C] [Min] | -30 °C |
| Supply voltage [V] AC | 24 V |
| Turn time per 90° [s] | 100 " |
| Actuator speed [s/°] | 100 s/° |
| Actuator type | Electrical |
| Ambient temperature [°C] [max] | 50 °C |
| Ambient temperature [°C] [min] | -30 °C |
| Application | HVAC dampers |
| Contains batteries | No |
| Control input signal Y [mA] | 0(4) - 20 mA |
| Control input signal Y [mA], impedance [Ohm] | 500 Ohm |
| Control input signal Y [V] | 0(2) - 10 V |
| Control input signal Y [V], impedance [kOhm] | 100 kOhm |
| Control signal type | Modulating |
| Description | AMD 220 5Nm mod 100s 24V |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Frequency [Hz] | 50/60 |
| Grade of enclosure | IP54 |
| Manual operation | Yes |
| Operating torque [Nm] | 5 N-m |
| Power consumption [W] | 2 W |
| Protection Class of the Coating | II |
| REACH Candidate List substances | No |
| Rotation angle [°] | 95 ° |
| Safety function | No |
| Speed type | Standard |
| Spring down (return) | No |
| Spring up | No |
| Storage temperature [°C] [Max] | 80 °C |
| Storage temperature [°C] [Min] | -30 °C |
| Supply voltage [V] AC | 24 V |
| Turn time per 90° [s] | 100 " |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
| 082H1104 082H1104 ES_082H1104.pdf | 776 Kbytes |
|
