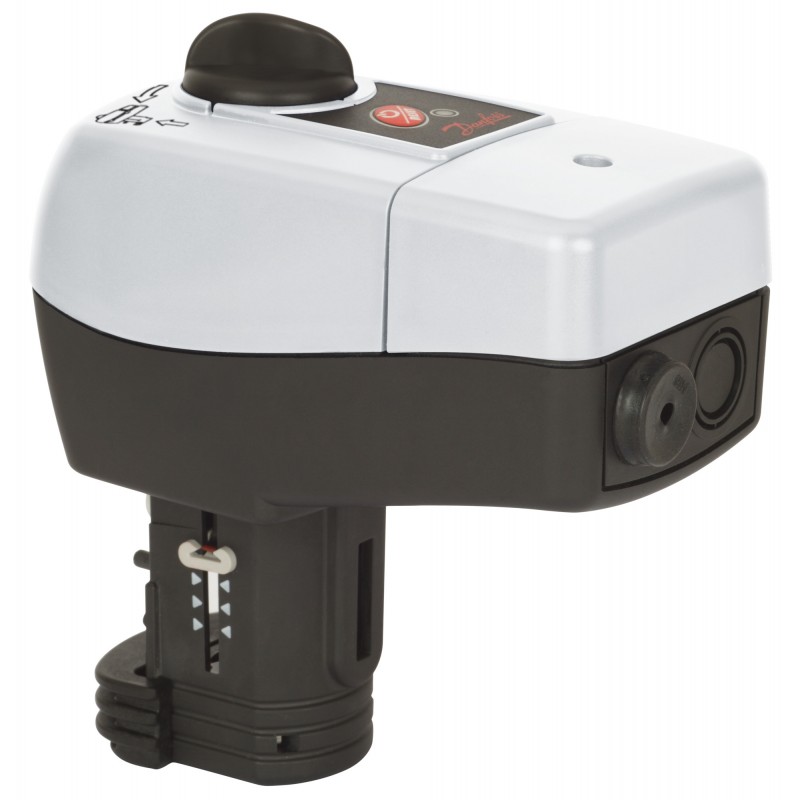

082H0162 DANFOSS REFRIGERATION AMV 435, Supply voltage [V] AC: 24, 20 mm
082H0162
DANFOSS REFRIGERATION
AMV 435, Supply voltage [V] AC: 24, 20 mm
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲AMV 435 24V 7,5-15s/mm 20mm 400N
Product details
| Gross weight | 0.708 Kilogram |
| Net weight | 0.582 Kilogram |
| Volume | 3.538 Liter |
| EAN | 5710104007007 |
| Type | AMV 435 |
| Product group | Gear actuators |
| Gross weight | 0.708 Kilogram |
| Net weight | 0.582 Kilogram |
| Volume | 3.538 Liter |
| EAN | 5710104007007 |
| Type | AMV 435 |
| Product group | Gear actuators |
| Actuator speed [s/mm] | 8 s/mm 15 s/mm |
| Actuator type | Electrical |
| Ambient temperature [°C] [max] | 55 °C |
| Ambient temperature [°C] [min] | 0 °C |
| Application | HVAC |
| Cable included | No |
| China RoHS compliance | Out of scope |
| Closing force [N] | 400 N |
| Compatibility with valve | AB-QM DN 40-100 VRG DN 15-50 VL DN 15-80 VF DN 15-80 VRB DN 15-50 |
| Contains batteries | No |
| Control signal type | 3-point |
| Description | AMV 435 24V 7,5-15s/mm 20mm 400N |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| IP protection class | IP54 |
| Manual operation | Yes |
| Position feedback | no |
| Power consumption [W] | 2 W |
| Protection Class of the Coating | II |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Safety function | No |
| SCIP dossier no. | 9d9ab398-66c2-4d1b-85a0-ec8a9efd3150 |
| SCIP dossier product name | AMV(E) 335 - 445 |
| Speed type | Standard |
| Spring down (return) | No |
| Spring up | No |
| Storage temperature [°C] [Max] | 70 °C |
| Storage temperature [°C] [Min] | -40 °C |
| Stroke [mm] | 20 mm |
| Supply voltage [V] AC | 24 V |
| Actuator speed [s/mm] | 8 s/mm 15 s/mm |
| Actuator type | Electrical |
| Ambient temperature [°C] [max] | 55 °C |
| Ambient temperature [°C] [min] | 0 °C |
| Application | HVAC |
| Cable included | No |
| China RoHS compliance | Out of scope |
| Closing force [N] | 400 N |
| Compatibility with valve | AB-QM DN 40-100 VRG DN 15-50 VL DN 15-80 VF DN 15-80 VRB DN 15-50 |
| Contains batteries | No |
| Control signal type | 3-point |
| Description | AMV 435 24V 7,5-15s/mm 20mm 400N |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| IP protection class | IP54 |
| Manual operation | Yes |
| Position feedback | no |
| Power consumption [W] | 2 W |
| Protection Class of the Coating | II |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Safety function | No |
| SCIP dossier no. | 9d9ab398-66c2-4d1b-85a0-ec8a9efd3150 |
| SCIP dossier product name | AMV(E) 335 - 445 |
| Speed type | Standard |
| Spring down (return) | No |
| Spring up | No |
| Storage temperature [°C] [Max] | 70 °C |
| Storage temperature [°C] [Min] | -40 °C |
| Stroke [mm] | 20 mm |
| Supply voltage [V] AC | 24 V |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
| 082H0162 082H0162 EN_082H0162.pdf | 680 Kbytes |
|
