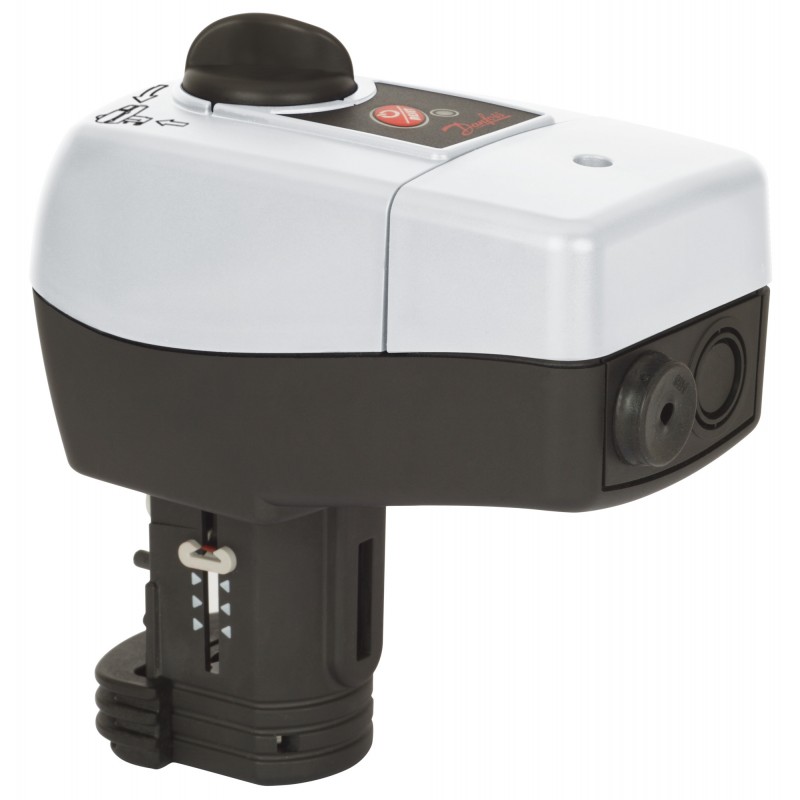

082H0053 DANFOSS REFRIGERATION AME 445, Supply voltage [V] AC: 24, 3 s/mm, 20 mm
082H0053
DANFOSS REFRIGERATION
AME 445, Supply voltage [V] AC: 24, 3 s/mm, 20 mm
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲AME 445 24V 3 s/mm 20mm 400N
Product details
| Gross weight | 0.702 Kilogram |
| Net weight | 0.582 Kilogram |
| Volume | 3.51 Liter |
| EAN | 5710104042879 |
| Type | AME 445 |
| Product group | Gear actuators |
| Gross weight | 0.702 Kilogram |
| Net weight | 0.582 Kilogram |
| Volume | 3.51 Liter |
| EAN | 5710104042879 |
| Type | AME 445 |
| Product group | Gear actuators |
| Actuator speed [s/mm] | 3 s/mm |
| Actuator type | Electrical |
| Ambient temperature [°C] [max] | 55 °C |
| Ambient temperature [°C] [min] | 0 °C |
| Application | HVAC |
| China RoHS compliance | Out of scope |
| Closing force [N] | 400 N |
| Contains batteries | No |
| Control input signal Y [mA] | 0(4) - 20 mA |
| Control input signal Y [mA], impedance [Ohm] | 500 Ohm |
| Control input signal Y [V] | 0(2) - 10 V |
| Control input signal Y [V], impedance [kOhm] | 95 kOhm |
| Control signal type | Modulating |
| Description | AME 445 24V 3 s/mm 20mm 400N |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| IP protection class | IP54 |
| Position feedback | yes |
| Protection Class of the Coating | II |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Safety function | No |
| SCIP dossier no. | 9d9ab398-66c2-4d1b-85a0-ec8a9efd3150 |
| SCIP dossier product name | AMV(E) 335 - 445 |
| Speed type | Fast |
| Spindle speed [s/mm] | 3 s/mm |
| Spring down (return) | No |
| Spring up | No |
| Storage temperature [°C] [Max] | 70 °C |
| Storage temperature [°C] [Min] | -40 °C |
| Stroke [mm] | 20 mm |
| Supply voltage [V] AC | 24 V |
| Actuator speed [s/mm] | 3 s/mm |
| Actuator type | Electrical |
| Ambient temperature [°C] [max] | 55 °C |
| Ambient temperature [°C] [min] | 0 °C |
| Application | HVAC |
| China RoHS compliance | Out of scope |
| Closing force [N] | 400 N |
| Contains batteries | No |
| Control input signal Y [mA] | 0(4) - 20 mA |
| Control input signal Y [mA], impedance [Ohm] | 500 Ohm |
| Control input signal Y [V] | 0(2) - 10 V |
| Control input signal Y [V], impedance [kOhm] | 95 kOhm |
| Control signal type | Modulating |
| Description | AME 445 24V 3 s/mm 20mm 400N |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| IP protection class | IP54 |
| Position feedback | yes |
| Protection Class of the Coating | II |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Safety function | No |
| SCIP dossier no. | 9d9ab398-66c2-4d1b-85a0-ec8a9efd3150 |
| SCIP dossier product name | AMV(E) 335 - 445 |
| Speed type | Fast |
| Spindle speed [s/mm] | 3 s/mm |
| Spring down (return) | No |
| Spring up | No |
| Storage temperature [°C] [Max] | 70 °C |
| Storage temperature [°C] [Min] | -40 °C |
| Stroke [mm] | 20 mm |
| Supply voltage [V] AC | 24 V |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
| 082H0053 082H0053 ES_065Z0313.pdf | 906 Kbytes |
|
