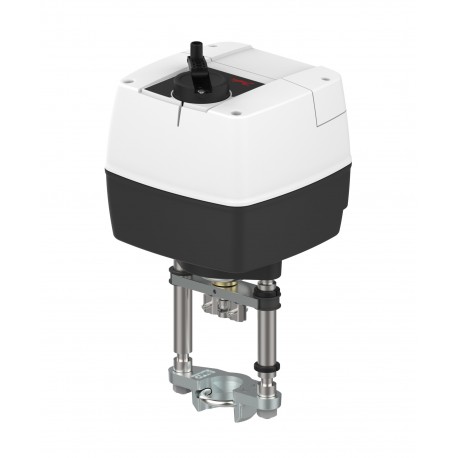

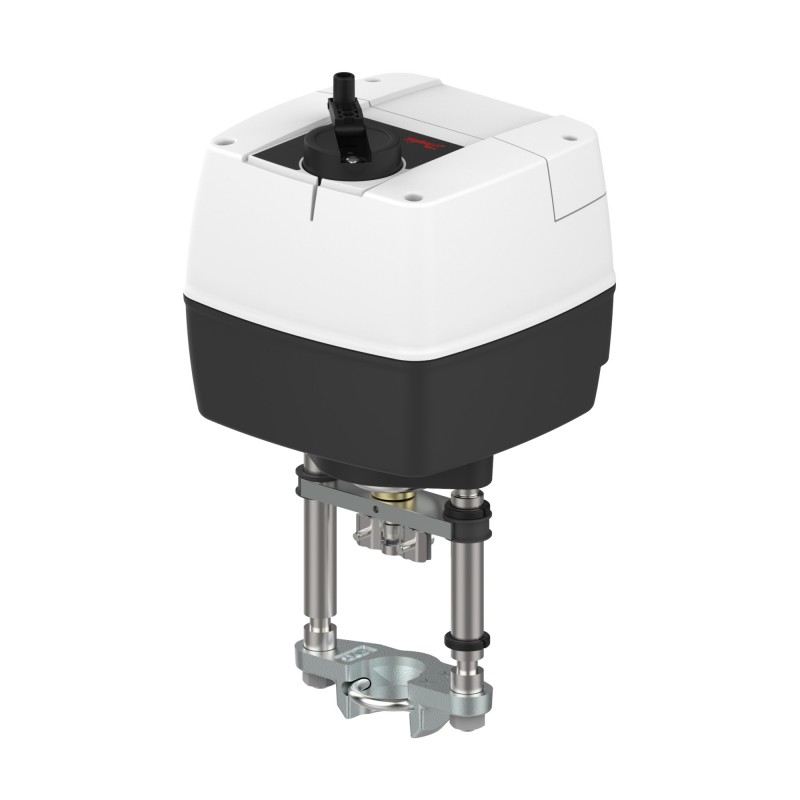

082G3444 DANFOSS REFRIGERATION Electrical actuators, AMV 658 SD, Supply voltage [V] AC: 24

Reference: 082G3444

Manufacturer: DANFOSS REFRIGERATION

Description:

Electrical actuators, AMV 658 SD, Supply voltage [V] AC: 24

Categories:

  • DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 1.867,29 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 4-5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

AMV 658 SD 24V

Product details

Gross weight9.65 Kilogram
Net weight9.65 Kilogram
Volume18.743 Liter
EAN5710104037318
TypeAMV 658 SD
Product groupElectrical actuators
Gross weight9.65 Kilogram
Net weight9.65 Kilogram
Volume18.743 Liter
EAN5710104037318
TypeAMV 658 SD
Product groupElectrical actuators

Actuator speed [s/mm]2 s/mm
6 s/mm
Actuator typeElectrical
Ambient temperature [°C] [max]55 °C
Ambient temperature [°C] [min]0 °C
ApplicationHD District Heating
Closing force [N]2000 N
Contains batteriesNo
Control signal type3-point
DescriptionAMV 658 SD 24V
EU RoHS complianceYes with exemptions
EU RoHS exemption clause6(c)
Grade of enclosureIP54
Manual operationYes
Position feedbackno - potentiometer needed
Power consumption [W]19 W
Protection Class of the CoatingII
REACH Candidate List substancesLead (CAS no. 7439-92-1)
Safety functionYes
SCIP dossier no.1383b0ac-9597-4acd-8949-becd4eb06779
SCIP dossier product nameAMV(E) 65x/685/855_1
Speed typeStandard
Spring down (return)Yes
Spring upNo
Storage temperature [°C] [Max]70 °C
Storage temperature [°C] [Min]-40 °C
Stroke [mm]50 mm
Supply voltage [V] AC24 V
Actuator speed [s/mm]2 s/mm
6 s/mm
Actuator typeElectrical
Ambient temperature [°C] [max]55 °C
Ambient temperature [°C] [min]0 °C
ApplicationHD District Heating
Closing force [N]2000 N
Contains batteriesNo
Control signal type3-point
DescriptionAMV 658 SD 24V
EU RoHS complianceYes with exemptions
EU RoHS exemption clause6(c)
Grade of enclosureIP54
Manual operationYes
Position feedbackno - potentiometer needed
Power consumption [W]19 W
Protection Class of the CoatingII
REACH Candidate List substancesLead (CAS no. 7439-92-1)
Safety functionYes
SCIP dossier no.1383b0ac-9597-4acd-8949-becd4eb06779
SCIP dossier product nameAMV(E) 65x/685/855_1
Speed typeStandard
Spring down (return)Yes
Spring upNo
Storage temperature [°C] [Max]70 °C
Storage temperature [°C] [Min]-40 °C
Stroke [mm]50 mm
Supply voltage [V] AC24 V
