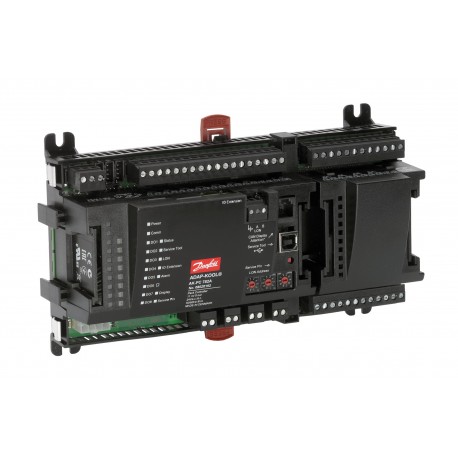

080Z0192 DANFOSS REFRIGERATION Pack controller
080Z0192
DANFOSS REFRIGERATION
Pack controller
AK-PC 782A, Pack Controller
Pack controller, AK-PC 782A
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Function: Transcritical Booster, Supply voltage [V] AC: 24, Communication type: RJ11 (CAN) to Display; RS232; LON RS485; USB-B to PC, Packing format: Single pack, Quantity per packing format: 1
Product details
| Gross weight | 0.964 Kilogram |
| Net weight | 0.645 Kilogram |
| Volume | 6.248 Liter |
| EAN | 5702428946797 |
| Type | AK-PC 782A |
| Product group | Compressor/condenser control |
| Product Name Description | Pack controller |
| Gross weight | 0.964 Kilogram |
| Net weight | 0.645 Kilogram |
| Volume | 6.248 Liter |
| EAN | 5702428946797 |
| Type | AK-PC 782A |
| Product group | Compressor/condenser control |
| Product Name Description | Pack controller |
| Addit. thermostats inputs max. | 5 pc |
| Addit.press.switche inputs max | 5 pc |
| Additional alarm inputs max. | 10 pc |
| Additional analog inputs max. | 5 pc |
| Additional PI Controls max. | 3 pc |
| Analog inputs (AI) [pc] | 11 pc |
| Application area | Capacity control |
| Approval | C-TICK CE EAC LLC CDC TYSK cURus |
| Capacity control input | Pressure |
| Capacity control mode | PI |
| CE mark | Yes |
| China RoHS compliance | Out of scope |
| Communication type | LON RS485 RJ11 (CAN) to Display RS232 USB-B to PC |
| Compressor capacity mode | Step/ Speed |
| Condenser control type | Temperature |
| Contains batteries | No |
| Controller type | Pack Controller |
| Digital outputs (DO) [pc] | 8 pc |
| Display - option | EKA 163B EKA 164B MMIGRS2 |
| Display on front | No |
| Division | 25 |
| EU RoHS compliance | Out of scope |
| Fan capacity control | Step/ Speed |
| Fan control mode | PI |
| Frequency [Hz] | 50/60 Hz |
| Function | Transcritical Booster |
| Further information | Transcri.,Speed,CO2,HP,Oil,HR |
| I/O connectors max. | 160 pc |
| No.of compr. safty signals max | 6 pc |
| No.of extention modules max. | 11 pc |
| Number of Compressors max. | 8 pc |
| Number of fans max. | 8 pc |
| Oil management | Yes, w. CO2 |
| Other RoHS documentation | EAEU RoHS |
| Packing format | Single pack |
| PFAS content [Yes/No] | No |
| Power consumption [VA] | 8 VA |
| Product accessories | Electron. control accessories |
| Product features | CO2 compliant External comm. included Floating condenser pressure Heat recovery function Load shedding Night setback P0 optimization Pump control Three way valve control |
| Product Language | Czech Danish Dutch English Finnish French German Italian Polish Portuguese Russian Spanish |
| Programming tools | AK-ST 500 |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) Lead monoxide (PbO, CAS no. 1317-36-8) Lead titanium zirconium oxide (CAS no. 12626-81-2) Orange lead (lead tetroxide) (CAS no. 1314-41-6) Diboron trioxide (B2O3, CAS no. 1303-86-2) 1, 2-dimethoxyethane, ethylene glycol dimethyl ether (EGDME) (CAS no. 110-71-4) 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol (CAS no. 79-94-7) 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol (CAS no. 119-47-1) |
| SCIP dossier no. | 199e3317-c1b9-4d48-94a0-45825c46791f |
| SCIP dossier product name | AK-PC-7XX-651A-351 |
| Serviceable | No |
| Supply voltage [V] AC | 24 V |
| Supply voltage [V] DC | 24 V |
| UL mark | Yes |
| Addit. thermostats inputs max. | 5 pc |
| Addit.press.switche inputs max | 5 pc |
| Additional alarm inputs max. | 10 pc |
| Additional analog inputs max. | 5 pc |
| Additional PI Controls max. | 3 pc |
| Analog inputs (AI) [pc] | 11 pc |
| Application area | Capacity control |
| Approval | C-TICK CE EAC LLC CDC TYSK cURus |
| Capacity control input | Pressure |
| Capacity control mode | PI |
| CE mark | Yes |
| China RoHS compliance | Out of scope |
| Communication type | LON RS485 RJ11 (CAN) to Display RS232 USB-B to PC |
| Compressor capacity mode | Step/ Speed |
| Condenser control type | Temperature |
| Contains batteries | No |
| Controller type | Pack Controller |
| Digital outputs (DO) [pc] | 8 pc |
| Display - option | EKA 163B EKA 164B MMIGRS2 |
| Display on front | No |
| Division | 25 |
| EU RoHS compliance | Out of scope |
| Fan capacity control | Step/ Speed |
| Fan control mode | PI |
| Frequency [Hz] | 50/60 Hz |
| Function | Transcritical Booster |
| Further information | Transcri.,Speed,CO2,HP,Oil,HR |
| I/O connectors max. | 160 pc |
| No.of compr. safty signals max | 6 pc |
| No.of extention modules max. | 11 pc |
| Number of Compressors max. | 8 pc |
| Number of fans max. | 8 pc |
| Oil management | Yes, w. CO2 |
| Other RoHS documentation | EAEU RoHS |
| Packing format | Single pack |
| PFAS content [Yes/No] | No |
| Power consumption [VA] | 8 VA |
| Product accessories | Electron. control accessories |
| Product features | CO2 compliant External comm. included Floating condenser pressure Heat recovery function Load shedding Night setback P0 optimization Pump control Three way valve control |
| Product Language | Czech Danish Dutch English Finnish French German Italian Polish Portuguese Russian Spanish |
| Programming tools | AK-ST 500 |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) Lead monoxide (PbO, CAS no. 1317-36-8) Lead titanium zirconium oxide (CAS no. 12626-81-2) Orange lead (lead tetroxide) (CAS no. 1314-41-6) Diboron trioxide (B2O3, CAS no. 1303-86-2) 1, 2-dimethoxyethane, ethylene glycol dimethyl ether (EGDME) (CAS no. 110-71-4) 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol (CAS no. 79-94-7) 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol (CAS no. 119-47-1) |
| SCIP dossier no. | 199e3317-c1b9-4d48-94a0-45825c46791f |
| SCIP dossier product name | AK-PC-7XX-651A-351 |
| Serviceable | No |
| Supply voltage [V] AC | 24 V |
| Supply voltage [V] DC | 24 V |
| UL mark | Yes |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
