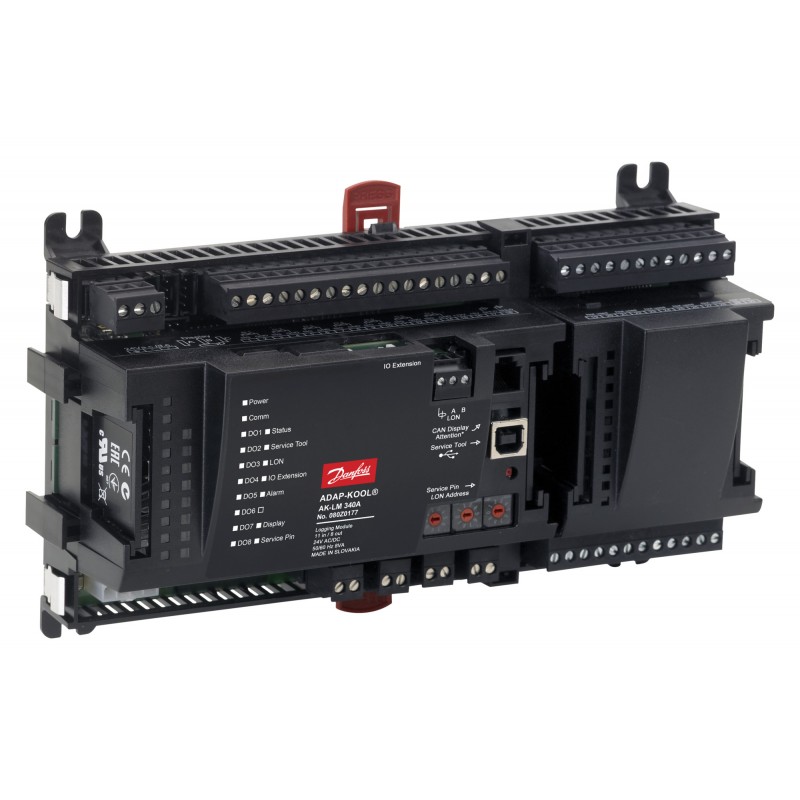

080Z0177 DANFOSS REFRIGERATION AK-LM 340A, Controller, Multipurpose
080Z0177
DANFOSS REFRIGERATION
AK-LM 340A, Controller, Multipurpose
Monitoring unit, AK-LM 340A
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Controller type: Multipurpose controller, Application area: Monitoring, Communication type: IO Extension; LON RS485; USB-B to PC
Product details
| Gross weight | 0.947 Kilogram |
| Net weight | 0.645 Kilogram |
| Volume | 6.248 Liter |
| EAN | 5702428559225 |
| Type | AK-LM 340A |
| Product group | Supervisory solutions |
| Product Name Description | Monitoring unit |
| Gross weight | 0.947 Kilogram |
| Net weight | 0.645 Kilogram |
| Volume | 6.248 Liter |
| EAN | 5702428559225 |
| Type | AK-LM 340A |
| Product group | Supervisory solutions |
| Product Name Description | Monitoring unit |
| Analog inputs (AI) [pc] | 11 pc |
| Application area | Monitoring |
| Approval | C-TICK CE EAC LLC CDC TYSK |
| CE mark | Yes |
| China RoHS compliance | Out of scope |
| Communication type | IO Extension LON RS485 USB-B to PC |
| Contains batteries | No |
| Controller type | Multipurpose controller |
| Digital outputs (DO) [pc] | 8 pc |
| Display - option | EKA 163B EKA 164B |
| Display on front | No |
| Division | 25 |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| EU RoHS compliance | Out of scope |
| Frequency [Hz] | 50/60 Hz |
| Function | Monitoring w. PI regulation |
| In scope of WEEE | Yes |
| Other RoHS documentation | EAEU RoHS |
| Packing format | Single pack |
| PFAS content [Yes/No] | No |
| Power consumption [VA] | 8 VA |
| Product accessories | Electron. control accessories |
| Product features | Separate PI regulations Separate control functions |
| Product Language | Chinese Czech Danish Dutch English French German Italian Polish Portuguese Russian Spanish |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | No |
| Serviceable | No |
| Supply voltage [V] AC | 24 V |
| Supply voltage [V] DC | 24 V |
| Analog inputs (AI) [pc] | 11 pc |
| Application area | Monitoring |
| Approval | C-TICK CE EAC LLC CDC TYSK |
| CE mark | Yes |
| China RoHS compliance | Out of scope |
| Communication type | IO Extension LON RS485 USB-B to PC |
| Contains batteries | No |
| Controller type | Multipurpose controller |
| Digital outputs (DO) [pc] | 8 pc |
| Display - option | EKA 163B EKA 164B |
| Display on front | No |
| Division | 25 |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| EU RoHS compliance | Out of scope |
| Frequency [Hz] | 50/60 Hz |
| Function | Monitoring w. PI regulation |
| In scope of WEEE | Yes |
| Other RoHS documentation | EAEU RoHS |
| Packing format | Single pack |
| PFAS content [Yes/No] | No |
| Power consumption [VA] | 8 VA |
| Product accessories | Electron. control accessories |
| Product features | Separate PI regulations Separate control functions |
| Product Language | Chinese Czech Danish Dutch English French German Italian Polish Portuguese Russian Spanish |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | No |
| Serviceable | No |
| Supply voltage [V] AC | 24 V |
| Supply voltage [V] DC | 24 V |
Datasheet - PDF
