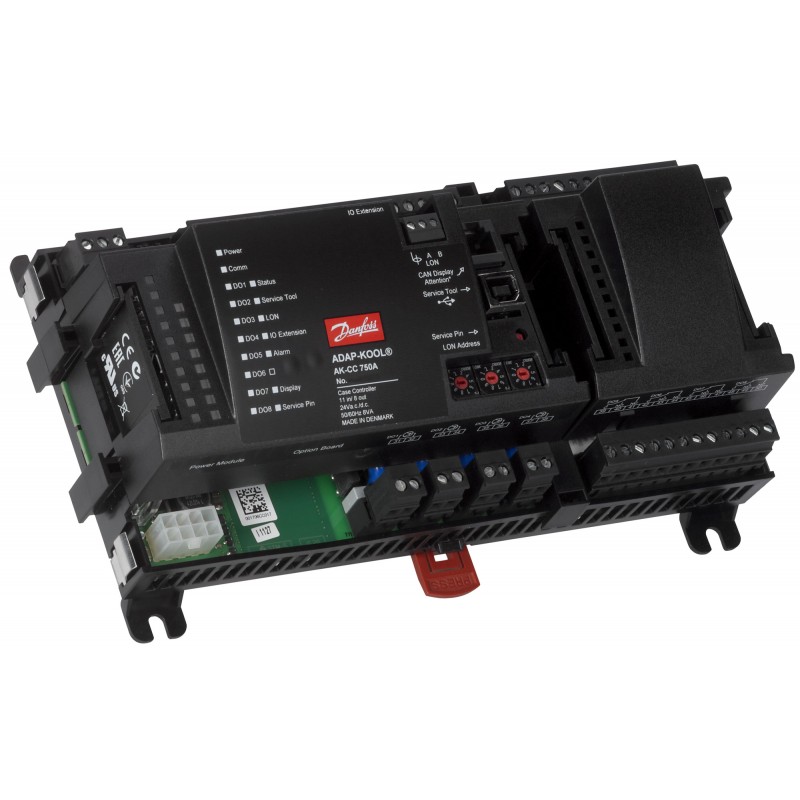

080Z0139 DANFOSS REFRIGERATION Case/room controller (EEV), AK-CC 750
080Z0139
DANFOSS REFRIGERATION
Case/room controller (EEV), AK-CC 750
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Function: 1-4 AKV(EEV), Flexible I/O, Supply voltage [V] AC: 24, Communication type: LON RS485, Packing format: Single pack, Quantity per packing format: 1
Product details
| Gross weight | 0.932 Kilogram |
| Net weight | 0.645 Kilogram |
| Volume | 6.248 Liter |
| EAN | 5702428901314 |
| Type | AK-CC 750 |
| Product group | Evaporator and room control |
| Product Name Description | Case/room controller (EEV) |
| Gross weight | 0.932 Kilogram |
| Net weight | 0.645 Kilogram |
| Volume | 6.248 Liter |
| EAN | 5702428901314 |
| Type | AK-CC 750 |
| Product group | Evaporator and room control |
| Product Name Description | Case/room controller (EEV) |
| Analog inputs (AI) [pc] | 11 pc |
| Application area | Refrigeration control |
| Approval | CE cURus |
| CE mark | Yes |
| China RoHS compliance | Out of scope |
| Communication type | LON RS485 |
| Contains batteries | No |
| Controller type | Case/Room controller (4 AKV) |
| Digital outputs (DO) [pc] | 8 pc |
| Display - option | EKA 163A EKA 164B |
| Display on front | No |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) 7(a) 7(c)-I |
| Frequency [Hz] | 50/60 Hz |
| Function | 1-4 AKV(EEV), Flexible I/O |
| Further information | °F/ PSI |
| Number of Evaporators max. | 4 pc |
| Other RoHS documentation | EAEU RoHS |
| Packing format | Single pack |
| Press. Transmitter support | 1-5 V RATIOMETRIC |
| Product accessories | Electron. control accessories |
| Product Language | American |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) Lead monoxide (PbO, CAS no. 1317-36-8) Lead titanium zirconium oxide (CAS no. 12626-81-2) Bis(ALPHA,ALPHA-dimethylbenzyl) peroxide (CAS no. 80-43-3) Orange lead (lead tetroxide) (CAS no. 1314-41-6) 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol (CAS no. 119-47-1) 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol (CAS no. 79-94-7) |
| SCIP dossier no. | c43067a3-9294-49f8-9584-9828ad0e9778 |
| SCIP dossier product name | Case controller |
| Sensor connection | SCREW TERMINAL |
| Serviceable | No |
| Supply voltage [V] AC | 24 V |
| Supply voltage [V] DC | 24 V |
| Temp. sensor support | PTC 1000 Pt 1000 |
| UL mark | Yes |
| Valve output type | AKV (EEV) |
| Analog inputs (AI) [pc] | 11 pc |
| Application area | Refrigeration control |
| Approval | CE cURus |
| CE mark | Yes |
| China RoHS compliance | Out of scope |
| Communication type | LON RS485 |
| Contains batteries | No |
| Controller type | Case/Room controller (4 AKV) |
| Digital outputs (DO) [pc] | 8 pc |
| Display - option | EKA 163A EKA 164B |
| Display on front | No |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) 7(a) 7(c)-I |
| Frequency [Hz] | 50/60 Hz |
| Function | 1-4 AKV(EEV), Flexible I/O |
| Further information | °F/ PSI |
| Number of Evaporators max. | 4 pc |
| Other RoHS documentation | EAEU RoHS |
| Packing format | Single pack |
| Press. Transmitter support | 1-5 V RATIOMETRIC |
| Product accessories | Electron. control accessories |
| Product Language | American |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) Lead monoxide (PbO, CAS no. 1317-36-8) Lead titanium zirconium oxide (CAS no. 12626-81-2) Bis(ALPHA,ALPHA-dimethylbenzyl) peroxide (CAS no. 80-43-3) Orange lead (lead tetroxide) (CAS no. 1314-41-6) 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol (CAS no. 119-47-1) 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol (CAS no. 79-94-7) |
| SCIP dossier no. | c43067a3-9294-49f8-9584-9828ad0e9778 |
| SCIP dossier product name | Case controller |
| Sensor connection | SCREW TERMINAL |
| Serviceable | No |
| Supply voltage [V] AC | 24 V |
| Supply voltage [V] DC | 24 V |
| Temp. sensor support | PTC 1000 Pt 1000 |
| UL mark | Yes |
| Valve output type | AKV (EEV) |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
