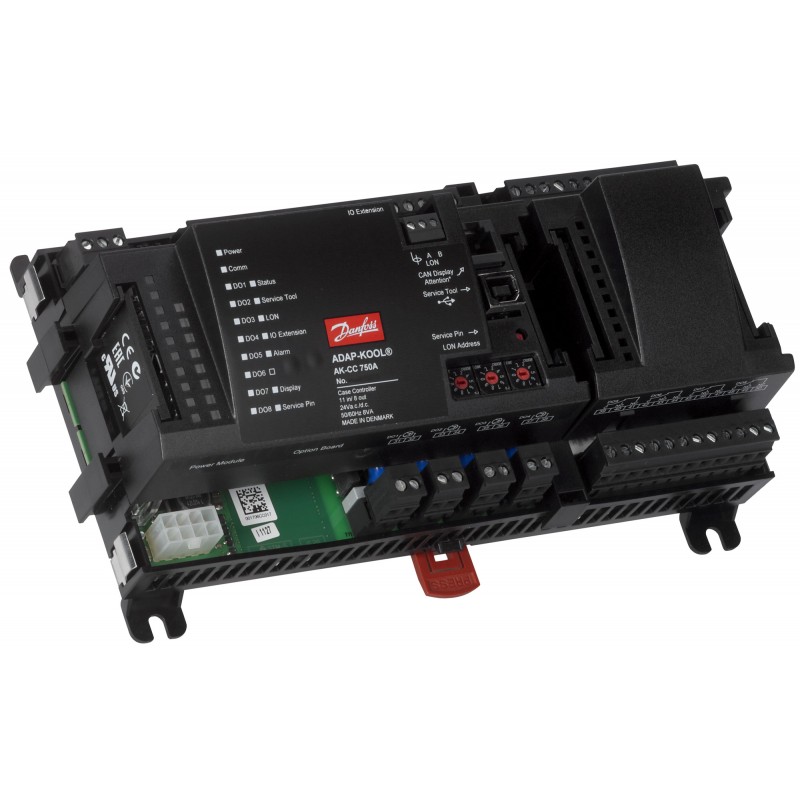

DANFOSS REFRIGERATION 080Z0130 080Z0130 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

080Z0130 DANFOSS REFRIGERATION Case/room controller (EEV)

Name: 080Z0130 DANFOSS REFRIGERATION Case/room controller (EEV)
Brand: DANFOSS REFRIGERATION
SKU: DAO080Z0130
Price: 1383.57 USD
Availability: OutOfStock

Reference: 080Z0130

Manufacturer: DANFOSS REFRIGERATION

Description:

Case/room controller (EEV)

Case/room controller (EEV), AK-CC 750

Categories:

DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

More Info
Reviews

Guarantee, repair and return.

Unit Price: 1.235,97 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 4-5 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

MORE INFO

Function: 1-4 AKV(EEV), Flexible I/O, Supply voltage [V] AC: 24, Communication type: LON TP78, Packing format: Single pack, Quantity per packing format: 1

Product details

Gross weight	0.938 Kilogram
Net weight	0.645 Kilogram
Volume	6.248 Liter
EAN	5702423287055

Type	AK-CC 750
Product group	Evaporator and room control
Product Name Description	Case/room controller (EEV)

Gross weight	0.938 Kilogram
Net weight	0.645 Kilogram
Volume	6.248 Liter
EAN	5702423287055
Type	AK-CC 750
Product group	Evaporator and room control
Product Name Description	Case/room controller (EEV)

Analog inputs (AI) [pc]	11 pc
Application area	Refrigeration control
Approval	C-TICK CE cURus
CE mark	Yes
China RoHS compliance	Out of scope
Communication type	LON TP78
Contains batteries	No
Controller type	Case/Room controller (4 AKV)
Digital outputs (DO) [pc]	8 pc
Display - option	EKA 163B EKA 164B
Display on front	No
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(c) 7(a) 7(c)-I
Frequency [Hz]	50/60 Hz
Function	1-4 AKV(EEV), Flexible I/O
Further information	°F/ PSI
Number of Evaporators max.	4 pc
Other RoHS documentation	EAEU RoHS

Output voltage [V] AC	230 V
Packing format	Single pack
Power consumption [VA]	8 VA
Press. Transmitter support	1-5 V RATIOMETRIC
Product accessories	Electron. control accessories
Product Language	American
Quantity per packing format	1 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1) Lead monoxide (PbO, CAS no. 1317-36-8) Lead titanium zirconium oxide (CAS no. 12626-81-2) Bis(ALPHA,ALPHA-dimethylbenzyl) peroxide (CAS no. 80-43-3) Orange lead (lead tetroxide) (CAS no. 1314-41-6) 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol (CAS no. 119-47-1) 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol (CAS no. 79-94-7)
SCIP dossier no.	c43067a3-9294-49f8-9584-9828ad0e9778
SCIP dossier product name	Case controller
Sensor connection	Screw terminal
Serviceable	No
Supply voltage [V] AC	24 V
Supply voltage [V] DC	24 V
Temp. sensor support	PTC 1000 Pt 1000
UL mark	Yes
Valve output type	AKV (EEV) LLSV (TXV)

Analog inputs (AI) [pc]	11 pc
Application area	Refrigeration control
Approval	C-TICK CE cURus
CE mark	Yes
China RoHS compliance	Out of scope
Communication type	LON TP78
Contains batteries	No
Controller type	Case/Room controller (4 AKV)
Digital outputs (DO) [pc]	8 pc
Display - option	EKA 163B EKA 164B
Display on front	No
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(c) 7(a) 7(c)-I
Frequency [Hz]	50/60 Hz
Function	1-4 AKV(EEV), Flexible I/O
Further information	°F/ PSI
Number of Evaporators max.	4 pc
Other RoHS documentation	EAEU RoHS
Output voltage [V] AC	230 V
Packing format	Single pack
Power consumption [VA]	8 VA
Press. Transmitter support	1-5 V RATIOMETRIC
Product accessories	Electron. control accessories
Product Language	American
Quantity per packing format	1 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1) Lead monoxide (PbO, CAS no. 1317-36-8) Lead titanium zirconium oxide (CAS no. 12626-81-2) Bis(ALPHA,ALPHA-dimethylbenzyl) peroxide (CAS no. 80-43-3) Orange lead (lead tetroxide) (CAS no. 1314-41-6) 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol (CAS no. 119-47-1) 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol (CAS no. 79-94-7)
SCIP dossier no.	c43067a3-9294-49f8-9584-9828ad0e9778
SCIP dossier product name	Case controller
Sensor connection	Screw terminal
Serviceable	No
Supply voltage [V] AC	24 V
Supply voltage [V] DC	24 V
Temp. sensor support	PTC 1000 Pt 1000
UL mark	Yes
Valve output type	AKV (EEV) LLSV (TXV)

DATASHEET - PDF

Title

Size

Type

PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN

11 Mbytes
