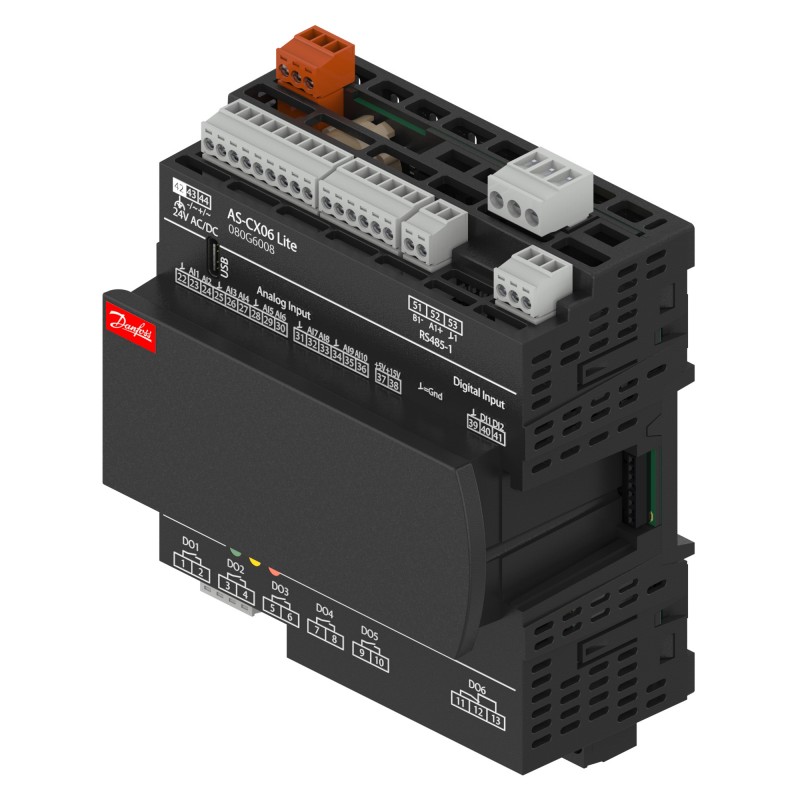

080G6008 DANFOSS REFRIGERATION Program. controller, 6 relays, AS-CX06 Lite
080G6008
DANFOSS REFRIGERATION
Program. controller, 6 relays, AS-CX06 Lite
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Function: Programmable Controller, Supply voltage [V] AC: 24, Communication type: 1xRS485; USB-C; RJ11 (CAN) to User Interface; CAN-FD, Digital inputs (DI) [pc]: 12, Analog inputs (AI) [pc]: 10, Digital outputs (DO) [pc]: 6, Analog outputs (AO) [pc]: 3, Packing format: Single pack
Product details
| Gross weight | 0.409 Kilogram |
| Net weight | 0.345 Kilogram |
| Volume | 1.315 Liter |
| EAN | 5715162703311 |
| Type | AS-CX06 |
| Product group | Programmable controllers |
| Product Name Description | Program. controller, 6 relays |
| Gross weight | 0.409 Kilogram |
| Net weight | 0.345 Kilogram |
| Volume | 1.315 Liter |
| EAN | 5715162703311 |
| Type | AS-CX06 |
| Product group | Programmable controllers |
| Product Name Description | Program. controller, 6 relays |
| Analog inputs (AI) [pc] | 10 pc |
| Analog outputs (AO) [pc] | 3 pc |
| Application area | Programmable controller |
| Buzzer | No |
| CE mark | Yes |
| China RoHS compliance | Yes with exemptions |
| Communication type | 1xRS485 CAN-FD RJ11 (CAN) to User Interface USB-C |
| Connector kit Code No. | 080G6023 |
| Connector kit included | Yes |
| Contains batteries | No |
| Digital inputs (DI) [pc] | 12 pc |
| Digital outputs (DO) [pc] | 6 pc |
| Display type | Without display |
| Enclosure rating IP | IP20 |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) 7(a) 7(c)-I |
| Frequency [Hz] | 50/60 Hz |
| Function | Programmable Controller |
| Mounting method | DIN rail |
| Packing format | Single pack |
| Power consumption [W] | 30 W |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) Lead titanium trioxide (CAS no. 12060-00-3) |
| Real time clock | Yes |
| SCIP dossier no. | a6e73266-ea69-4ddb-b924-d68a0803110b |
| SCIP dossier product name | ALSMART SCIP-1 |
| Serviceable | No |
| Supply voltage [V] AC | 24 V |
| Supply voltage [V] DC [max] | 60 V |
| Supply voltage [V] DC [min] | 24 V |
| Type designation | AS-CX06 Lite |
| UL mark | Yes |
| Analog inputs (AI) [pc] | 10 pc |
| Analog outputs (AO) [pc] | 3 pc |
| Application area | Programmable controller |
| Buzzer | No |
| CE mark | Yes |
| China RoHS compliance | Yes with exemptions |
| Communication type | 1xRS485 CAN-FD RJ11 (CAN) to User Interface USB-C |
| Connector kit Code No. | 080G6023 |
| Connector kit included | Yes |
| Contains batteries | No |
| Digital inputs (DI) [pc] | 12 pc |
| Digital outputs (DO) [pc] | 6 pc |
| Display type | Without display |
| Enclosure rating IP | IP20 |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) 7(a) 7(c)-I |
| Frequency [Hz] | 50/60 Hz |
| Function | Programmable Controller |
| Mounting method | DIN rail |
| Packing format | Single pack |
| Power consumption [W] | 30 W |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) Lead titanium trioxide (CAS no. 12060-00-3) |
| Real time clock | Yes |
| SCIP dossier no. | a6e73266-ea69-4ddb-b924-d68a0803110b |
| SCIP dossier product name | ALSMART SCIP-1 |
| Serviceable | No |
| Supply voltage [V] AC | 24 V |
| Supply voltage [V] DC [max] | 60 V |
| Supply voltage [V] DC [min] | 24 V |
| Type designation | AS-CX06 Lite |
| UL mark | Yes |
