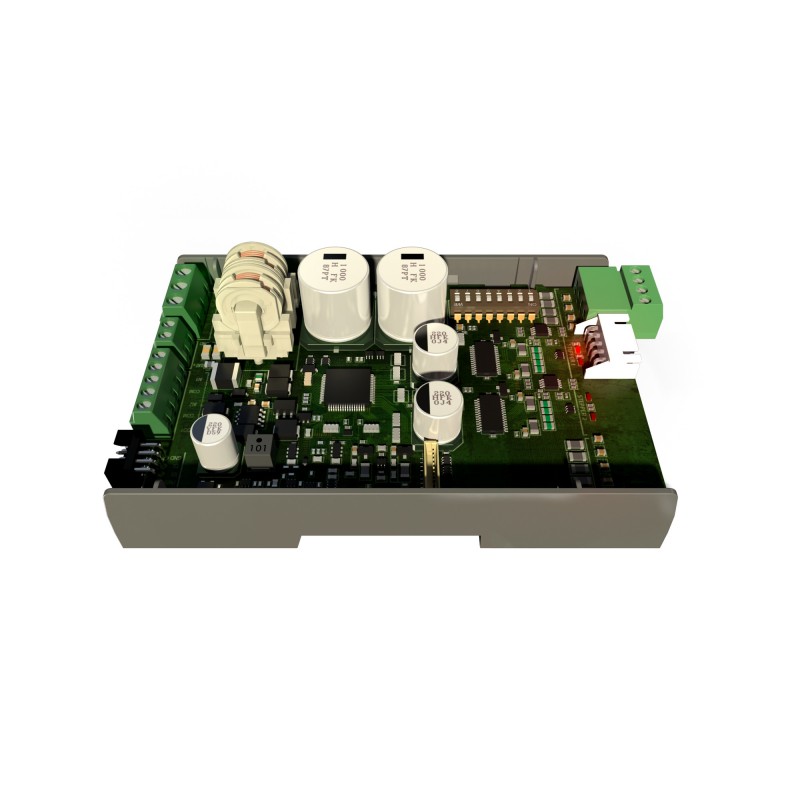

DANFOSS REFRIGERATION 080G5030 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

080G5030 DANFOSS REFRIGERATION EKF 1A Stepper driver 1 valve

Name: 080G5030 DANFOSS REFRIGERATION EKF 1A Stepper driver 1 valve
Brand: DANFOSS REFRIGERATION
SKU: DAO080G5030
Price: 200.54 USD
Availability: OutOfStock

Code: 080G5030

Manufacturer: DANFOSS REFRIGERATION

Description:

EKF 1A Stepper driver - 1 valve

Stepper valve driver, EKF 1A

Categories:

DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

More Info
Reviews

Guarantee, repair and return.

Unit Price: 179,15 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 4-5 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

MORE INFO

Digital outputs (DO) [pc]: 1, Analog inputs (AI) [pc]: 1, Frequency [Hz]: 50/60 Hz, Communication type: TTL to Interface

Product details

Gross weight	0.14 Kilogram
Net weight	0.08 Kilogram
Volume	0.841 Liter
EAN	5715162302699

Type	EKF 1A
Product group	Electronic valve control
Product Name Description	Stepper valve driver

Gross weight	0.14 Kilogram
Net weight	0.08 Kilogram
Volume	0.841 Liter
EAN	5715162302699
Type	EKF 1A
Product group	Electronic valve control
Product Name Description	Stepper valve driver

Ambient temperature range [°C] [max]	60 °C
Ambient temperature range [°C] [min]	-20 °C
Analog inputs (AI) [pc]	1 pc
Analog inputs type	Voltage or Current
Approval	CE CMIM RoHS UA cURus
Battery back-up [V] DC [max]	24 V
Battery back-up [V] DC [min]	18 V
CE mark	Yes
China RoHS compliance	Out of scope
Communication type	TTL to Interface
Contains batteries	No
Digital outputs (DO) [pc]	1 pc
Enclosure rating IP	IP00
EU RoHS compliance	Out of scope

Frequency [Hz]	50/60 Hz
Further information	Shared power supply
Mounting method	DIN rail
Packing format	Multi pack
Programming tools	Koolprog
Quantity per packing format	24 pc
REACH Candidate List substances	Lead monoxide (PbO, CAS no. 1317-36-8) Diboron trioxide (B2O3, CAS no. 1303-86-2) Lead (CAS no. 7439-92-1)
SCIP dossier no.	6ff7f959-f26d-4112-9a27-0c045b584689
SCIP dossier product name	EKF
Supply voltage [V] AC	24 V
Supply voltage [V] DC	24 V
UL mark	Yes
Valve output number	1
Valve output type	CCM 10 CCM 20 CCM 30 CCM 40 CCMT 16 CCMT 2 CCMT 24 CCMT 30 CCMT 4 CCMT 42 CCMT 8 CCMT L CTR 20 ETS 100 ETS 100C ETS 12.5 ETS 12C ETS 24C ETS 25 ETS 250 ETS 25B ETS 25C ETS 400 ETS 50 ETS 50C ETS 5M ETS 6 JKV KVS 15 KVS 2C KVS 3C KVS 42 KVS 5C UKV

Ambient temperature range [°C] [max]	60 °C
Ambient temperature range [°C] [min]	-20 °C
Analog inputs (AI) [pc]	1 pc
Analog inputs type	Voltage or Current
Approval	CE CMIM RoHS UA cURus
Battery back-up [V] DC [max]	24 V
Battery back-up [V] DC [min]	18 V
CE mark	Yes
China RoHS compliance	Out of scope
Communication type	TTL to Interface
Contains batteries	No
Digital outputs (DO) [pc]	1 pc
Enclosure rating IP	IP00
EU RoHS compliance	Out of scope
Frequency [Hz]	50/60 Hz
Further information	Shared power supply
Mounting method	DIN rail
Packing format	Multi pack
Programming tools	Koolprog
Quantity per packing format	24 pc
REACH Candidate List substances	Lead monoxide (PbO, CAS no. 1317-36-8) Diboron trioxide (B2O3, CAS no. 1303-86-2) Lead (CAS no. 7439-92-1)
SCIP dossier no.	6ff7f959-f26d-4112-9a27-0c045b584689
SCIP dossier product name	EKF
Supply voltage [V] AC	24 V
Supply voltage [V] DC	24 V
UL mark	Yes
Valve output number	1
Valve output type	CCM 10 CCM 20 CCM 30 CCM 40 CCMT 16 CCMT 2 CCMT 24 CCMT 30 CCMT 4 CCMT 42 CCMT 8 CCMT L CTR 20 ETS 100 ETS 100C ETS 12.5 ETS 12C ETS 24C ETS 25 ETS 250 ETS 25B ETS 25C ETS 400 ETS 50 ETS 50C ETS 5M ETS 6 JKV KVS 15 KVS 2C KVS 3C KVS 42 KVS 5C UKV
