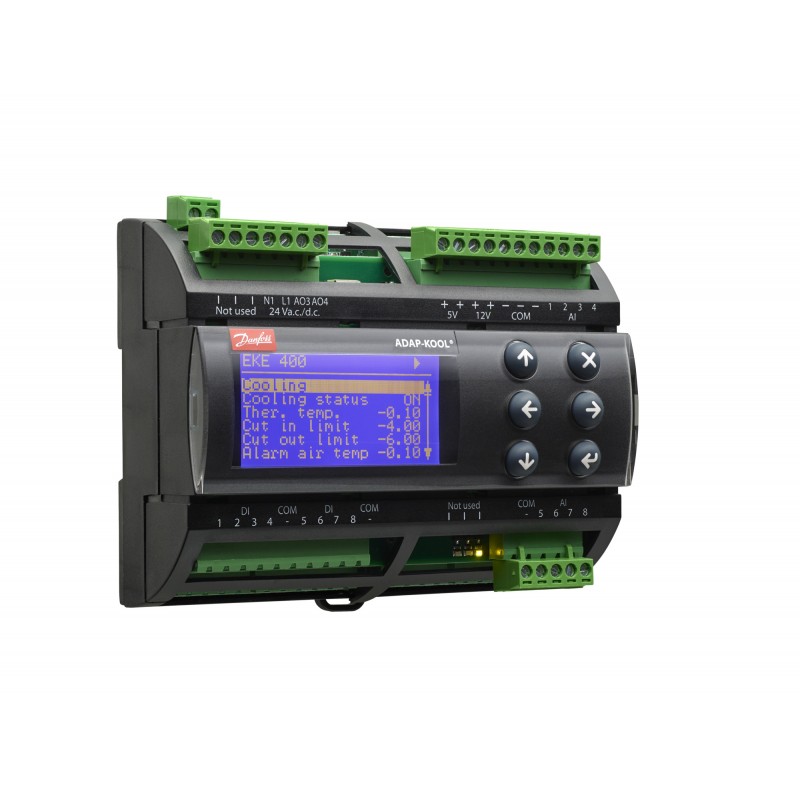

080G5006 DANFOSS REFRIGERATION Electronic vlavula control EKE 400
080G5006
DANFOSS REFRIGERATION
Electronic vlavula control EKE 400
Electronic valve control, EKE 400
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Electronic valve control, Application area: Direct Expansion evaporator; Flooded evaporator, Function: Cooling, Hot Gas Defrost, Communication type: RS485; MODBUS, Product features: Buzzer; Real time clock
Product details
| Gross weight | 0.6 Kilogram |
| Net weight | 0.461 Kilogram |
| Volume | 2.867 Liter |
| EAN | 5702428546225 |
| Type | EKE 400 |
| Product group | Electronic valve control |
| Product Name Description | Evaporator and room control |
| Gross weight | 0.6 Kilogram |
| Net weight | 0.461 Kilogram |
| Volume | 2.867 Liter |
| EAN | 5702428546225 |
| Type | EKE 400 |
| Product group | Electronic valve control |
| Product Name Description | Evaporator and room control |
| 1 Primary battery SUM weight Kg | 0.014 |
| 1 Primary battery weight Kg | 0.014 |
| Ambient temperature range [°C] [max] | 60 °C |
| Ambient temperature range [°C] [min] | -20 °C |
| Analog inputs (AI) [pc] | 8 pc |
| Analog inputs type | Voltage or Current |
| Analog outputs (AO) [pc] | 4 pc |
| Application area | Direct Expansion evaporator Flooded evaporator |
| Approval | CE cURus |
| Battery type or Name | Lithium coin cell (CR1620) |
| Buzzer | Yes |
| CE mark | Yes |
| China RoHS compliance | Out of scope |
| Communication type | MODBUS RS485 |
| Connector kit included | Yes |
| Contains batteries | Yes |
| Digital inputs (DI) [pc] | 8 pc |
| Digital outputs (DO) [pc] | 8 pc |
| Display - option | MMIGRS2 |
| Display on front | No |
| Enclosure rating IP | IP20 |
| Equipment | Incl. Connectors |
| EU RoHS compliance | Yes |
| Frequency [Hz] | 50/60 Hz |
| Function | Cooling, Hot Gas Defrost |
| In scope of WEEE | No |
| Mounting method | DIN rail |
| Number of Sensor inputs | 8 pc |
| Packing format | Multi pack |
| Power consumption [VA] | 17 VA |
| Power consumption [W] | 10 W |
| Product features | Buzzer Real time clock |
| Product Language | Chinese English Portuguese Spanish Dutch French German Italian Russian Japanese Korean |
| Programming tools | CoolSelector |
| Quantity per packing format | 12 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) Lead titanium zirconium oxide (CAS no. 12626-81-2) Potassium nonafluoro-1-butanesulfonate (CAS no. 29420-49-3) 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol (CAS no. 119-47-1) Cadmium (CAS no. 7440-43-9) |
| Real time clock | Yes |
| SCIP dossier no. | 3a3d2e4a-2484-4c5d-82f0-4ddc17dad4d2 |
| SCIP dossier product name | EKE 4x0 Evap. Controller. |
| Sensor type | Temperature sensor Pressure sensor |
| Supply voltage [V] AC [max] | 28 V |
| Supply voltage [V] AC [min] | 21 V |
| Supply voltage [V] DC [max] | 60 V |
| Supply voltage [V] DC [min] | 20 V |
| Temp. sensor support | Pt 1000 |
| UL mark | Yes |
| 1 Primary battery SUM weight Kg | 0.014 |
| 1 Primary battery weight Kg | 0.014 |
| Ambient temperature range [°C] [max] | 60 °C |
| Ambient temperature range [°C] [min] | -20 °C |
| Analog inputs (AI) [pc] | 8 pc |
| Analog inputs type | Voltage or Current |
| Analog outputs (AO) [pc] | 4 pc |
| Application area | Direct Expansion evaporator Flooded evaporator |
| Approval | CE cURus |
| Battery type or Name | Lithium coin cell (CR1620) |
| Buzzer | Yes |
| CE mark | Yes |
| China RoHS compliance | Out of scope |
| Communication type | MODBUS RS485 |
| Connector kit included | Yes |
| Contains batteries | Yes |
| Digital inputs (DI) [pc] | 8 pc |
| Digital outputs (DO) [pc] | 8 pc |
| Display - option | MMIGRS2 |
| Display on front | No |
| Enclosure rating IP | IP20 |
| Equipment | Incl. Connectors |
| EU RoHS compliance | Yes |
| Frequency [Hz] | 50/60 Hz |
| Function | Cooling, Hot Gas Defrost |
| In scope of WEEE | No |
| Mounting method | DIN rail |
| Number of Sensor inputs | 8 pc |
| Packing format | Multi pack |
| Power consumption [VA] | 17 VA |
| Power consumption [W] | 10 W |
| Product features | Buzzer Real time clock |
| Product Language | Chinese English Portuguese Spanish Dutch French German Italian Russian Japanese Korean |
| Programming tools | CoolSelector |
| Quantity per packing format | 12 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) Lead titanium zirconium oxide (CAS no. 12626-81-2) Potassium nonafluoro-1-butanesulfonate (CAS no. 29420-49-3) 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol (CAS no. 119-47-1) Cadmium (CAS no. 7440-43-9) |
| Real time clock | Yes |
| SCIP dossier no. | 3a3d2e4a-2484-4c5d-82f0-4ddc17dad4d2 |
| SCIP dossier product name | EKE 4x0 Evap. Controller. |
| Sensor type | Temperature sensor Pressure sensor |
| Supply voltage [V] AC [max] | 28 V |
| Supply voltage [V] AC [min] | 21 V |
| Supply voltage [V] DC [max] | 60 V |
| Supply voltage [V] DC [min] | 20 V |
| Temp. sensor support | Pt 1000 |
| UL mark | Yes |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
| 080G5006 EN_080G5003.pdf | 4 Mbytes |
|
