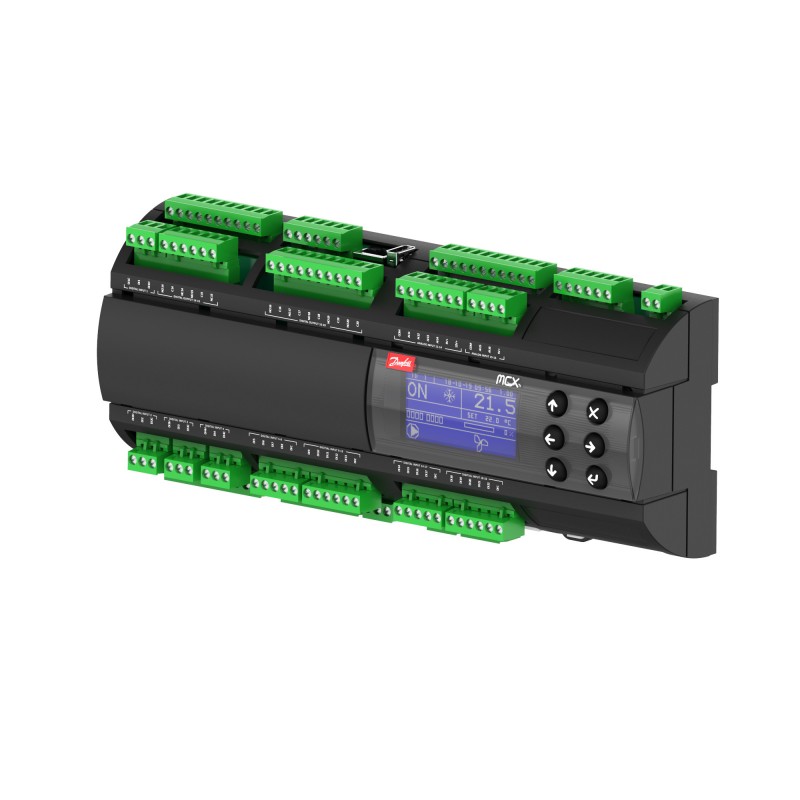

080G0331 DANFOSS REFRIGERATION MCX20B2 Elec. Control, LCD, 2RS485, I
080G0331
DANFOSS REFRIGERATION
MCX20B2 Elec. Control, LCD, 2RS485, I
Program. controller, 20 relays, MCX20B2
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Function: Programmable controllers, Supply voltage [V] AC: 24 - 230, Communication type: 2xRS485 MODBUS; USB; CANBUS; ETHER, Packing format: Industrial pack, Quantity per packing format: 12
Product details
| Gross weight | 0.821 Kilogram |
| Net weight | 0.69 Kilogram |
| Volume | 4.501 Liter |
| EAN | 5715162496299 |
| Type | MCX20B2 |
| Product group | Programmable controllers |
| Product Name Description | Program. controller, 20 relays |
| Gross weight | 0.821 Kilogram |
| Net weight | 0.69 Kilogram |
| Volume | 4.501 Liter |
| EAN | 5715162496299 |
| Type | MCX20B2 |
| Product group | Programmable controllers |
| Product Name Description | Program. controller, 20 relays |
| Analog inputs (AI) [pc] | 16 pc |
| Analog outputs (AO) [pc] | 6 pc |
| Approval | CE EAC UA UL Recognized |
| Buzzer | No |
| CE mark | Yes |
| China RoHS compliance | Yes |
| Communication type | 2xRS485 MODBUS CANBUS ETHER USB |
| Connector kit Code No. | 080G0182 |
| Connector kit included | No |
| Contains batteries | No |
| Digital inputs (DI) [pc] | 22 pc |
| Digital outputs (DO) [pc] | 20 pc |
| Display type | LCD |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Enclosure rating IP | IP40 |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) 7(a) 7(c)-I |
| Frequency [Hz] | 50/60 Hz |
| Function | Programmable controllers |
| Identical product | 080G0330 |
| In scope of WEEE | Yes |
| Mounting method | DIN rail |
| Packing format | Industrial pack |
| Power consumption [W] | 15 W |
| Product accessories | Electron. control accessories |
| Quantity per packing format | 12 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) Lead monoxide (PbO, CAS no. 1317-36-8) 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol (CAS no. 119-47-1) Diboron trioxide (B2O3, CAS no. 1303-86-2) |
| Real time clock | Yes |
| SCIP dossier no. | 0d76d8f7-2200-4154-bc0a-13f033795638 |
| SCIP dossier product name | MCX20B2 |
| Serviceable | No |
| Supply voltage [V] AC [max] | 230 V |
| Supply voltage [V] AC [min] | 24 V |
| Supply voltage [V] DC [max] | 230 V |
| Supply voltage [V] DC [min] | 40 V |
| Type designation | MCX20B2 |
| UL mark | Yes |
| Analog inputs (AI) [pc] | 16 pc |
| Analog outputs (AO) [pc] | 6 pc |
| Approval | CE EAC UA UL Recognized |
| Buzzer | No |
| CE mark | Yes |
| China RoHS compliance | Yes |
| Communication type | 2xRS485 MODBUS CANBUS ETHER USB |
| Connector kit Code No. | 080G0182 |
| Connector kit included | No |
| Contains batteries | No |
| Digital inputs (DI) [pc] | 22 pc |
| Digital outputs (DO) [pc] | 20 pc |
| Display type | LCD |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Enclosure rating IP | IP40 |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) 7(a) 7(c)-I |
| Frequency [Hz] | 50/60 Hz |
| Function | Programmable controllers |
| Identical product | 080G0330 |
| In scope of WEEE | Yes |
| Mounting method | DIN rail |
| Packing format | Industrial pack |
| Power consumption [W] | 15 W |
| Product accessories | Electron. control accessories |
| Quantity per packing format | 12 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) Lead monoxide (PbO, CAS no. 1317-36-8) 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol (CAS no. 119-47-1) Diboron trioxide (B2O3, CAS no. 1303-86-2) |
| Real time clock | Yes |
| SCIP dossier no. | 0d76d8f7-2200-4154-bc0a-13f033795638 |
| SCIP dossier product name | MCX20B2 |
| Serviceable | No |
| Supply voltage [V] AC [max] | 230 V |
| Supply voltage [V] AC [min] | 24 V |
| Supply voltage [V] DC [max] | 230 V |
| Supply voltage [V] DC [min] | 40 V |
| Type designation | MCX20B2 |
| UL mark | Yes |
