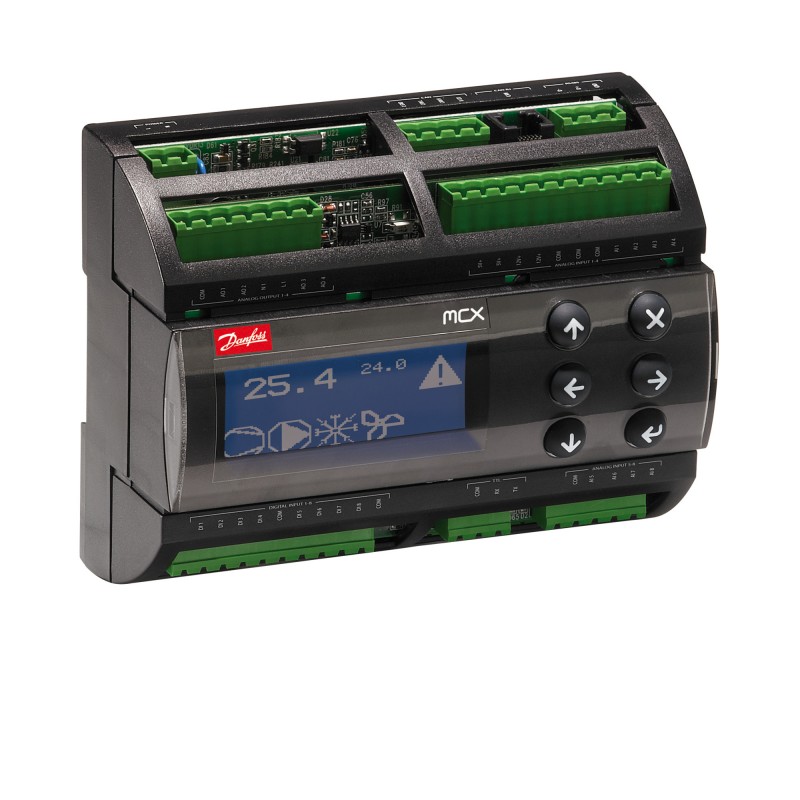

080G0310 DANFOSS REFRIGERATION Programmable Controller, 8 relays, MCX08M2
080G0310
DANFOSS REFRIGERATION
Programmable Controller, 8 relays, MCX08M2
MCX08M2, Elect.Control 24V LCD RS485 S
Program. controller, 8 relays, MCX08M2
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Function: Programmable Controller, Supply voltage [V] AC: 24, Communication type: CANBUS; RS485; MODBUS, Packing format: Multi pack, Quantity per packing format: 12
Product details
| Gross weight | 0.642 Kg |
| Net weight | 0.63 Kg |
| Volume | 2.758 Liter |
| EAN | 5702428945875 |
| Gross weight | 0.642 Kg |
| Net weight | 0.63 Kg |
| Volume | 2.758 Liter |
| EAN | 5702428945875 |
| 1 Primary battery SUM weight Kg | 0.001 |
| 1 Primary battery weight Kg | 0.001 |
| Analog inputs (AI) [pc] | 8 pc |
| Analog outputs (AO) [pc] | 4 pc |
| Approval | CE EAC LLC CDC TYSK UL |
| Battery qty | 1 |
| Battery type or Name | Lithium coin cell |
| Buzzer | Yes |
| Communication type | CANBUS MODBUS RS485 |
| Connector kit Code No. | 080G0180 |
| Connector kit included | Yes |
| Digital inputs (DI) [pc] | 8 pc |
| Digital outputs (DO) [pc] | 8 pc |
| Display type | LCD |
| Enclosure rating IP | IP40 |
| EU RoHS compliance | Yes |
| Frequency [Hz] | 50/60 Hz |
| Function | Programmable Controller |
| Identical product | 080G0315 |
| In scope of WEEE and contain batteries | Yes |
| Mounting method | DIN rail |
| Packing format | Multi pack |
| Power consumption [W] | 10 W |
| Product accessories | Electron. control accessories |
| Product group | Programmable controllers |
| Product Name Description | Program. controller, 8 relays |
| Quantity per packing format | 12 pc |
| REACH Candidate List substances | No |
| Real time clock | Yes |
| Serviceable | No |
| Supply voltage [V] AC | 24 V |
| Supply voltage [V] DC | 24 V |
| Supply voltage [V] DC | 24 V |
| Type | MCX08M2 |
| Type designation | MCX08M2 |
| 1 Primary battery SUM weight Kg | 0.001 |
| 1 Primary battery weight Kg | 0.001 |
| Analog inputs (AI) [pc] | 8 pc |
| Analog outputs (AO) [pc] | 4 pc |
| Approval | CE EAC LLC CDC TYSK UL |
| Battery qty | 1 |
| Battery type or Name | Lithium coin cell |
| Buzzer | Yes |
| Communication type | CANBUS MODBUS RS485 |
| Connector kit Code No. | 080G0180 |
| Connector kit included | Yes |
| Digital inputs (DI) [pc] | 8 pc |
| Digital outputs (DO) [pc] | 8 pc |
| Display type | LCD |
| Enclosure rating IP | IP40 |
| EU RoHS compliance | Yes |
| Frequency [Hz] | 50/60 Hz |
| Function | Programmable Controller |
| Identical product | 080G0315 |
| In scope of WEEE and contain batteries | Yes |
| Mounting method | DIN rail |
| Packing format | Multi pack |
| Power consumption [W] | 10 W |
| Product accessories | Electron. control accessories |
| Product group | Programmable controllers |
| Product Name Description | Program. controller, 8 relays |
| Quantity per packing format | 12 pc |
| REACH Candidate List substances | No |
| Real time clock | Yes |
| Serviceable | No |
| Supply voltage [V] AC | 24 V |
| Supply voltage [V] DC | 24 V |
| Supply voltage [V] DC | 24 V |
| Type | MCX08M2 |
| Type designation | MCX08M2 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
