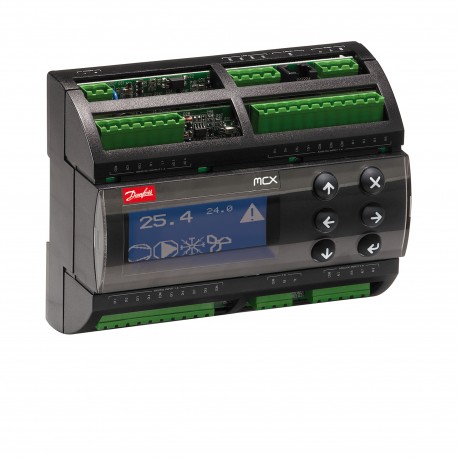

080G0307 DANFOSS REFRIGERATION Programmable Controller, 8 relays, MCX08M2
080G0307
DANFOSS REFRIGERATION
Programmable Controller, 8 relays, MCX08M2
MCX08M2 Elect.Control230V LCD RS485 S
Program. controller, 8 relays, MCX08M2
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Function: Programmable controller, Supply voltage [V] AC: 110 - 230, Communication type: CANBUS; RS485; MODBUS, Packing format: Single pack, Quantity per packing format: 1
Product details
| Gross weight | 0.638 Kilogram |
| Net weight | 0.511 Kilogram |
| Volume | 2.799 Liter |
| EAN | 5702428945899 |
| Type | MCX08M2 |
| Product group | Programmable controllers |
| Product Name Description | Program. controller, 8 relays |
| Gross weight | 0.638 Kilogram |
| Net weight | 0.511 Kilogram |
| Volume | 2.799 Liter |
| EAN | 5702428945899 |
| Type | MCX08M2 |
| Product group | Programmable controllers |
| Product Name Description | Program. controller, 8 relays |
| 1 Primary battery SUM weight Kg | 0.001 |
| 1 Primary battery weight Kg | 0.001 |
| Analog inputs (AI) [pc] | 8 pc |
| Analog outputs (AO) [pc] | 4 pc |
| Approval | CE EAC LLC CDC TYSK UL |
| Battery qty | 1 |
| Battery type or Name | Lithium coin cell (CR1620) |
| Buzzer | Yes |
| CE mark | Yes |
| China RoHS compliance | Yes |
| Communication type | CANBUS MODBUS RS485 |
| Connector kit Code No. | 080G0180 |
| Connector kit included | Yes |
| Contains batteries | Yes |
| Digital inputs (DI) [pc] | 8 pc |
| Digital outputs (DO) [pc] | 8 pc |
| Display type | LCD |
| Division | 25 |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Enclosure rating IP | IP40 |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) 7(a) 7(c)-I |
| Frequency [Hz] | 50/60 Hz |
| Function | Programmable Controller |
| In scope of WEEE | Yes |
| Mounting method | DIN rail |
| Packing format | Single pack |
| PFAS content [Yes/No] | No |
| Power consumption [W] | 10 W |
| Product accessories | Electron. control accessories |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) Lead titanium zirconium oxide (CAS no. 12626-81-2) Potassium nonafluoro-1-butanesulfonate (CAS no. 29420-49-3) 1, 2-dimethoxyethane, ethylene glycol dimethyl ether (EGDME) (CAS no. 110-71-4) 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol (CAS no. 119-47-1) |
| Real time clock | Yes |
| SCIP dossier no. | 5f6ae30f-1c87-4ee3-80c1-0b3f867b9518 |
| SCIP dossier product name | MCX08M2 |
| Serviceable | No |
| Supply voltage [V] AC [max] | 230 V |
| Supply voltage [V] AC [min] | 110 V |
| Type designation | MCX08M2 |
| UL mark | Yes |
| 1 Primary battery SUM weight Kg | 0.001 |
| 1 Primary battery weight Kg | 0.001 |
| Analog inputs (AI) [pc] | 8 pc |
| Analog outputs (AO) [pc] | 4 pc |
| Approval | CE EAC LLC CDC TYSK UL |
| Battery qty | 1 |
| Battery type or Name | Lithium coin cell (CR1620) |
| Buzzer | Yes |
| CE mark | Yes |
| China RoHS compliance | Yes |
| Communication type | CANBUS MODBUS RS485 |
| Connector kit Code No. | 080G0180 |
| Connector kit included | Yes |
| Contains batteries | Yes |
| Digital inputs (DI) [pc] | 8 pc |
| Digital outputs (DO) [pc] | 8 pc |
| Display type | LCD |
| Division | 25 |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Enclosure rating IP | IP40 |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) 7(a) 7(c)-I |
| Frequency [Hz] | 50/60 Hz |
| Function | Programmable Controller |
| In scope of WEEE | Yes |
| Mounting method | DIN rail |
| Packing format | Single pack |
| PFAS content [Yes/No] | No |
| Power consumption [W] | 10 W |
| Product accessories | Electron. control accessories |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) Lead titanium zirconium oxide (CAS no. 12626-81-2) Potassium nonafluoro-1-butanesulfonate (CAS no. 29420-49-3) 1, 2-dimethoxyethane, ethylene glycol dimethyl ether (EGDME) (CAS no. 110-71-4) 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol (CAS no. 119-47-1) |
| Real time clock | Yes |
| SCIP dossier no. | 5f6ae30f-1c87-4ee3-80c1-0b3f867b9518 |
| SCIP dossier product name | MCX08M2 |
| Serviceable | No |
| Supply voltage [V] AC [max] | 230 V |
| Supply voltage [V] AC [min] | 110 V |
| Type designation | MCX08M2 |
| UL mark | Yes |
