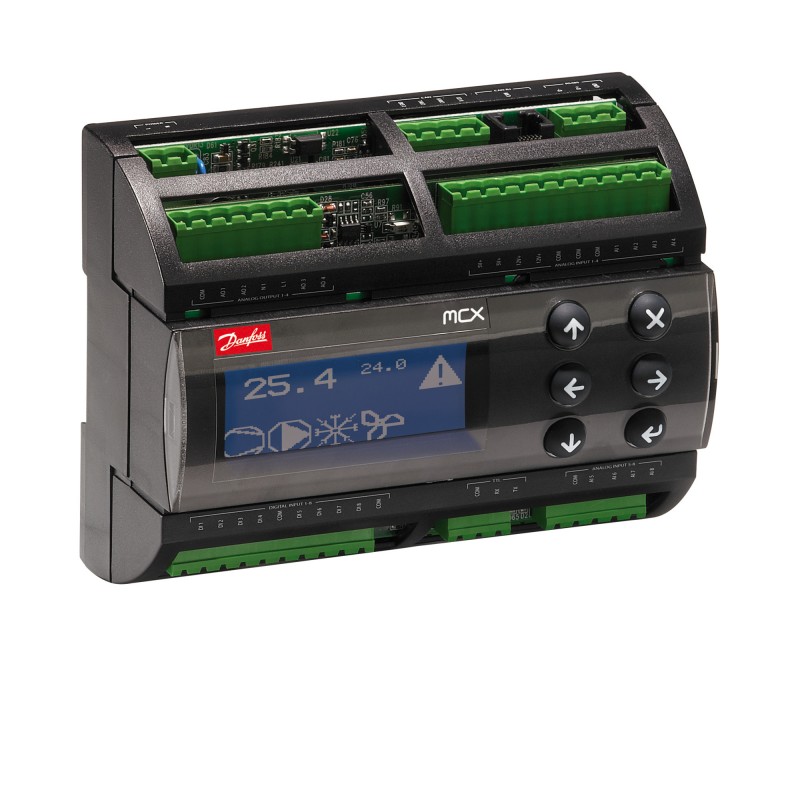

080G0293 DANFOSS REFRIGERATION Programmable Controller, 8 relays, MCX08M2

Name: 080G0293 DANFOSS REFRIGERATION Programmable Controller, 8 relays, MCX08M2
Brand: DANFOSS REFRIGERATION
SKU: DAO080G0293
Price: 434.77 USD
Availability: OutOfStock

Reference: 080G0293

Manufacturer: DANFOSS REFRIGERATION

Description:

Programmable Controller, 8 relays, MCX08M2

MCX08M2 Controller 24V, RS485, S

Program. controller, 8 relays, MCX08M2

Categories:

DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

More Info
Reviews

Guarantee, repair and return.

Unit Price: 381,86 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 4-5 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

MORE INFO

Function: Programmable controller, Supply voltage [V] AC: 24, Communication type: CANBUS; RS485; MODBUS, Packing format: Single pack, Quantity per packing format: 1

Product details

Gross weight	0.57 Kilogram
Net weight	0.56 Kilogram
Volume	2.799 Liter
EAN	5702428910811

Type	MCX08M2
Product group	Programmable controllers
Product Name Description	Program. controller, 8 relays

Gross weight	0.57 Kilogram
Net weight	0.56 Kilogram
Volume	2.799 Liter
EAN	5702428910811
Type	MCX08M2
Product group	Programmable controllers
Product Name Description	Program. controller, 8 relays

1 Primary battery SUM weight Kg	0.001
1 Primary battery weight Kg	0.001
Analog inputs (AI) [pc]	8 pc
Analog outputs (AO) [pc]	4 pc
Approval	CE EAC LLC CDC TYSK UL
Battery qty	1
Battery type or Name	Lithium coin cell (CR1620)
Buzzer	Yes
CE mark	Yes
China RoHS compliance	Yes
Communication type	CANBUS MODBUS RS485
Connector kit Code No.	080G0180
Connector kit included	Yes
Contains batteries	Yes
Digital inputs (DI) [pc]	8 pc
Digital outputs (DO) [pc]	8 pc
Display type	Without display
Division	25
EEE category	5 small equipment (any external dimension < 50 cm)
Enclosure rating IP	IP40
EU RoHS compliance	Yes with exemptions

EU RoHS exemption clause	6(c) 7(a) 7(c)-I
Frequency [Hz]	50/60 Hz
Function	Programmable Controller
Identical product	080G0303
In scope of WEEE	Yes
Mounting method	DIN rail
Packing format	Single pack
PFAS content [Yes/No]	No
Power consumption [W]	10 W
Product accessories	Electron. control accessories
Quantity per packing format	1 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1) Lead titanium zirconium oxide (CAS no. 12626-81-2) Potassium nonafluoro-1-butanesulfonate (CAS no. 29420-49-3) 1, 2-dimethoxyethane, ethylene glycol dimethyl ether (EGDME) (CAS no. 110-71-4) 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol (CAS no. 119-47-1)
Real time clock	Yes
SCIP dossier no.	5f6ae30f-1c87-4ee3-80c1-0b3f867b9518
SCIP dossier product name	MCX08M2
Serviceable	No
Supply voltage [V] AC	24 V
Supply voltage [V] DC	24 V
Type designation	MCX08M2
UL mark	Yes

1 Primary battery SUM weight Kg	0.001
1 Primary battery weight Kg	0.001
Analog inputs (AI) [pc]	8 pc
Analog outputs (AO) [pc]	4 pc
Approval	CE EAC LLC CDC TYSK UL
Battery qty	1
Battery type or Name	Lithium coin cell (CR1620)
Buzzer	Yes
CE mark	Yes
China RoHS compliance	Yes
Communication type	CANBUS MODBUS RS485
Connector kit Code No.	080G0180
Connector kit included	Yes
Contains batteries	Yes
Digital inputs (DI) [pc]	8 pc
Digital outputs (DO) [pc]	8 pc
Display type	Without display
Division	25
EEE category	5 small equipment (any external dimension < 50 cm)
Enclosure rating IP	IP40
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(c) 7(a) 7(c)-I
Frequency [Hz]	50/60 Hz
Function	Programmable Controller
Identical product	080G0303
In scope of WEEE	Yes
Mounting method	DIN rail
Packing format	Single pack
PFAS content [Yes/No]	No
Power consumption [W]	10 W
Product accessories	Electron. control accessories
Quantity per packing format	1 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1) Lead titanium zirconium oxide (CAS no. 12626-81-2) Potassium nonafluoro-1-butanesulfonate (CAS no. 29420-49-3) 1, 2-dimethoxyethane, ethylene glycol dimethyl ether (EGDME) (CAS no. 110-71-4) 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol (CAS no. 119-47-1)
Real time clock	Yes
SCIP dossier no.	5f6ae30f-1c87-4ee3-80c1-0b3f867b9518
SCIP dossier product name	MCX08M2
Serviceable	No
Supply voltage [V] AC	24 V
Supply voltage [V] DC	24 V
Type designation	MCX08M2
UL mark	Yes

DATASHEET - PDF

Title

Size

Type

PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN

11 Mbytes
