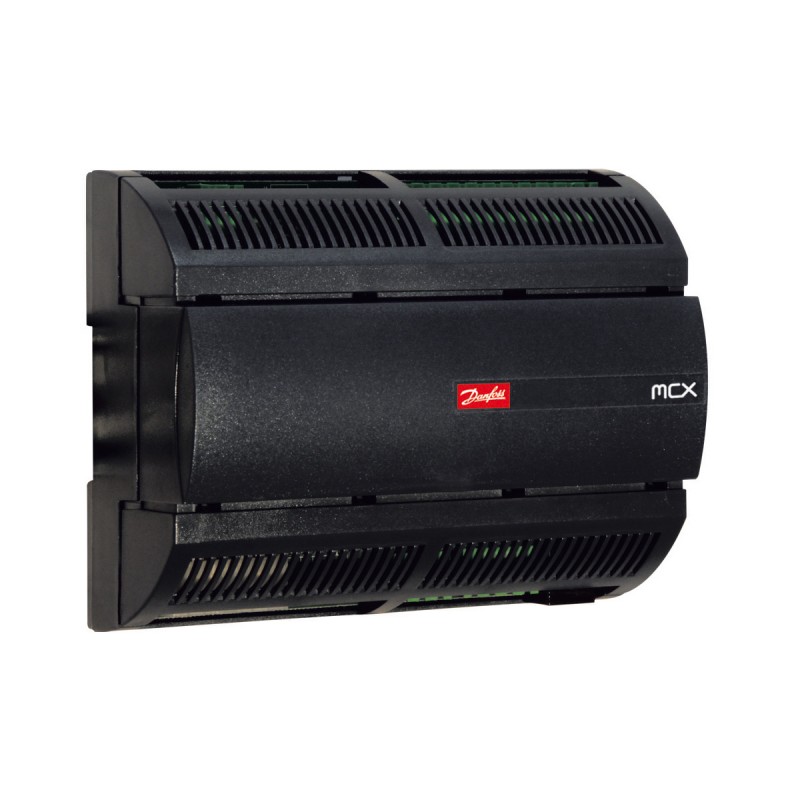

080G0156 DANFOSS REFRIGERATION Program. controller, 6 relays, CSTFR1
080G0156
DANFOSS REFRIGERATION
Program. controller, 6 relays, CSTFR1
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Function: Programmable Controller, Supply voltage [V] AC: 110 - 230, Communication type: CANBUS; RS485; MODBUS, Packing format: Industrial pack, Quantity per packing format: 24
Product details
| Gross weight | 0.352 Kilogram |
| Net weight | 0.246 Kilogram |
| Volume | 2.326 Liter |
| EAN | 5702423284931 |
| Type | CSTFR1 |
| Product group | Programmable controllers |
| Product Name Description | Program. controller, 6 relays |
| Gross weight | 0.352 Kilogram |
| Net weight | 0.246 Kilogram |
| Volume | 2.326 Liter |
| EAN | 5702423284931 |
| Type | CSTFR1 |
| Product group | Programmable controllers |
| Product Name Description | Program. controller, 6 relays |
| Analog inputs (AI) [pc] | 16 pc |
| Analog outputs (AO) [pc] | 6 pc |
| Buzzer | Yes |
| CE mark | Yes |
| China RoHS compliance | Yes |
| Communication type | CANBUS MODBUS RS485 |
| Connector kit Code No. | 080G0185 |
| Connector kit included | No |
| Contains batteries | No |
| Digital inputs (DI) [pc] | 22 pc |
| Digital outputs (DO) [pc] | 20 pc |
| Display type | Without display |
| Division | 25 |
| Enclosure rating IP | IP40 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Frequency [Hz] | 50/60 Hz |
| Function | Programmable Controller |
| Mounting method | DIN rail |
| Packing format | Industrial pack |
| PFAS content [Yes/No] | No |
| Power consumption [W] | 6 W |
| Product accessories | Electron. control accessories |
| Quantity per packing format | 24 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) Lead titanium zirconium oxide (CAS no. 12626-81-2) 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol (CAS no. 119-47-1) 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol (CAS no. 79-94-7) 1, 2-dimethoxyethane, ethylene glycol dimethyl ether (EGDME) (CAS no. 110-71-4) Potassium nonafluoro-1-butanesulfonate (CAS no. 29420-49-3) Cadmium oxide (CAS no.1306-19-0) |
| Real time clock | No |
| SCIP dossier no. | 8ffe0b17-a5c2-4a33-b1d7-026f8a42926d |
| SCIP dossier product name | MCX-MMILDS,CSTFR1 & MMIMYK |
| Serviceable | No |
| Supply voltage [V] AC [max] | 230 V |
| Supply voltage [V] AC [min] | 110 V |
| Type designation | CSTFR14000070 |
| Analog inputs (AI) [pc] | 16 pc |
| Analog outputs (AO) [pc] | 6 pc |
| Buzzer | Yes |
| CE mark | Yes |
| China RoHS compliance | Yes |
| Communication type | CANBUS MODBUS RS485 |
| Connector kit Code No. | 080G0185 |
| Connector kit included | No |
| Contains batteries | No |
| Digital inputs (DI) [pc] | 22 pc |
| Digital outputs (DO) [pc] | 20 pc |
| Display type | Without display |
| Division | 25 |
| Enclosure rating IP | IP40 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Frequency [Hz] | 50/60 Hz |
| Function | Programmable Controller |
| Mounting method | DIN rail |
| Packing format | Industrial pack |
| PFAS content [Yes/No] | No |
| Power consumption [W] | 6 W |
| Product accessories | Electron. control accessories |
| Quantity per packing format | 24 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) Lead titanium zirconium oxide (CAS no. 12626-81-2) 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol (CAS no. 119-47-1) 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol (CAS no. 79-94-7) 1, 2-dimethoxyethane, ethylene glycol dimethyl ether (EGDME) (CAS no. 110-71-4) Potassium nonafluoro-1-butanesulfonate (CAS no. 29420-49-3) Cadmium oxide (CAS no.1306-19-0) |
| Real time clock | No |
| SCIP dossier no. | 8ffe0b17-a5c2-4a33-b1d7-026f8a42926d |
| SCIP dossier product name | MCX-MMILDS,CSTFR1 & MMIMYK |
| Serviceable | No |
| Supply voltage [V] AC [max] | 230 V |
| Supply voltage [V] AC [min] | 110 V |
| Type designation | CSTFR14000070 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
| 080G0156 080G0156 ES_080G0156.pdf | 1004 Kbytes |
|
