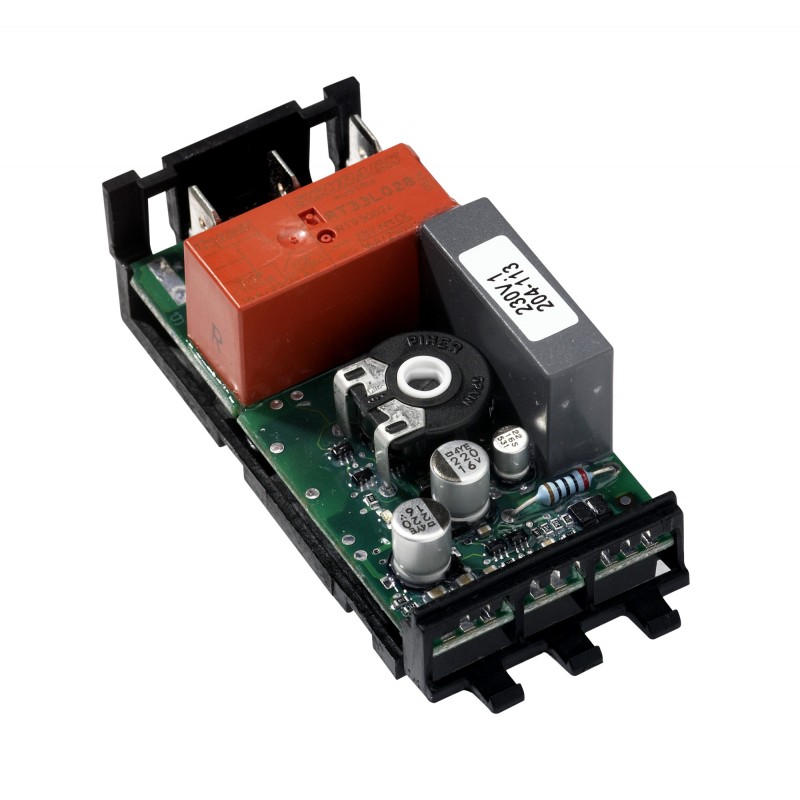

077F1394 DANFOSS REFRIGERATION Electronic thermostat control, ETC 1H3
077F1394
DANFOSS REFRIGERATION
Electronic thermostat control, ETC 1H3
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Function: Standard thermostat, Supply voltage [V] AC: 120, Packing format: Industrial pack, Quantity per packing format: 120
Product details
| Gross weight | 0.07 Kilogram |
| Net weight | 0.055 Kilogram |
| Volume | 0.197 Liter |
| EAN | 5702428434997 |
| Type | ETC 1H3 |
| Product group | Temperature controllers |
| Product Name Description | Electronic thermostat control |
| Gross weight | 0.07 Kilogram |
| Net weight | 0.055 Kilogram |
| Volume | 0.197 Liter |
| EAN | 5702428434997 |
| Type | ETC 1H3 |
| Product group | Temperature controllers |
| Product Name Description | Electronic thermostat control |
| Approval | CE CQC EAC ENEC LLC CDC TYSK NSF cURus |
| Aux. contacts rating | FLA5 (MK4,MK6) |
| Aux. contacts, NO [pc] | 2 pc |
| CE mark | Yes |
| China RoHS compliance | Out of scope |
| Coating | Coated PCB |
| Cold cut-out [°C] | 0 °C |
| Cold cut-out [°F] | 32 °F |
| Cold difference [°C] | 1 °C |
| Cold difference [°F] | 33.8 °F |
| Defrost sensor type | 077F8750 - 8768 077F8780 - 8798 |
| Defrost temp. [°C] | 5 °C |
| Defrost temp. [°F] | 41 °F |
| Defrost type | Method 2 |
| Division | 25 |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 7(c)-I 7(a) |
| Frequency [Hz] | 60 Hz |
| Function | Standard thermostat |
| In scope of WEEE | Yes |
| Main relay rating | LRA96 FLA16 |
| Min. Off time [s] | 300 s |
| Min. On time [s] | 300 s |
| Number of terminals [pcs] | 6 pc |
| Other RoHS documentation | EAEU RoHS |
| Packing format | Industrial pack |
| PFAS content [Yes/No] | No |
| Product accessories | Electron. control accessories |
| Quantity per packing format | 120 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 4f1b5855-13f1-4bd1-94f4-60b28ef56617 |
| SCIP dossier product name | ETC 1H |
| Serviceable | No |
| Spade terminal size [mm] | 6.3 x 0.8 mm tab |
| Spindle | With stop |
| Supply voltage [V] AC | 120 V |
| Temp. sensor type | 077F8751 - 8769 |
| Temp. setting | Knob |
| UL mark | Yes |
| Warm cut-out [°C] | 10 °C |
| Warm cut-out [°F] | 50 °F |
| Warm difference [°C] | 1 °C |
| Warm difference [°F] | 33.8 °F |
| Approval | CE CQC EAC ENEC LLC CDC TYSK NSF cURus |
| Aux. contacts rating | FLA5 (MK4,MK6) |
| Aux. contacts, NO [pc] | 2 pc |
| CE mark | Yes |
| China RoHS compliance | Out of scope |
| Coating | Coated PCB |
| Cold cut-out [°C] | 0 °C |
| Cold cut-out [°F] | 32 °F |
| Cold difference [°C] | 1 °C |
| Cold difference [°F] | 33.8 °F |
| Defrost sensor type | 077F8750 - 8768 077F8780 - 8798 |
| Defrost temp. [°C] | 5 °C |
| Defrost temp. [°F] | 41 °F |
| Defrost type | Method 2 |
| Division | 25 |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 7(c)-I 7(a) |
| Frequency [Hz] | 60 Hz |
| Function | Standard thermostat |
| In scope of WEEE | Yes |
| Main relay rating | LRA96 FLA16 |
| Min. Off time [s] | 300 s |
| Min. On time [s] | 300 s |
| Number of terminals [pcs] | 6 pc |
| Other RoHS documentation | EAEU RoHS |
| Packing format | Industrial pack |
| PFAS content [Yes/No] | No |
| Product accessories | Electron. control accessories |
| Quantity per packing format | 120 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 4f1b5855-13f1-4bd1-94f4-60b28ef56617 |
| SCIP dossier product name | ETC 1H |
| Serviceable | No |
| Spade terminal size [mm] | 6.3 x 0.8 mm tab |
| Spindle | With stop |
| Supply voltage [V] AC | 120 V |
| Temp. sensor type | 077F8751 - 8769 |
| Temp. setting | Knob |
| UL mark | Yes |
| Warm cut-out [°C] | 10 °C |
| Warm cut-out [°F] | 50 °F |
| Warm difference [°C] | 1 °C |
| Warm difference [°F] | 33.8 °F |
