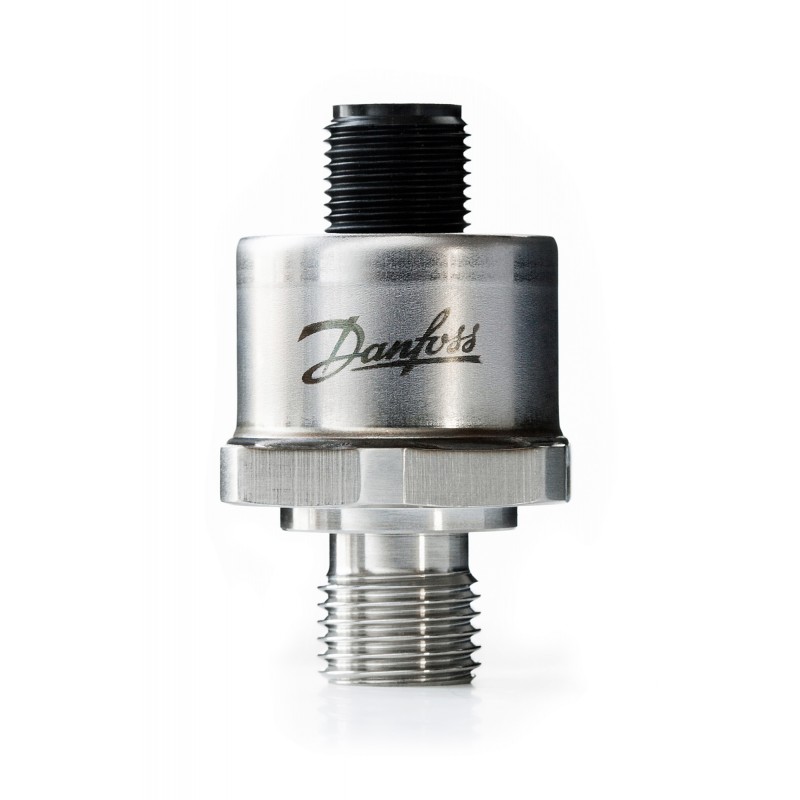

075G4027 DANFOSS REFRIGERATION DST P140 4-20mA Sensor (0 10 bar Gauge)
075G4027
DANFOSS REFRIGERATION
DST P140 4-20mA Sensor (0 - 10 bar Gauge)
Pressure transmitter, DST P140, 0 bar - 10 bar, 0 psi - 145 psi
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Pressure reference: Gauge (relative), Output signal: Current, Electrical connection: M12 x 1, Pressure connection type: G, Pressure connection size: 1/4-A, Specification key: DST P140-2011-A5GB04-1
Product details
| Gross weight | 0.067 Kilogram |
| Net weight | 0.055 Kilogram |
| EAN | 5702428680172 |
| Gross weight | 0.067 Kilogram |
| Net weight | 0.055 Kilogram |
| EAN | 5702428680172 |
| + supply | Pin 1 |
| - common | Pin 3 |
| Ambient temperature range [°C] [max] | 85 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Approval | CE |
| CE evaluated | Yes |
| Compensated temp. range [°C] [max] | 100 °C |
| Compensated temp. range [°C] [min] | -40 °C |
| Contain batteries | No |
| Electrical connection | M12 x 1 |
| Electrical connection size | 4 pin |
| Electrical connection standard | IEC 61076-2-101 |
| Electrical Connector Color | Black |
| Enclosure rating IP | IP67 |
| EU RoHS compliance | Yes |
| Fault signal level | 21.5 |
| High Clipping Level | 20.5 |
| Housing material | 304L |
| Identical product | 075G1054 |
| In scope of WEEE | Yes |
| International Article Number | 5702428680172 |
| Low Clipping level | 3.8 |
| Medium temperature range [°C] [max] | 80 °C |
| Medium temperature range [°C] [min] | -20 °C |
| Output signal | Current |
| Output signal [mA] [max] | 20 mA |
| Output signal [mA] [min] | 4 mA |
| Overload pressure max. [bar] | 40 bar |
| Overload pressure max. [psi] | 580 psi |
| Packing format | Industrial pack |
| Pressure connection HEX [mm] | 27 mm |
| Pressure connection size | 1/4-A |
| Pressure connection standard | ISO 1179-2 |
| Pressure connection type | G |
| Pressure Male/Female | Male |
| Pressure range [bar] [max] | 10 bar |
| Pressure range [bar] [min] | 0 bar |
| Pressure range [psi] [max] | 145 psi |
| Pressure range [psi] [min] | 0 psi |
| Pressure reference | Gauge (relative) |
| Product group | Sensors |
| Product Name Description | Pressure transmitter |
| Pulse-snubber | No |
| Quantity per packing format | 60 pc |
| REACH Candidate List substances | No |
| Response time max. [ms] | 2 ms |
| SCIP dossier no. | - |
| Specification key | DST P140-2011-A5GB04-1 |
| Supply voltage [V] DC [max] | 28 V |
| Supply voltage [V] DC [min] | 8 V |
| TEB inside CTR ±FS [%] | 3 % |
| Type | DST P140 |
| UK RoHS compliance | Out of scope |
| Wetted part material | 304L/316L |
| + supply | Pin 1 |
| - common | Pin 3 |
| Ambient temperature range [°C] [max] | 85 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Approval | CE |
| CE evaluated | Yes |
| Compensated temp. range [°C] [max] | 100 °C |
| Compensated temp. range [°C] [min] | -40 °C |
| Contain batteries | No |
| Electrical connection | M12 x 1 |
| Electrical connection size | 4 pin |
| Electrical connection standard | IEC 61076-2-101 |
| Electrical Connector Color | Black |
| Enclosure rating IP | IP67 |
| EU RoHS compliance | Yes |
| Fault signal level | 21.5 |
| High Clipping Level | 20.5 |
| Housing material | 304L |
| Identical product | 075G1054 |
| In scope of WEEE | Yes |
| International Article Number | 5702428680172 |
| Low Clipping level | 3.8 |
| Medium temperature range [°C] [max] | 80 °C |
| Medium temperature range [°C] [min] | -20 °C |
| Output signal | Current |
| Output signal [mA] [max] | 20 mA |
| Output signal [mA] [min] | 4 mA |
| Overload pressure max. [bar] | 40 bar |
| Overload pressure max. [psi] | 580 psi |
| Packing format | Industrial pack |
| Pressure connection HEX [mm] | 27 mm |
| Pressure connection size | 1/4-A |
| Pressure connection standard | ISO 1179-2 |
| Pressure connection type | G |
| Pressure Male/Female | Male |
| Pressure range [bar] [max] | 10 bar |
| Pressure range [bar] [min] | 0 bar |
| Pressure range [psi] [max] | 145 psi |
| Pressure range [psi] [min] | 0 psi |
| Pressure reference | Gauge (relative) |
| Product group | Sensors |
| Product Name Description | Pressure transmitter |
| Pulse-snubber | No |
| Quantity per packing format | 60 pc |
| REACH Candidate List substances | No |
| Response time max. [ms] | 2 ms |
| SCIP dossier no. | - |
| Specification key | DST P140-2011-A5GB04-1 |
| Supply voltage [V] DC [max] | 28 V |
| Supply voltage [V] DC [min] | 8 V |
| TEB inside CTR ±FS [%] | 3 % |
| Type | DST P140 |
| UK RoHS compliance | Out of scope |
| Wetted part material | 304L/316L |
