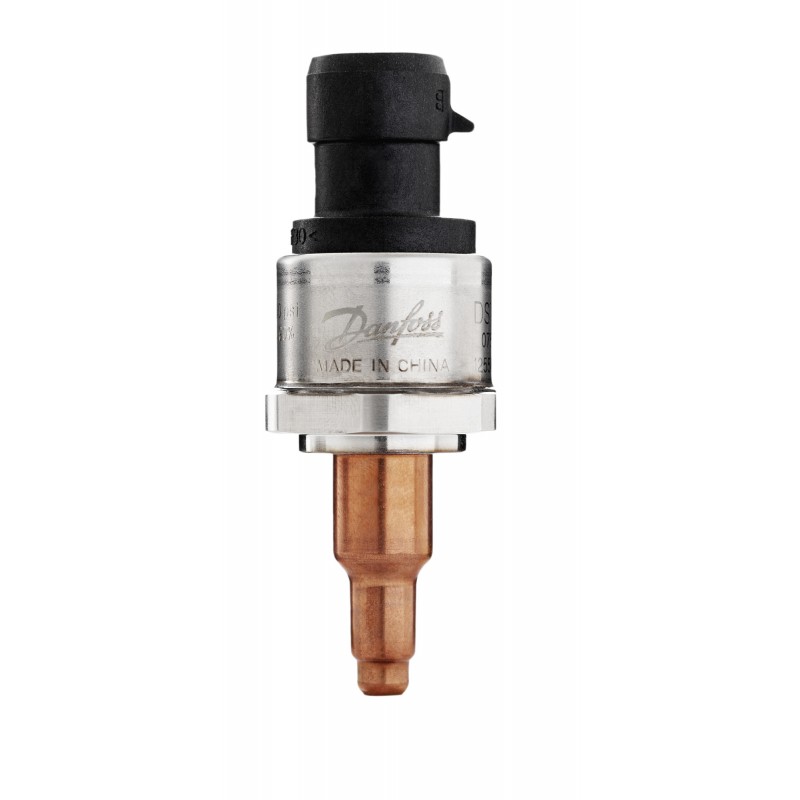

075G1071 DANFOSS REFRIGERATION DST P110 Sensor (0-30bar SG) Solder tube
075G1071
DANFOSS REFRIGERATION
DST P110 Sensor (0-30bar SG) Solder tube
Pressure transmitter, DST P110, 0 bar - 30 bar, 0 psi - 435 psi
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Pressure reference: Sealed gauge, Output signal: Ratio metric, Electrical connection: Round Packard Metri-Pack, Pressure connection type: Solder, ODM, Pressure connection size: Solder tube, Specification key: DST P110-C836-C2EB07-0
Product details
| Gross weight | 0.068 Kilogram |
| Net weight | 0.061 Kilogram |
| Volume | 0.109 Liter |
| EAN | 5702424053727 |
| Type | DST P110 |
| Product group | Sensors |
| Product Name Description | Pressure transmitter |
| Gross weight | 0.068 Kilogram |
| Net weight | 0.061 Kilogram |
| Volume | 0.109 Liter |
| EAN | 5702424053727 |
| Type | DST P110 |
| Product group | Sensors |
| Product Name Description | Pressure transmitter |
| + output | Pin C |
| + supply | Pin B |
| - common | Pin A |
| Ambient temperature range [°C] [max] | 125 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| CE mark | Yes |
| China RoHS compliance | Out of scope |
| Compensated temp. range [°C] [max] | 125 °C |
| Compensated temp. range [°C] [min] | -40 °C |
| Contains batteries | No |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical connection | Round Packard Metri-Pack |
| Electrical connection size | 3 pin |
| Electrical connection standard | 150.2 SERIES |
| Electrical Connector Color | Black |
| Enclosure rating IP | IP69K |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Fault signal level | 2 |
| High Clipping Level | 99 |
| Housing material | 304L |
| Identical product | 075G4050 |
| In scope of WEEE | Yes |
| International Article Number | 5702424053727 |
| Low Clipping level | 4 |
| Medium temperature range [°C] [max] | 135 °C |
| Medium temperature range [°C] [min] | -40 °C |
| Output signal | Ratio metric |
| Overload pressure max. [bar] | 120 bar |
| Overload pressure max. [psi] | 1740 psi |
| Packing format | Multi pack |
| Pressure connection HEX [mm] | 27 mm |
| Pressure connection size | Solder tube |
| Pressure connection standard | For solder tube |
| Pressure connection type | Solder, ODM |
| Pressure Male/Female | Male |
| Pressure range [bar] [max] | 30 bar |
| Pressure range [bar] [min] | 0 bar |
| Pressure range [psi] [max] | 435 psi |
| Pressure range [psi] [min] | 0 psi |
| Pressure reference | Sealed gauge |
| Pulse-snubber | No |
| Quantity per packing format | 28 pc |
| Ratiometric of Vsupply [%] [max] | 90 % |
| Ratiometric of Vsupply [%] [min] | 10 % |
| REACH Candidate List substances | No |
| Response time max. [ms] | 2 ms |
| Specification key | DST P110-C836-C2EB07-0 |
| Supply voltage [V] DC | 5 V |
| TEB inside CTR ±FS [%] | 2.5 % |
| UL mark | Yes |
| Wetted part material | 304L/316L |
| + output | Pin C |
| + supply | Pin B |
| - common | Pin A |
| Ambient temperature range [°C] [max] | 125 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| CE mark | Yes |
| China RoHS compliance | Out of scope |
| Compensated temp. range [°C] [max] | 125 °C |
| Compensated temp. range [°C] [min] | -40 °C |
| Contains batteries | No |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical connection | Round Packard Metri-Pack |
| Electrical connection size | 3 pin |
| Electrical connection standard | 150.2 SERIES |
| Electrical Connector Color | Black |
| Enclosure rating IP | IP69K |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Fault signal level | 2 |
| High Clipping Level | 99 |
| Housing material | 304L |
| Identical product | 075G4050 |
| In scope of WEEE | Yes |
| International Article Number | 5702424053727 |
| Low Clipping level | 4 |
| Medium temperature range [°C] [max] | 135 °C |
| Medium temperature range [°C] [min] | -40 °C |
| Output signal | Ratio metric |
| Overload pressure max. [bar] | 120 bar |
| Overload pressure max. [psi] | 1740 psi |
| Packing format | Multi pack |
| Pressure connection HEX [mm] | 27 mm |
| Pressure connection size | Solder tube |
| Pressure connection standard | For solder tube |
| Pressure connection type | Solder, ODM |
| Pressure Male/Female | Male |
| Pressure range [bar] [max] | 30 bar |
| Pressure range [bar] [min] | 0 bar |
| Pressure range [psi] [max] | 435 psi |
| Pressure range [psi] [min] | 0 psi |
| Pressure reference | Sealed gauge |
| Pulse-snubber | No |
| Quantity per packing format | 28 pc |
| Ratiometric of Vsupply [%] [max] | 90 % |
| Ratiometric of Vsupply [%] [min] | 10 % |
| REACH Candidate List substances | No |
| Response time max. [ms] | 2 ms |
| Specification key | DST P110-C836-C2EB07-0 |
| Supply voltage [V] DC | 5 V |
| TEB inside CTR ±FS [%] | 2.5 % |
| UL mark | Yes |
| Wetted part material | 304L/316L |
