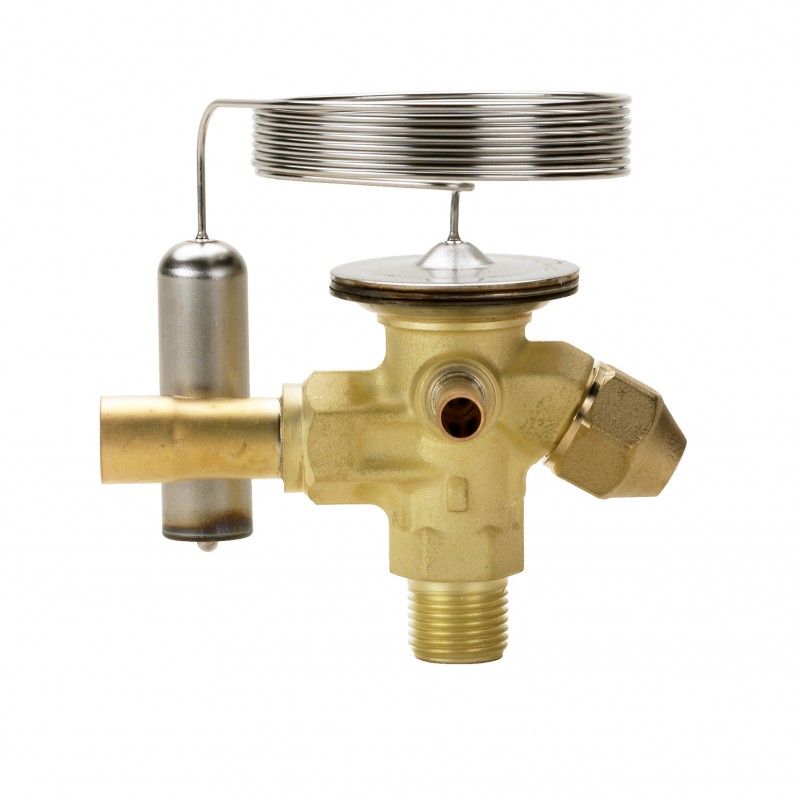

068Z7006 DANFOSS REFRIGERATION Thermostatic expansion valve, TE 2
068Z7006
DANFOSS REFRIGERATION
45
Thermostatic expansion valve, TE 2
Home > DANFOSS REFRIGERATION
* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Product name: Thermostatic expansion valve, Type: TES 2, Inlet size [in]: 3/8 IN, Inlet connection type: FLARE, Outlet size [in]: 1/2 IN, Outlet connection type: SOLDER, Externally equalized
| Gross weight | 0.3 Kg |
| Net weight | 0.28 Kg |
| EAN | 5702428032919 |
| Approval | EAC LLC CDC TYSK |
| Body material | Brass |
| Capillary tube length [in] | 59 in |
| Capillary tube length [mm] | 1500 mm |
| Category | Art. 4, par. 3 |
| Connection material | Brass Copper |
| Direction | Angleway |
| Equalization connection type | SOLDER |
| Equalization size [in] | 1/4 IN |
| Flow direction | Single-flow |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | II |
| Identical product | 068Z3421 |
| Inlet connection type | FLARE |
| Inlet size [in] | 3/8 IN |
| Max. Working Pressure [bar] | 34 bar |
| Max. Working Pressure [psig] | 500 psig |
| MOP Point [psig] | MOP 30 |
| MOP Point [°C] | -20 °C |
| MOP Point [°F] | -5 °F |
| Outlet connection type | SOLDER |
| Outlet size [in] | 1/2 IN |
| Packing format | Industrial pack |
| Parts included | Bulb strap |
| Parts Program name | T2/TE2 |
| Pressure equalization | Externally equalized |
| Product accessories | TXV accessories |
| Product family name | T2 |
| Product Group | Expansion valves |
| Product name | Thermostatic expansion valve |
| Product type | TE 2 |
| Quantity per packing format | 45 pc |
| Refrigerants | R404A/R507 |
| Serviceable | TXV spare parts |
| Static Superheat (SS) [°C] | 4 °C |
| Static Superheat (SS) [°F] | 7.2 °F |
| Superheat setting | Adjustable |
| System line application | Liquid line |
| Temperature range [°C] [Max] | -25 °C |
| Temperature range [°C] [Min] | -60 °C |
| Temperature range [°F] [Max] | -15 °F |
| Temperature range [°F] [Min] | -75 °F |
