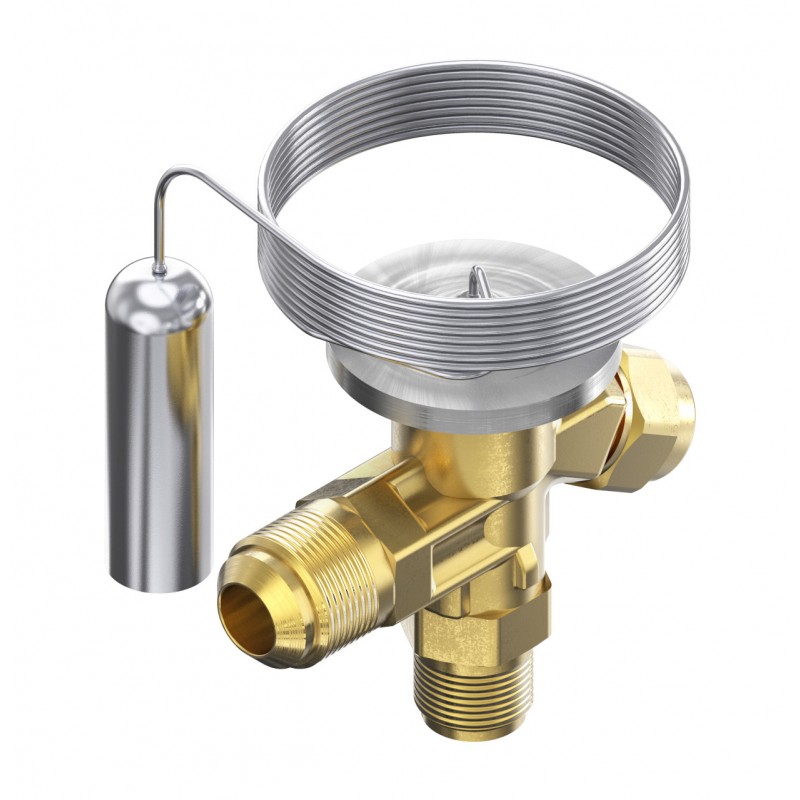

DANFOSS REFRIGERATION 068Z6040 068Z6040 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

068Z6040 DANFOSS REFRIGERATION Thermostatic expansion valve

Reference: 068Z6040

Manufacturer: DANFOSS REFRIGERATION

Description:

Thermostatic expansion valve
T 2 Therm. exp. valve Flare/Flare
Thermostatic expansion valve, T 2, R22/R407C

Categories:

  • DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

Temperature range [°C]: -40 - 10, Pressure equalization: Internally equalized

Product details

Gross weight0.33 Kilogram
Net weight0.297 Kilogram
Volume0.489 Liter
EAN5702422118725
TypeT 2
Product groupExpansion valves
Product Name DescriptionThermostatic expansion valve
Gross weight0.33 Kilogram
Net weight0.297 Kilogram
Volume0.489 Liter
EAN5702422118725
TypeT 2
Product groupExpansion valves
Product Name DescriptionThermostatic expansion valve

ApprovalLLC CDC TYSK
Body materialBrass
Capillary tube length [in]59 in
Capillary tube length [mm]1500 mm
China RoHS complianceYes with exemptions
Connection materialBrass
Contains batteriesNo
DirectionAngleway
EU RoHS complianceYes with exemptions
EU RoHS exemption clause6(a)
6(c)
Flow directionSingle-flow
Flow direction indicatorEmbossed 1-way arrow
Fluid Group2
Inlet connection typeFlare
Inlet size [in]3/8 in
Max. Working Pressure [bar]34 bar
Max. Working Pressure [psig]500 psig
Orifice capacities [kW]3.5 kW
Orifice capacities [TR]1 TR
Orifice size01
Outlet connection typeFlare
Outlet size [in]1/2 in
Packing formatMulti pack
Parts includedBulb strap
Parts Program nameT2/TE2
PED categoryArt. 4, par. 3
Pressure equalizationInternally equalized
Product accessoriesTXV accessories
Quantity per packing format20 pc
Rated cap. cond. Range N [IMP]OS=10.8 ºF
tcond=100 ºF
tevap=40 ºF
tliq=98 ºF
Rated cap. cond. Range N [SI]OS=6K
tcond=38 ºC
tevap=4.4 ºC
tliq=37 ºC
REACH Candidate List substancesLead (CAS no. 7439-92-1)
RefrigerantsR22/R407C
SCIP dossier no.c164ed45-f10d-4d73-9eae-355ccb479f4b
SCIP dossier product nameT2 /TE2 - Thermostatic Expansion Valve
ServiceableTXV spare parts
Static Superheat (SS) [°C]4 °C
Static Superheat (SS) [°F]7.2 °F
Superheat settingAdjustable
Temperature range [°C] [max]10 °C
Temperature range [°C] [min]-40 °C
Temperature range [°F] [max]50 °F
Temperature range [°F] [min]-40 °F
ApprovalLLC CDC TYSK
Body materialBrass
Capillary tube length [in]59 in
Capillary tube length [mm]1500 mm
China RoHS complianceYes with exemptions
Connection materialBrass
Contains batteriesNo
DirectionAngleway
EU RoHS complianceYes with exemptions
EU RoHS exemption clause6(a)
6(c)
Flow directionSingle-flow
Flow direction indicatorEmbossed 1-way arrow
Fluid Group2
Inlet connection typeFlare
Inlet size [in]3/8 in
Max. Working Pressure [bar]34 bar
Max. Working Pressure [psig]500 psig
Orifice capacities [kW]3.5 kW
Orifice capacities [TR]1 TR
Orifice size01
Outlet connection typeFlare
Outlet size [in]1/2 in
Packing formatMulti pack
Parts includedBulb strap
Parts Program nameT2/TE2
PED categoryArt. 4, par. 3
Pressure equalizationInternally equalized
Product accessoriesTXV accessories
Quantity per packing format20 pc
Rated cap. cond. Range N [IMP]OS=10.8 ºF
tcond=100 ºF
tevap=40 ºF
tliq=98 ºF
Rated cap. cond. Range N [SI]OS=6K
tcond=38 ºC
tevap=4.4 ºC
tliq=37 ºC
REACH Candidate List substancesLead (CAS no. 7439-92-1)
RefrigerantsR22/R407C
SCIP dossier no.c164ed45-f10d-4d73-9eae-355ccb479f4b
SCIP dossier product nameT2 /TE2 - Thermostatic Expansion Valve
ServiceableTXV spare parts
Static Superheat (SS) [°C]4 °C
Static Superheat (SS) [°F]7.2 °F
Superheat settingAdjustable
Temperature range [°C] [max]10 °C
Temperature range [°C] [min]-40 °C
Temperature range [°F] [max]50 °F
Temperature range [°F] [min]-40 °F
