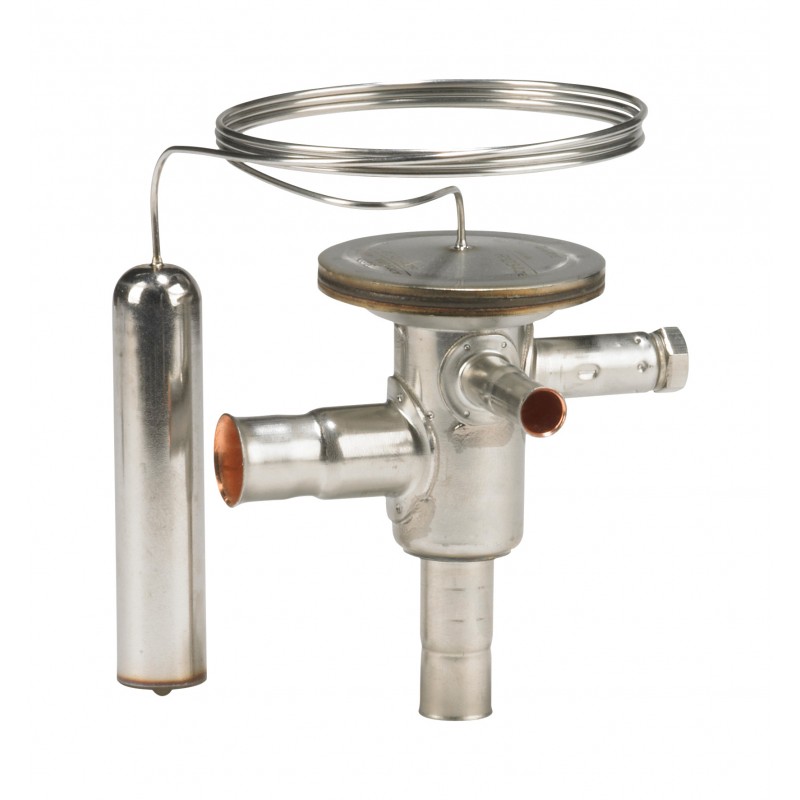

068U4588 DANFOSS REFRIGERATION Hot gas bypass regulator
Reference: 068U4588
Manufacturer: DANFOSS REFRIGERATION
Description:
Hot gas bypass regulator
TCHE/a Hot gas bypass reg
Hot gas bypass regulator, TCHE
Categories:
- DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
- More Info
- Reviews
* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
LAST VIEWED
MORE INFO
Inlet connection type: Solder, ODF, Outlet connection type: Solder, ODF, Temperature range [°C]: -5 - 5, Orifice capacities [kW]: 10, Pressure equalization: Externally equalized
Product details
| Gross weight | 0.199 Kilogram |
| Net weight | 0.179 Kilogram |
| Volume | 0.489 Liter |
| EAN | 5702428942058 |
| Type | TCHE |
| Product group | Press. and temp. regul. valves |
| Product Name Description | Hot gas bypass regulator |
| Gross weight | 0.199 Kilogram |
| Net weight | 0.179 Kilogram |
| Volume | 0.489 Liter |
| EAN | 5702428942058 |
| Type | TCHE |
| Product group | Press. and temp. regul. valves |
| Product Name Description | Hot gas bypass regulator |
| Approval | EAC LLC CDC TYSK |
| Body material | Stainless steel |
| Capillary tube length [in] | 35 in |
| Capillary tube length [mm] | 900 mm |
| China RoHS compliance | Yes with exemptions |
| Connection material | Bi-metal: Steel/copper |
| Contains batteries | No |
| Direction | Angleway |
| Equalization connection type | Solder, ODF |
| Equalization size [in] | 1/4 in |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(a) 6(c) |
| Flow direction | Single-flow |
| Flow direction indicator | Laser engraved 1-way arrow |
| Fluid Group | 2 |
| Identical product | 068U4559 |
| Inlet connection type | Solder, ODF |
| Inlet size [in] | 3/8 in |
| Max. Working Pressure [bar] | 45.5 bar |
| Max. Working Pressure [psig] | 660 psig |
| Orifice capacities [kW] | 10 kW |
| Orifice capacities [TR] | 2.9 TR |
| Orifice size | 3 |
| Outlet connection type | Solder, ODF |
| Outlet size [in] | 1/2 in |
| Packing format | Multi pack |
| Parts included | Bulb strap |
| PED category | Art. 4, par. 3 |
| Pressure equalization | Externally equalized |
| Product accessories | TXV accessories |
| Quantity per packing format | 20 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R410A |
| SCIP dossier no. | 07795324-de66-41b2-9761-afe6640e393c |
| SCIP dossier product name | TU/TC - Thermostatic expansion valve |
| Seal | No |
| Serviceable | No |
| Static Superheat (SS) [°C] | 2 °C |
| Static Superheat (SS) [°F] | 3.6 °F |
| Superheat setting | Adjustable |
| Temperature range [°C] [max] | 5 °C |
| Temperature range [°C] [min] | -5 °C |
| Temperature range [°F] [max] | 41 °F |
| Temperature range [°F] [min] | 23 °F |
| UA address | UA_2L.png |
| Approval | EAC LLC CDC TYSK |
| Body material | Stainless steel |
| Capillary tube length [in] | 35 in |
| Capillary tube length [mm] | 900 mm |
| China RoHS compliance | Yes with exemptions |
| Connection material | Bi-metal: Steel/copper |
| Contains batteries | No |
| Direction | Angleway |
| Equalization connection type | Solder, ODF |
| Equalization size [in] | 1/4 in |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(a) 6(c) |
| Flow direction | Single-flow |
| Flow direction indicator | Laser engraved 1-way arrow |
| Fluid Group | 2 |
| Identical product | 068U4559 |
| Inlet connection type | Solder, ODF |
| Inlet size [in] | 3/8 in |
| Max. Working Pressure [bar] | 45.5 bar |
| Max. Working Pressure [psig] | 660 psig |
| Orifice capacities [kW] | 10 kW |
| Orifice capacities [TR] | 2.9 TR |
| Orifice size | 3 |
| Outlet connection type | Solder, ODF |
| Outlet size [in] | 1/2 in |
| Packing format | Multi pack |
| Parts included | Bulb strap |
| PED category | Art. 4, par. 3 |
| Pressure equalization | Externally equalized |
| Product accessories | TXV accessories |
| Quantity per packing format | 20 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R410A |
| SCIP dossier no. | 07795324-de66-41b2-9761-afe6640e393c |
| SCIP dossier product name | TU/TC - Thermostatic expansion valve |
| Seal | No |
| Serviceable | No |
| Static Superheat (SS) [°C] | 2 °C |
| Static Superheat (SS) [°F] | 3.6 °F |
| Superheat setting | Adjustable |
| Temperature range [°C] [max] | 5 °C |
| Temperature range [°C] [min] | -5 °C |
| Temperature range [°F] [max] | 41 °F |
| Temperature range [°F] [min] | 23 °F |
| UA address | UA_2L.png |
