DANFOSS REFRIGERATION068U4548 DANFOSS REFRIGERATION Hot gas bypass regulator

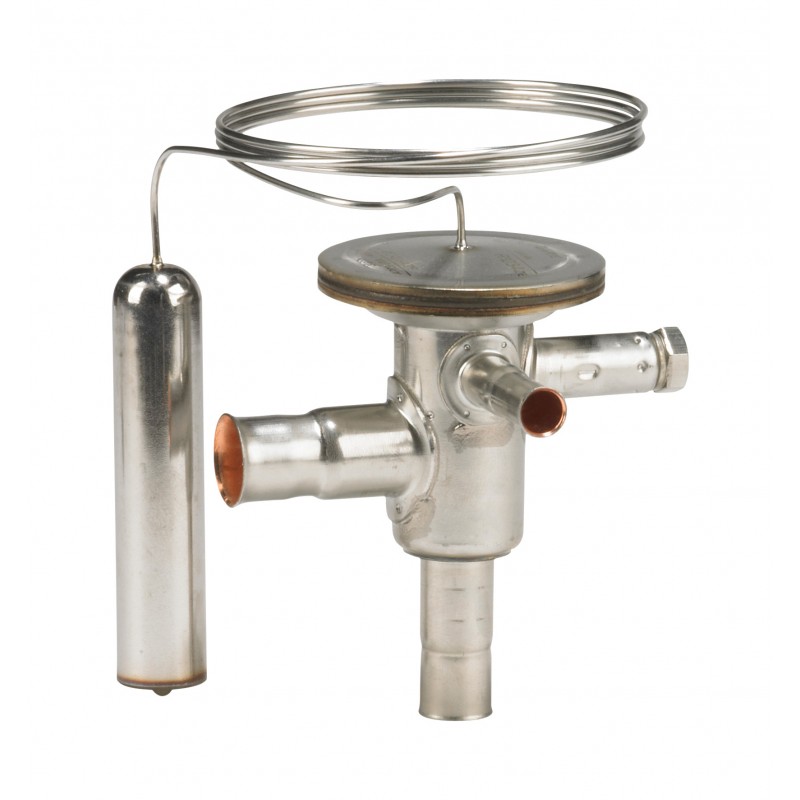

DANFOSS REFRIGERATION 068U4548 068U4548 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

068U4548 DANFOSS REFRIGERATION Hot gas bypass regulator

Reference: 068U4548

Manufacturer: DANFOSS REFRIGERATION

Description:

Hot gas bypass regulator
Hot gas bypass regulator, TCHE

Categories:

  • DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 7.527,24 €

Unit Price: 167,272 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 4-5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Inlet connection type: Solder, ODF, Outlet connection type: Solder, ODF, Temperature range [°C]: -1 - 9, Orifice capacities [kW]: 10.00, Pressure equalization: Externally equalized

Product details

Gross weight0.195 Kilogram
Net weight0.179 Kilogram
Volume0.5 Liter
EAN5702428078979
Gross weight0.195 Kilogram
Net weight0.179 Kilogram
Volume0.5 Liter
EAN5702428078979

ApprovalEAC
LLC CDC TYSK
Body materialStainless steel
Capillary tube length [in]35 in
Capillary tube length [mm]900 mm
China RoHS complianceYes exceed limitations
Connection materialBi-metal: Steel/copper
DirectionAngleway
Equalization connection typeSolder, ODF
Equalization size [in]1/4 in
EU RoHS complianceYes with exemptions
EU RoHS exemption clause6(a)
6(c)
Flow directionSingle-flow
Flow direction indicatorLaser engraved 1-way arrow
Fluid Group2
Identical product068U4585
In scope of WEEE and contain batteriesNo
Inlet connection typeSolder, ODF
Inlet size [in]3/8 in
Max. Working Pressure [bar]45.5 bar
Max. Working Pressure [psig]660 psig
Orifice capacities [kW]10 kW
Orifice capacities [TR]2.9 TR
Orifice size3
Outlet connection typeSolder, ODF
Outlet size [in]1/2 in
Packing formatIndustrial pack
Parts includedBulb strap
PED categoryArt. 4, par. 3
Pressure equalizationExternally equalized
Product accessoriesTXV accessories
Product groupPress. and temp. regul. valves
Product Name DescriptionHot gas bypass regulator
Quantity per packing format45 pc
REACH Candidate List substancesLead (CAS no. 7439-92-1)
RefrigerantsR410A
SCIP dossier no.07795324-de66-41b2-9761-afe6640e393c
SCIP dossier product nameTU/TC - Thermostatic expansion valve
ServiceableNo
Static Superheat (SS) [°C]2 °C
Static Superheat (SS) [°F]3.6 °F
Superheat settingAdjustable
Temperature range [°C] [max]9 °C
Temperature range [°C] [min]-1 °C
Temperature range [°F] [max]48 °F
Temperature range [°F] [min]30 °F
TypeTCHE
UK RoHS complianceOut of scope
ApprovalEAC
LLC CDC TYSK
Body materialStainless steel
Capillary tube length [in]35 in
Capillary tube length [mm]900 mm
China RoHS complianceYes exceed limitations
Connection materialBi-metal: Steel/copper
DirectionAngleway
Equalization connection typeSolder, ODF
Equalization size [in]1/4 in
EU RoHS complianceYes with exemptions
EU RoHS exemption clause6(a)
6(c)
Flow directionSingle-flow
Flow direction indicatorLaser engraved 1-way arrow
Fluid Group2
Identical product068U4585
In scope of WEEE and contain batteriesNo
Inlet connection typeSolder, ODF
Inlet size [in]3/8 in
Max. Working Pressure [bar]45.5 bar
Max. Working Pressure [psig]660 psig
Orifice capacities [kW]10 kW
Orifice capacities [TR]2.9 TR
Orifice size3
Outlet connection typeSolder, ODF
Outlet size [in]1/2 in
Packing formatIndustrial pack
Parts includedBulb strap
PED categoryArt. 4, par. 3
Pressure equalizationExternally equalized
Product accessoriesTXV accessories
Product groupPress. and temp. regul. valves
Product Name DescriptionHot gas bypass regulator
Quantity per packing format45 pc
REACH Candidate List substancesLead (CAS no. 7439-92-1)
RefrigerantsR410A
SCIP dossier no.07795324-de66-41b2-9761-afe6640e393c
SCIP dossier product nameTU/TC - Thermostatic expansion valve
ServiceableNo
Static Superheat (SS) [°C]2 °C
Static Superheat (SS) [°F]3.6 °F
Superheat settingAdjustable
Temperature range [°C] [max]9 °C
Temperature range [°C] [min]-1 °C
Temperature range [°F] [max]48 °F
Temperature range [°F] [min]30 °F
TypeTCHE
UK RoHS complianceOut of scope
