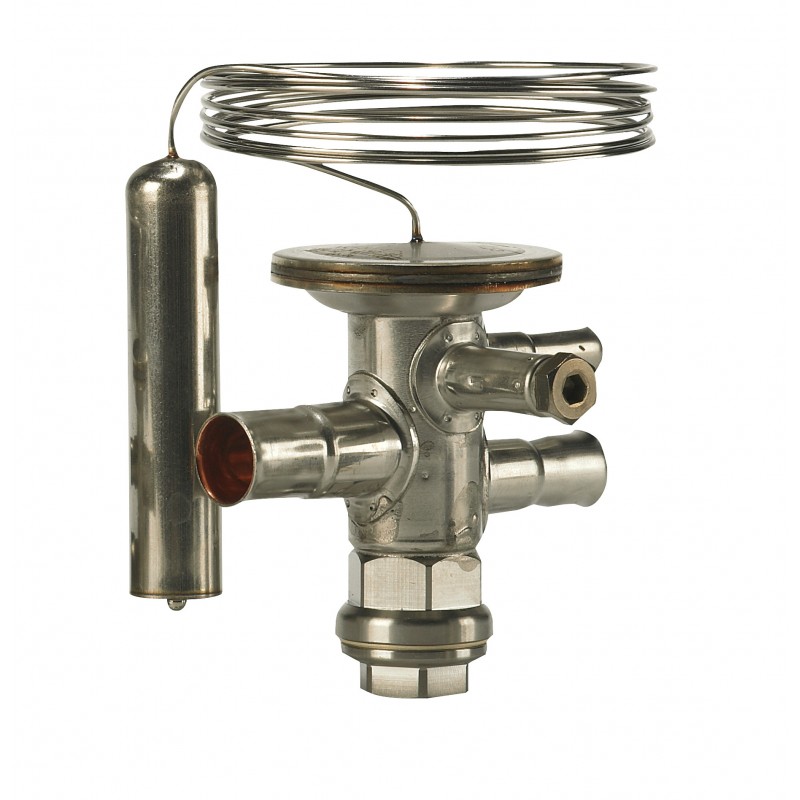

DANFOSS REFRIGERATION 068U4369 068U4369 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

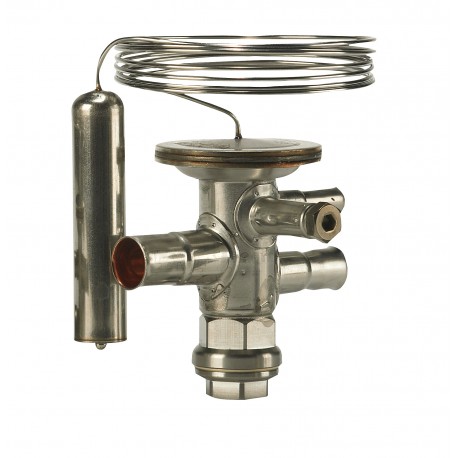

068U4369 DANFOSS REFRIGERATION Thermostatic expansion valve

Name: 068U4369 DANFOSS REFRIGERATION Thermostatic expansion valve
Brand: DANFOSS REFRIGERATION
SKU: DAO068U4369
Price: 344.07 USD
Availability: OutOfStock

Reference: 068U4369

Manufacturer: DANFOSS REFRIGERATION

Description:

Thermostatic expansion valve

TCAE/s Therm. exp. valve

Thermostatic expansion valve, TCAE, R23

Categories:

DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

More Info
Reviews

Guarantee, repair and return.

Unit Price: 293,90 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 4-5 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

LAST VIEWED

MORE INFO

Temperature range [°C]: -100 - -70, Pressure equalization: Externally equalized

Product details

Gross weight	0.22 Kilogram
Net weight	0.198 Kilogram
Volume	0.489 Liter
EAN	5702428083607

Type	TCAE
Product group	Expansion valves
Product Name Description	Thermostatic expansion valve

Gross weight	0.22 Kilogram
Net weight	0.198 Kilogram
Volume	0.489 Liter
EAN	5702428083607
Type	TCAE
Product group	Expansion valves
Product Name Description	Thermostatic expansion valve

Approval	EAC LLC CDC TYSK
Body material	Stainless steel
Capillary tube length [in]	59 in
Capillary tube length [mm]	1500 mm
China RoHS compliance	Yes with exemptions
Connection material	Bi-metal: Steel/copper
Contains batteries	No
Direction	Straightway
Equalization connection type	Solder, ODF
Equalization size [mm]	6 mm
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(a) 6(c)
Flow direction	Single-flow
Flow direction indicator	Laser engraved 1-way arrow
Fluid Group	2
Inlet connection type	Solder, ODF
Inlet size [mm]	10 mm
Max. Working Pressure [bar]	45.5 bar
Max. Working Pressure [psig]	660 psig
MOP Point [psig]	MOP 20
MOP Point [°C]	-65 °C
MOP Point [°F]	-85 °F
Outlet connection type	Solder, ODF
Outlet size [mm]	12 mm

Packing format	Multi pack
Parts included	Bulb strap
Parts Program name	TCA
PED category	Art. 4, par. 3
Pressure equalization	Externally equalized
Product accessories	TXV accessories
Quantity per packing format	20 pc
Rated cap. cond. Range N [IMP]	OS=7.2 ºF tcond=100 ºF tevap=40 ºF tliq=98 ºF
Rated cap. cond. Range N [SI]	OS=4K tcond=38 ºC tevap=4.4 ºC tliq=37 ºC
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Refrigerants	R23
SCIP dossier no.	07795324-de66-41b2-9761-afe6640e393c
SCIP dossier product name	TU/TC - Thermostatic expansion valve
Seal	No
Serviceable	TXV spare parts
Static Superheat (SS) [°C]	4 °C
Static Superheat (SS) [°F]	7.2 °F
Superheat setting	Adjustable
Temperature range [°C] [max]	-70 °C
Temperature range [°C] [min]	-100 °C
Temperature range [°F] [max]	-95 °F
Temperature range [°F] [min]	-148 °F
UA address	UA_2L.png
UL approved refrigerants	R23

Approval	EAC LLC CDC TYSK
Body material	Stainless steel
Capillary tube length [in]	59 in
Capillary tube length [mm]	1500 mm
China RoHS compliance	Yes with exemptions
Connection material	Bi-metal: Steel/copper
Contains batteries	No
Direction	Straightway
Equalization connection type	Solder, ODF
Equalization size [mm]	6 mm
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(a) 6(c)
Flow direction	Single-flow
Flow direction indicator	Laser engraved 1-way arrow
Fluid Group	2
Inlet connection type	Solder, ODF
Inlet size [mm]	10 mm
Max. Working Pressure [bar]	45.5 bar
Max. Working Pressure [psig]	660 psig
MOP Point [psig]	MOP 20
MOP Point [°C]	-65 °C
MOP Point [°F]	-85 °F
Outlet connection type	Solder, ODF
Outlet size [mm]	12 mm
Packing format	Multi pack
Parts included	Bulb strap
Parts Program name	TCA
PED category	Art. 4, par. 3
Pressure equalization	Externally equalized
Product accessories	TXV accessories
Quantity per packing format	20 pc
Rated cap. cond. Range N [IMP]	OS=7.2 ºF tcond=100 ºF tevap=40 ºF tliq=98 ºF
Rated cap. cond. Range N [SI]	OS=4K tcond=38 ºC tevap=4.4 ºC tliq=37 ºC
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Refrigerants	R23
SCIP dossier no.	07795324-de66-41b2-9761-afe6640e393c
SCIP dossier product name	TU/TC - Thermostatic expansion valve
Seal	No
Serviceable	TXV spare parts
Static Superheat (SS) [°C]	4 °C
Static Superheat (SS) [°F]	7.2 °F
Superheat setting	Adjustable
Temperature range [°C] [max]	-70 °C
Temperature range [°C] [min]	-100 °C
Temperature range [°F] [max]	-95 °F
Temperature range [°F] [min]	-148 °F
UA address	UA_2L.png
UL approved refrigerants	R23
