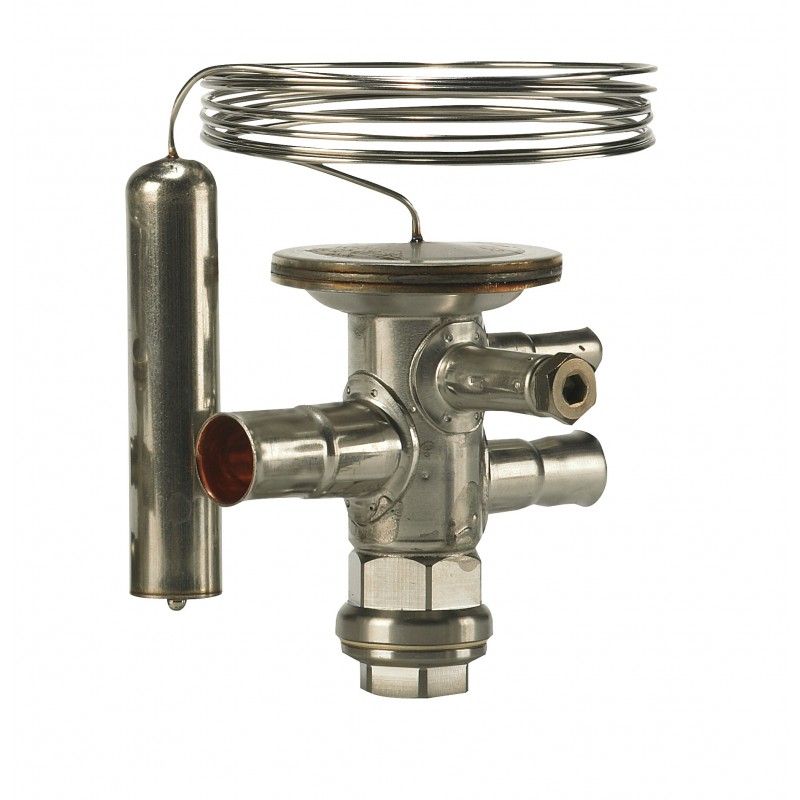

068U4283 DANFOSS REFRIGERATION Thermostatic expansion valve
Reference: 068U4283
Manufacturer: DANFOSS REFRIGERATION
Description:
Thermostatic expansion valve
TCAE/s Therm. exp. valve
Thermostatic expansion valve, TCAE, R22/R407C
Categories:
- DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
- More Info
- Reviews
* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
LAST VIEWED
MORE INFO
Temperature range [°C]: -40 - 10, Pressure equalization: Externally equalized
Product details
| Gross weight | 0.22 Kilogram |
| Net weight | 0.202 Kilogram |
| Volume | 0.489 Liter |
| EAN | 5702428052122 |
| Type | TCAE |
| Product group | Expansion valves |
| Product Name Description | Thermostatic expansion valve |
| Gross weight | 0.22 Kilogram |
| Net weight | 0.202 Kilogram |
| Volume | 0.489 Liter |
| EAN | 5702428052122 |
| Type | TCAE |
| Product group | Expansion valves |
| Product Name Description | Thermostatic expansion valve |
| Approval | EAC LLC CDC TYSK UL |
| Body material | Stainless steel |
| Capillary tube length [in] | 59 in |
| Capillary tube length [mm] | 1500 mm |
| China RoHS compliance | Yes with exemptions |
| Connection material | Bi-metal: Steel/copper |
| Contains batteries | No |
| Direction | Straightway |
| Equalization connection type | Solder, ODF |
| Equalization size [in] | 1/4 in |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(a) 6(c) |
| Flow direction | Single-flow |
| Flow direction indicator | Laser engraved 1-way arrow |
| Fluid Group | 2 |
| Inlet connection type | Solder, ODF |
| Inlet size [in] | 1/2 in |
| Max. Working Pressure [bar] | 45.5 bar |
| Max. Working Pressure [psig] | 660 psig |
| MOP Point [psig] | MOP 100 |
| MOP Point [°C] | 15 °C |
| MOP Point [°F] | 60 °F |
| Outlet connection type | Solder, ODF |
| Outlet size [in] | 5/8 in |
| Packing format | Multi pack |
| Parts included | Bulb strap |
| Parts Program name | TCA |
| PED category | Art. 4, par. 3 |
| Pressure equalization | Externally equalized |
| Product accessories | TXV accessories |
| Quantity per packing format | 20 pc |
| Rated cap. cond. Range N [IMP] | OS=7.2 ºF tcond=100 ºF tevap=40 ºF tliq=98 ºF |
| Rated cap. cond. Range N [SI] | OS=4K tcond=38 ºC tevap=4.4 ºC tliq=37 ºC |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R22/R407C |
| SCIP dossier no. | 07795324-de66-41b2-9761-afe6640e393c |
| SCIP dossier product name | TU/TC - Thermostatic expansion valve |
| Seal | Yes |
| Serviceable | TXV spare parts |
| Static Superheat (SS) [°C] | 4 °C |
| Static Superheat (SS) [°F] | 7.2 °F |
| Superheat setting | Adjustable |
| Temperature range [°C] [max] | 10 °C |
| Temperature range [°C] [min] | -40 °C |
| Temperature range [°F] [max] | 50 °F |
| Temperature range [°F] [min] | -40 °F |
| UA address | UA_2L.png |
| UL approved refrigerants | R22 R407C |
| UL mark | Yes |
| Approval | EAC LLC CDC TYSK UL |
| Body material | Stainless steel |
| Capillary tube length [in] | 59 in |
| Capillary tube length [mm] | 1500 mm |
| China RoHS compliance | Yes with exemptions |
| Connection material | Bi-metal: Steel/copper |
| Contains batteries | No |
| Direction | Straightway |
| Equalization connection type | Solder, ODF |
| Equalization size [in] | 1/4 in |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(a) 6(c) |
| Flow direction | Single-flow |
| Flow direction indicator | Laser engraved 1-way arrow |
| Fluid Group | 2 |
| Inlet connection type | Solder, ODF |
| Inlet size [in] | 1/2 in |
| Max. Working Pressure [bar] | 45.5 bar |
| Max. Working Pressure [psig] | 660 psig |
| MOP Point [psig] | MOP 100 |
| MOP Point [°C] | 15 °C |
| MOP Point [°F] | 60 °F |
| Outlet connection type | Solder, ODF |
| Outlet size [in] | 5/8 in |
| Packing format | Multi pack |
| Parts included | Bulb strap |
| Parts Program name | TCA |
| PED category | Art. 4, par. 3 |
| Pressure equalization | Externally equalized |
| Product accessories | TXV accessories |
| Quantity per packing format | 20 pc |
| Rated cap. cond. Range N [IMP] | OS=7.2 ºF tcond=100 ºF tevap=40 ºF tliq=98 ºF |
| Rated cap. cond. Range N [SI] | OS=4K tcond=38 ºC tevap=4.4 ºC tliq=37 ºC |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R22/R407C |
| SCIP dossier no. | 07795324-de66-41b2-9761-afe6640e393c |
| SCIP dossier product name | TU/TC - Thermostatic expansion valve |
| Seal | Yes |
| Serviceable | TXV spare parts |
| Static Superheat (SS) [°C] | 4 °C |
| Static Superheat (SS) [°F] | 7.2 °F |
| Superheat setting | Adjustable |
| Temperature range [°C] [max] | 10 °C |
| Temperature range [°C] [min] | -40 °C |
| Temperature range [°F] [max] | 50 °F |
| Temperature range [°F] [min] | -40 °F |
| UA address | UA_2L.png |
| UL approved refrigerants | R22 R407C |
| UL mark | Yes |
