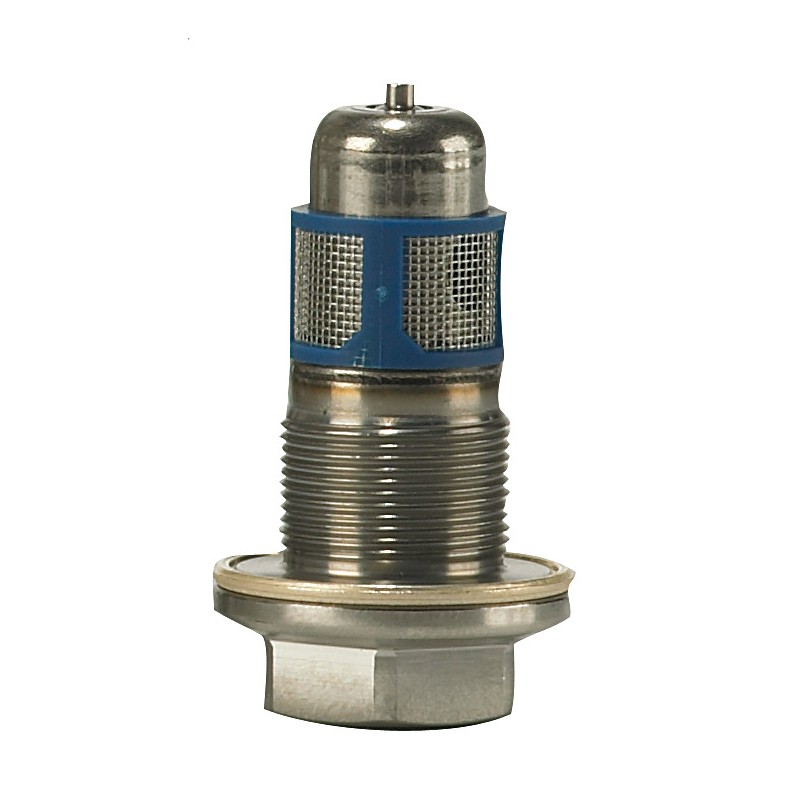

DANFOSS REFRIGERATION 068U4097 068U4097 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

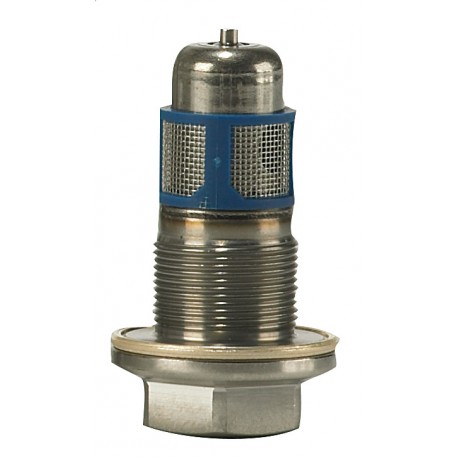

068U4097 DANFOSS REFRIGERATION Orifice for expansion valve

Name: 068U4097 DANFOSS REFRIGERATION Orifice for expansion valve
Brand: DANFOSS REFRIGERATION
SKU: DAO068U4097
Price: 111.97 USD
Availability: OutOfStock

Reference: 068U4097

Manufacturer: DANFOSS REFRIGERATION

Description:

Orifice for expansion valve

TCAE hole 1 15% Bleed

Orifice for expansion valve, ORF, R404A; R404A/R452A; R410A; R134a/R513A; R23; R407C; R452A; R404A/R507A; R513A; R448A; R450A; R22/R407C; R449A

Categories:

DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

More Info
PDF
Reviews

Guarantee, repair and return.

Unit Price: 95,25 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 4-5 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

LAST VIEWED

MORE INFO

Used for product: TCAE, Parts Program name: TCA, Packing format: Multi pack, Quantity per packing format: 9

Product details

Gross weight	0.048 Kilogram
Net weight	0.042 Kilogram
Volume	0.043 Liter
EAN	5702428051439

Type	ORF
Product group	Expansion valves
Product Name Description	Orifice for expansion valve

Gross weight	0.048 Kilogram
Net weight	0.042 Kilogram
Volume	0.043 Liter
EAN	5702428051439
Type	ORF
Product group	Expansion valves
Product Name Description	Orifice for expansion valve

Approval	EAC LLC CDC TYSK
Bleed [%]	15 %
BleedFlow [Nccm/min]	9200±3600
China RoHS compliance	Yes with exemptions
Contains batteries	No
Direction	Straightway
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(a) 6(c)
Fluid Group	1
Orifice size	1
Packing format	Multi pack
Parts Program name	TCA
PED category	Art. 4, par. 3
Product accessories	TXV accessories
Quantity per packing format	9 pc
Rated cap. cond. Range N [IMP]	OS=7.2 ºF tcond=100 ºF tevap=40 ºF tliq=98 ºF
Rated cap. cond. Range N [SI]	OS=4K tcond=38 ºC tevap=4.4 ºC tliq=37 ºC
Rated cap. R134a, Range N [kW]	12 kW
Rated cap. R134a, Range N [TR]	3.5 TR
Rated cap. R22, Range B [kW]	6.5 kW
Rated cap. R22, Range B [TR]	1.8 TR
Rated cap. R22, Range N [kW]	17.5 kW

Rated cap. R22, Range N [TR]	5 TR
Rated cap. R404A, Range N [kW]	13.5 kW
Rated cap. R404A, Range N [TR]	3.8 TR
Rated cap. R407C, Range N [kW]	19 kW
Rated cap. R407C, Range N [TR]	5.4 TR
Rated cap. R410A, Range N [kW]	23 kW
Rated cap. R410A, Range N [TR]	6.5 TR
Rated cap. R507, Range N [kW]	13.5 kW
Rated cap. R507, Range N [TR]	3.8 TR
Rated cap. R513A, Range N [kW]	11.5 kW
Rated cap. R513A, Range N [TR]	3.3 TR
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Refrigerants	R134a/R513A R22/R407C R23 R404A R404A/R452A R404A/R507A R407C R410A R448A R449A R450A R452A R513A
SCIP dossier no.	07795324-de66-41b2-9761-afe6640e393c
SCIP dossier product name	TU/TC - Thermostatic expansion valve
Serviceable	No
Temperature range [°C] [max]	10 °C
Temperature range [°C] [min]	-40 °C
Temperature range [°F] [max]	50 °F
Temperature range [°F] [min]	-40 °F
Used for product	TCAE

Approval	EAC LLC CDC TYSK
Bleed [%]	15 %
BleedFlow [Nccm/min]	9200±3600
China RoHS compliance	Yes with exemptions
Contains batteries	No
Direction	Straightway
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(a) 6(c)
Fluid Group	1
Orifice size	1
Packing format	Multi pack
Parts Program name	TCA
PED category	Art. 4, par. 3
Product accessories	TXV accessories
Quantity per packing format	9 pc
Rated cap. cond. Range N [IMP]	OS=7.2 ºF tcond=100 ºF tevap=40 ºF tliq=98 ºF
Rated cap. cond. Range N [SI]	OS=4K tcond=38 ºC tevap=4.4 ºC tliq=37 ºC
Rated cap. R134a, Range N [kW]	12 kW
Rated cap. R134a, Range N [TR]	3.5 TR
Rated cap. R22, Range B [kW]	6.5 kW
Rated cap. R22, Range B [TR]	1.8 TR
Rated cap. R22, Range N [kW]	17.5 kW
Rated cap. R22, Range N [TR]	5 TR
Rated cap. R404A, Range N [kW]	13.5 kW
Rated cap. R404A, Range N [TR]	3.8 TR
Rated cap. R407C, Range N [kW]	19 kW
Rated cap. R407C, Range N [TR]	5.4 TR
Rated cap. R410A, Range N [kW]	23 kW
Rated cap. R410A, Range N [TR]	6.5 TR
Rated cap. R507, Range N [kW]	13.5 kW
Rated cap. R507, Range N [TR]	3.8 TR
Rated cap. R513A, Range N [kW]	11.5 kW
Rated cap. R513A, Range N [TR]	3.3 TR
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Refrigerants	R134a/R513A R22/R407C R23 R404A R404A/R452A R404A/R507A R407C R410A R448A R449A R450A R452A R513A
SCIP dossier no.	07795324-de66-41b2-9761-afe6640e393c
SCIP dossier product name	TU/TC - Thermostatic expansion valve
Serviceable	No
Temperature range [°C] [max]	10 °C
Temperature range [°C] [min]	-40 °C
Temperature range [°F] [max]	50 °F
Temperature range [°F] [min]	-40 °F
Used for product	TCAE
