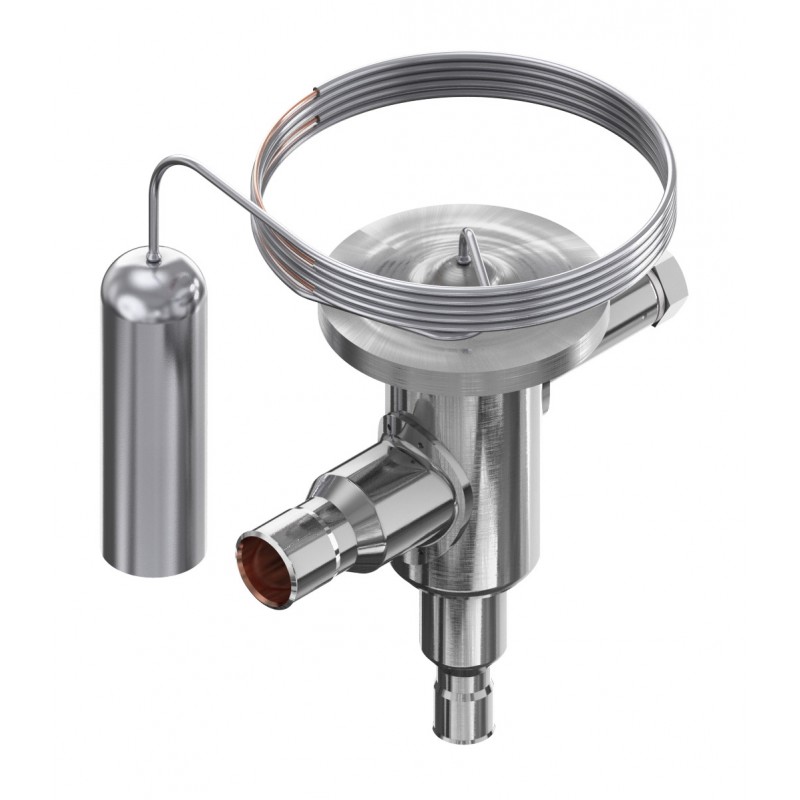

068U2060 DANFOSS REFRIGERATION Thermostatic expansion valve, TUB
068U2060
DANFOSS REFRIGERATION
Thermostatic expansion valve, TUB
Thermostatic expansion valve, TUB, R22/R407C
Home > DANFOSS REFRIGERATION
* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Temperature range [°C]: -40 - 10, Orifice capacities [kW]: 2.60, Orifice capacities [TR]: 0.75, Pressure equalization: Internally equalized
Product details
| Gross weight | 0.156 Kg |
| Net weight | 0.146 Kg |
| Volume | 0.386 Liter |
| EAN | 5702422139621 |
| Gross weight | 0.156 Kg |
| Net weight | 0.146 Kg |
| Volume | 0.386 Liter |
| EAN | 5702422139621 |
| Approval | EAC LLC CDC TYSK UL |
| Body material | Stainless steel |
| Capillary tube length [in] | 31 in |
| Capillary tube length [mm] | 800 mm |
| Connection material | Bi-metal: Steel/copper |
| Direction | Angleway |
| EU RoHS compliance | Yes with exemptions |
| Flow direction | Single-flow |
| Flow direction indicator | Laser engraved 1-way arrow |
| Fluid Group | 2 |
| In scope of WEEE and contain batteries | No |
| Inlet connection type | Solder, ODF |
| Inlet size [in] | 1/4 in |
| Max. Working Pressure [bar] | 34 bar |
| Max. Working Pressure [psig] | 500 psig |
| Orifice capacities [kW] | 2.6 kW |
| Orifice capacities [TR] | 0.75 TR |
| Orifice size | 4 |
| Outlet connection type | Solder, ODF |
| Outlet size [in] | 1/2 in |
| Packing format | Multi pack |
| Parts included | Bulb strap |
| PED category | Art. 4, par. 3 |
| Pressure equalization | Internally equalized |
| Product accessories | TXV accessories |
| Product group | Expansion valves |
| Product Name Description | Thermostatic expansion valve |
| Quantity per packing format | 24 pc |
| Rated cap. cond. Range N [IMP] | OS=7.2 ºF tcond=100 ºF tevap=40 ºF tliq=98 ºF |
| Rated cap. cond. Range N [SI] | OS=4K tcond=38 ºC tevap=4.4 ºC tliq=37 ºC |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R22/R407C |
| SCIP dossier no. | 07795324-de66-41b2-9761-afe6640e393c |
| SCIP dossier product name | TU/TC |
| Serviceable | No |
| Static Superheat (SS) [°C] | 4 °C |
| Static Superheat (SS) [°F] | 7.2 °F |
| Superheat setting | Adjustable |
| Temperature range [°C] [max] | 10 °C |
| Temperature range [°C] [min] | -40 °C |
| Temperature range [°F] [max] | 50 °F |
| Temperature range [°F] [min] | -40 °F |
| Type | TUB |
| UL approved refrigerants | R22 R407C |
| Approval | EAC LLC CDC TYSK UL |
| Body material | Stainless steel |
| Capillary tube length [in] | 31 in |
| Capillary tube length [mm] | 800 mm |
| Connection material | Bi-metal: Steel/copper |
| Direction | Angleway |
| EU RoHS compliance | Yes with exemptions |
| Flow direction | Single-flow |
| Flow direction indicator | Laser engraved 1-way arrow |
| Fluid Group | 2 |
| In scope of WEEE and contain batteries | No |
| Inlet connection type | Solder, ODF |
| Inlet size [in] | 1/4 in |
| Max. Working Pressure [bar] | 34 bar |
| Max. Working Pressure [psig] | 500 psig |
| Orifice capacities [kW] | 2.6 kW |
| Orifice capacities [TR] | 0.75 TR |
| Orifice size | 4 |
| Outlet connection type | Solder, ODF |
| Outlet size [in] | 1/2 in |
| Packing format | Multi pack |
| Parts included | Bulb strap |
| PED category | Art. 4, par. 3 |
| Pressure equalization | Internally equalized |
| Product accessories | TXV accessories |
| Product group | Expansion valves |
| Product Name Description | Thermostatic expansion valve |
| Quantity per packing format | 24 pc |
| Rated cap. cond. Range N [IMP] | OS=7.2 ºF tcond=100 ºF tevap=40 ºF tliq=98 ºF |
| Rated cap. cond. Range N [SI] | OS=4K tcond=38 ºC tevap=4.4 ºC tliq=37 ºC |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R22/R407C |
| SCIP dossier no. | 07795324-de66-41b2-9761-afe6640e393c |
| SCIP dossier product name | TU/TC |
| Serviceable | No |
| Static Superheat (SS) [°C] | 4 °C |
| Static Superheat (SS) [°F] | 7.2 °F |
| Superheat setting | Adjustable |
| Temperature range [°C] [max] | 10 °C |
| Temperature range [°C] [min] | -40 °C |
| Temperature range [°F] [max] | 50 °F |
| Temperature range [°F] [min] | -40 °F |
| Type | TUB |
| UL approved refrigerants | R22 R407C |
Datasheet - PDF
