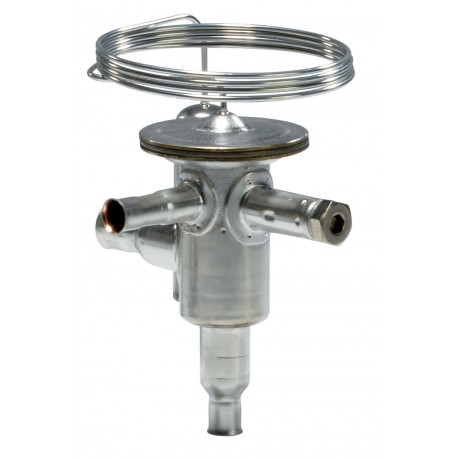

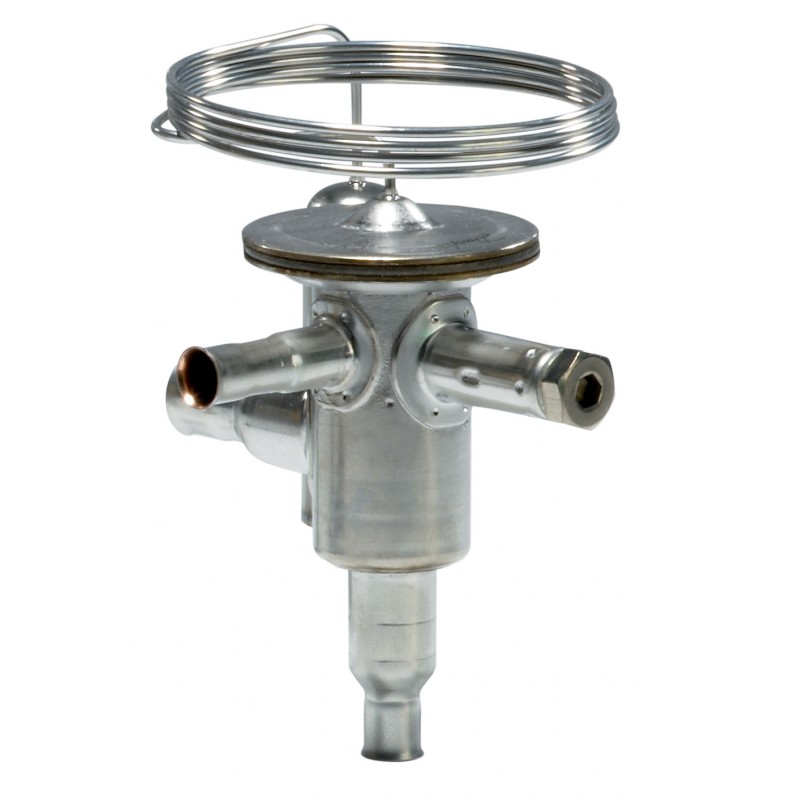

068U2025 DANFOSS REFRIGERATION Thermostatic expansion valve, TUBE
068U2025
DANFOSS REFRIGERATION
Thermostatic expansion valve, TUBE
Home > DANFOSS REFRIGERATION
* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
More info
▲Product name: Thermostatic expansion valve, Type: TUBE, Inlet connection type: SOLDER, ODF, Outlet connection type: SOLDER, ODF, Orifice capacities [TR]: 2.30, Pressure equalization: Externally equalized
| Gross weight | 0.17 Kg |
| Net weight | 0.15 Kg |
| EAN | 5702422137658 |
| Approval | EAC LLC CDC TYSK |
| Body material | Stainless steel |
| Capillary tube length [in] | 31 in |
| Capillary tube length [mm] | 800 mm |
| Category | Art. 4, par. 3 |
| Connection material | Bi-metal: Steel/copper |
| Direction | Angleway |
| Equalization connection type | SOLDER, ODF |
| Equalization size [in] | 1/4 IN |
| Flow direction | Bi-flow |
| Flow direction indicator | Laser engraved 1-way arrow |
| Fluid Group | II |
| Inlet connection type | SOLDER, ODF |
| Inlet size [in] | 3/8 IN |
| Max. Working Pressure [bar] | 34 bar |
| Max. Working Pressure [psig] | 500 psig |
| Orifice capacities [kW] | 8.2 kW |
| Orifice capacities [TR] | 2.3 tons |
| Orifice size | 8 |
| Outlet connection type | SOLDER, ODF |
| Outlet size [in] | 1/2 IN |
| Packing format | Multi pack |
| Parts included | Bulb strap |
| Pressure equalization | Externally equalized |
| Product accessories | TXV accessories |
| Product family name | TU/TC |
| Product Group | Expansion valves |
| Product name | Thermostatic expansion valve |
| Product type | TUBE |
| Quantity per packing format | 24 pc |
| Rated cap. cond. Range N [IMP] | OS=7.2 ºF tcond=100 ºF tevap=40 ºF tliq=98 ºF |
| Rated cap. cond. Range N [SI] | OS=4K tcond=38 ºC tevap=4.4 ºC tliq=37 ºC |
| Refrigerants | R134a/R513A |
| Serviceable | No |
| Static Superheat (SS) [°C] | 4 °C |
| Static Superheat (SS) [°F] | 7.2 °F |
| Superheat setting | Adjustable |
| System line application | Liquid line |
| Temperature range [°C] [Max] | 10 °C |
| Temperature range [°C] [Min] | -40 °C |
| Temperature range [°F] [Max] | 50 °F |
| Temperature range [°F] [Min] | -40 °F |
