068U1938
DANFOSS REFRIGERATION
1
Home > DANFOSS REFRIGERATION
* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Gross weight | 0.17 Kg |
Net weight | 0.15 Kg |
EAN | 5702422167310 |
Approval | EAC LLC CDC TYSK |
Body material | Stainless steel |
Capillary tube length [in] | 31 in |
Capillary tube length [mm] | 800 mm |
Category | Art. 4, par. 3 |
Connection material | Bi-metal: Steel/copper |
Direction | Angleway |
Equalization connection type | SOLDER, ODF |
Equalization size [in] | 1/4 IN |
Factory setting (FS) [°C] | 6 °C |
Flow direction | Bi-flow |
Flow direction indicator | Laser engraved 1-way arrow |
Fluid Group | II |
Identical product | 068U1753 |
Inlet connection type | SOLDER, ODF |
Inlet size [in] | 3/8 IN |
Max. Working Pressure [bar] | 34 bar |
Max. Working Pressure [psig] | 500 psig |
Orifice capacities [kW] | 11 kW |
Orifice capacities [TR] | 3.2 tons |
Orifice size | 8 |
Outlet connection type | SOLDER, ODF |
Outlet size [in] | 1/2 IN |
Packing format | Multi pack |
Parts included | Bulb strap |
Pressure equalization | Externally equalized |
Product accessories | TXV accessories |
Product family name | TU/TC |
Product Group | Expansion valves |

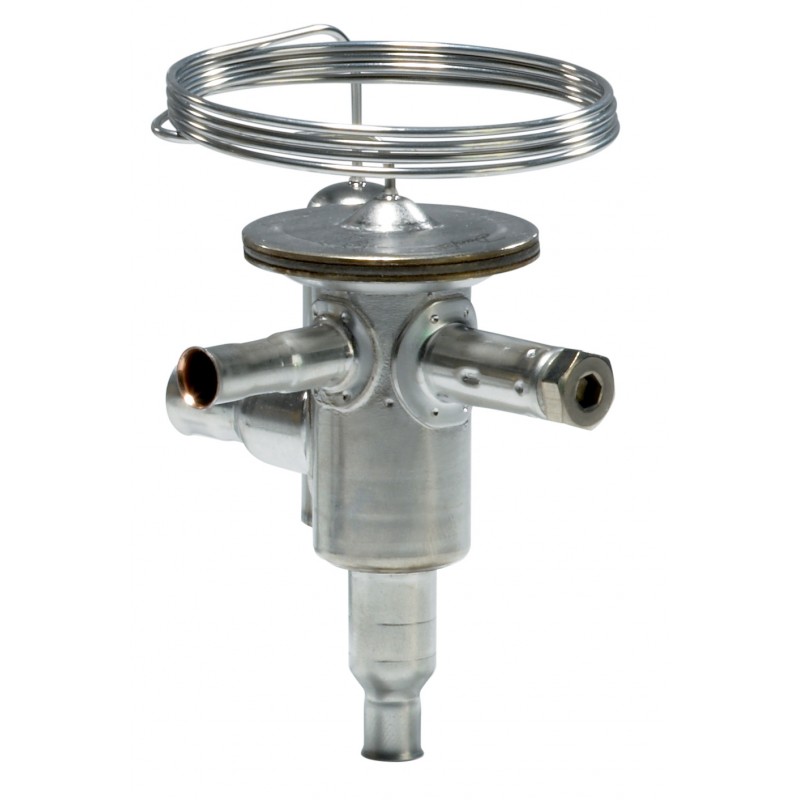

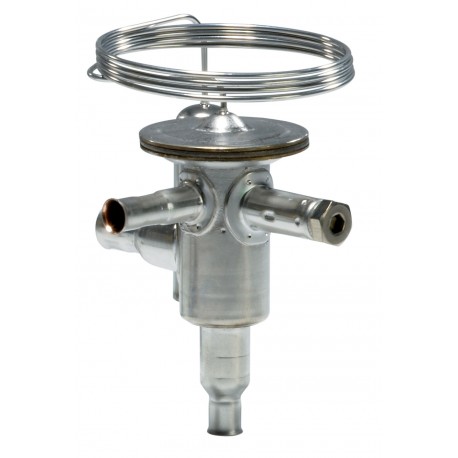

Product name | Thermostatic expansion valve |
Product type | TUBE |
Quantity per packing format | 24 pc |
Rated cap. cond. Range N [IMP] | OS=7.2 ºF tcond=100 ºF tevap=40 ºF tliq=98 ºF |
Rated cap. cond. Range N [SI] | OS=4K tcond=38 ºC tevap=4.4 ºC tliq=37 ºC |
Refrigerants | R407C |
Serviceable | No |
Static Superheat (SS) [°C] | 4 °C |
Static Superheat (SS) [°F] | 7.2 °F |
Superheat setting | Adjustable |
System line application | Liquid line |
Temperature range [°C] [Max] | 10 °C |
Temperature range [°C] [Min] | -40 °C |
Temperature range [°F] [Max] | 50 °F |
Temperature range [°F] [Min] | -40 °F |
