DANFOSS REFRIGERATION068U1137 DANFOSS REFRIGERATION Orifice for expansion valve

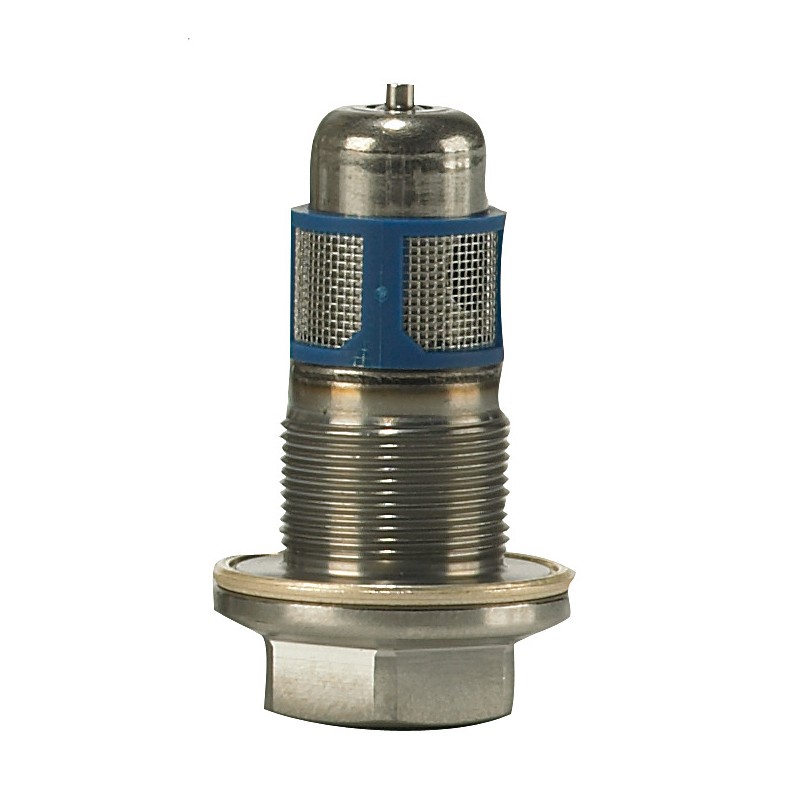

DANFOSS REFRIGERATION 068U1137 068U1137 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

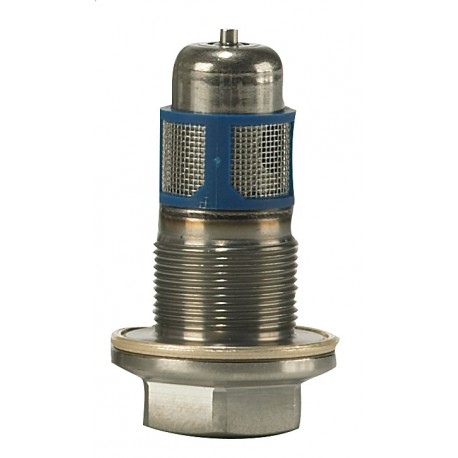

068U1137 DANFOSS REFRIGERATION Orifice for expansion valve

Reference: 068U1137

Manufacturer: DANFOSS REFRIGERATION

Description:

Orifice for expansion valve
TUA hole 7 15% Bleed
Orifice for expansion valve, ORF, R404A; R404A/R452A; R407A; R410A; R32; R134a/R513A; R407F; R455A; R407C; R452A; R454C; R404A/R507A; R513A; R1234yf; R448A; R450A; R1234ze(E); R22/R407C; R454A; R449A

Categories:

  • DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 45,19 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 4-5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Used for product: TUA; TUAE, Parts Program name: TUA, Packing format: Multi pack, Quantity per packing format: 9

Product details

Gross weight0.048 Kilogram
Net weight0.042 Kilogram
Volume0.043 Liter
EAN5702428050500
TypeORF
Product groupExpansion valves
Product Name DescriptionOrifice for expansion valve
Gross weight0.048 Kilogram
Net weight0.042 Kilogram
Volume0.043 Liter
EAN5702428050500
TypeORF
Product groupExpansion valves
Product Name DescriptionOrifice for expansion valve

ApprovalEAC
LLC CDC TYSK
Bleed [%]15 %
BleedFlow [Nccm/min]3100±1240
China RoHS complianceYes with exemptions
Contains batteriesNo
DirectionStraightway
EU RoHS complianceYes with exemptions
EU RoHS exemption clause6(a)
6(c)
Fluid Group1
Orifice size7
Packing formatMulti pack
Parts Program nameTUA
PED categoryArt. 4, par. 3
Product accessoriesTXV accessories
Quantity per packing format9 pc
Rated cap. cond. Range N [IMP]OS=7.2 ºF
tcond=100 ºF
tevap=40 ºF
tliq=98 ºF
Rated cap. cond. Range N [SI]OS=4K
tcond=38 ºC
tevap=4.4 ºC
tliq=37 ºC
Rated cap. R134a, Range N [kW]5.5 kW
Rated cap. R134a, Range N [TR]1.6 TR
Rated cap. R22, Range B [kW]4.7 kW
Rated cap. R22, Range B [TR]1.3 TR
Rated cap. R22, Range N [kW]7 kW
Rated cap. R22, Range N [TR]2 TR
Rated cap. R404A, Range B [kW]3.5 kW
Rated cap. R404A, Range B [TR]1 TR
Rated cap. R404A, Range N [kW]5.6 kW
Rated cap. R404A, Range N [TR]1.6 TR
Rated cap. R407C, Range B [kW]3.9 kW
Rated cap. R407C, Range B [TR]1.1 TR
Rated cap. R407C, Range N [kW]7.5 kW
Rated cap. R407C, Range N [TR]2.1 TR
Rated cap. R410A, Range N [kW]12 kW
Rated cap. R410A, Range N [TR]3.4 TR
Rated cap. R507, Range B [kW]3.9 kW
Rated cap. R507, Range B [TR]1.1 TR
Rated cap. R507, Range N [kW]5.3 kW
Rated cap. R507, Range N [TR]1.5 TR
Rated cap. R513A, Range N [kW]3.8 kW
Rated cap. R513A, Range N [TR]1.1 TR
REACH Candidate List substancesLead (CAS no. 7439-92-1)
RefrigerantsR1234yf
R1234ze(E)
R134a/R513A
R22/R407C
R32
R404A
R404A/R452A
R404A/R507A
R407A
R407C
R407F
R410A
R448A
R449A
R450A
R452A
R454A
R454C
R455A
R513A
SCIP dossier no.07795324-de66-41b2-9761-afe6640e393c
SCIP dossier product nameTU/TC - Thermostatic expansion valve
ServiceableNo
Temperature range [°C] [max]10 °C
Temperature range [°C] [min]-40 °C
Temperature range [°F] [max]50 °F
Temperature range [°F] [min]-40 °F
Used for productTUA
TUAE
ApprovalEAC
LLC CDC TYSK
Bleed [%]15 %
BleedFlow [Nccm/min]3100±1240
China RoHS complianceYes with exemptions
Contains batteriesNo
DirectionStraightway
EU RoHS complianceYes with exemptions
EU RoHS exemption clause6(a)
6(c)
Fluid Group1
Orifice size7
Packing formatMulti pack
Parts Program nameTUA
PED categoryArt. 4, par. 3
Product accessoriesTXV accessories
Quantity per packing format9 pc
Rated cap. cond. Range N [IMP]OS=7.2 ºF
tcond=100 ºF
tevap=40 ºF
tliq=98 ºF
Rated cap. cond. Range N [SI]OS=4K
tcond=38 ºC
tevap=4.4 ºC
tliq=37 ºC
Rated cap. R134a, Range N [kW]5.5 kW
Rated cap. R134a, Range N [TR]1.6 TR
Rated cap. R22, Range B [kW]4.7 kW
Rated cap. R22, Range B [TR]1.3 TR
Rated cap. R22, Range N [kW]7 kW
Rated cap. R22, Range N [TR]2 TR
Rated cap. R404A, Range B [kW]3.5 kW
Rated cap. R404A, Range B [TR]1 TR
Rated cap. R404A, Range N [kW]5.6 kW
Rated cap. R404A, Range N [TR]1.6 TR
Rated cap. R407C, Range B [kW]3.9 kW
Rated cap. R407C, Range B [TR]1.1 TR
Rated cap. R407C, Range N [kW]7.5 kW
Rated cap. R407C, Range N [TR]2.1 TR
Rated cap. R410A, Range N [kW]12 kW
Rated cap. R410A, Range N [TR]3.4 TR
Rated cap. R507, Range B [kW]3.9 kW
Rated cap. R507, Range B [TR]1.1 TR
Rated cap. R507, Range N [kW]5.3 kW
Rated cap. R507, Range N [TR]1.5 TR
Rated cap. R513A, Range N [kW]3.8 kW
Rated cap. R513A, Range N [TR]1.1 TR
REACH Candidate List substancesLead (CAS no. 7439-92-1)
RefrigerantsR1234yf
R1234ze(E)
R134a/R513A
R22/R407C
R32
R404A
R404A/R452A
R404A/R507A
R407A
R407C
R407F
R410A
R448A
R449A
R450A
R452A
R454A
R454C
R455A
R513A
SCIP dossier no.07795324-de66-41b2-9761-afe6640e393c
SCIP dossier product nameTU/TC - Thermostatic expansion valve
ServiceableNo
Temperature range [°C] [max]10 °C
Temperature range [°C] [min]-40 °C
Temperature range [°F] [max]50 °F
Temperature range [°F] [min]-40 °F
Used for productTUA
TUAE
