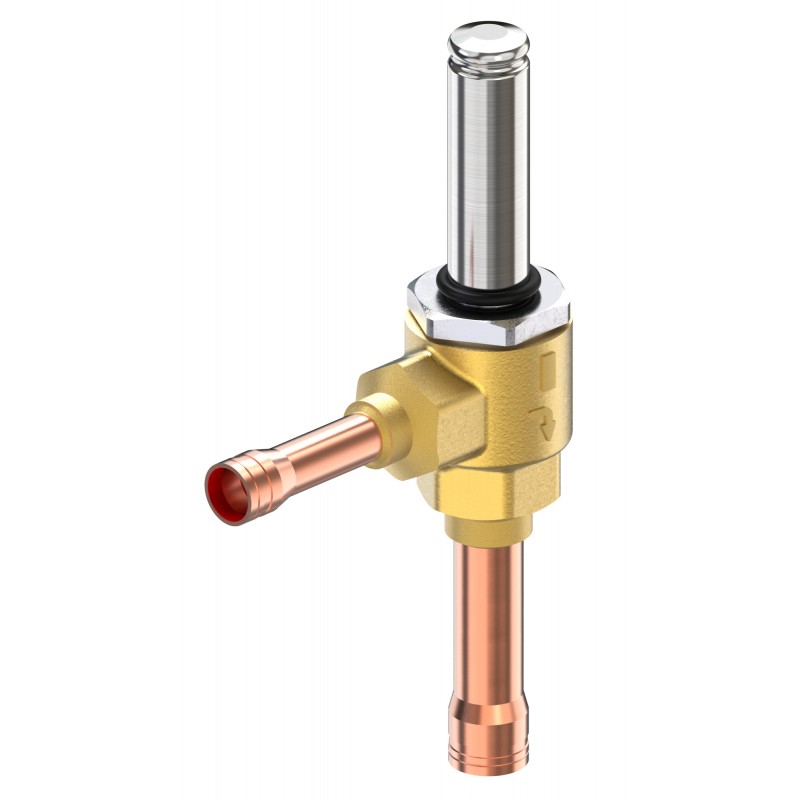

068F5230 DANFOSS REFRIGERATION Electric expansion valve, AKV 10P0
068F5230
DANFOSS REFRIGERATION
Electric expansion valve, AKV 10P0
Home > DANFOSS REFRIGERATION
* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
More info
▲Inlet connection type: Solder, ODF, Outlet connection type: Solder, ODF
Product details
| Gross weight | 0.339 Kg |
| Net weight | 0.301 Kg |
| Volume | 0.949 Liter |
| EAN | 5702428674041 |
| Gross weight | 0.339 Kg |
| Net weight | 0.301 Kg |
| Volume | 0.949 Liter |
| EAN | 5702428674041 |
| Actuator system [mm] | 13.5 mm |
| Ambient temperature | -50 - 50 °C |
| Ambient temperature range [°F] [max] | 120 °F |
| Ambient temperature range [°F] [min] | -58 °F |
| Approval | C UL US LISTED EAC LLC CDC EURO-TYSK |
| Coil | No |
| Cv value [gal/min] | 0.004 gal/min |
| Direction | Angleway |
| EU RoHS compliance | Yes with exemptions |
| Function | NC |
| In scope of WEEE and contain batteries | No |
| Inlet connection type | Solder, ODF |
| Inlet size [in] | 3/8 in |
| Kv value [m³/h] | 0.003 m³/h |
| Manual operation option | No |
| Max. Working Pressure [bar] | 90 bar |
| Max. Working Pressure [psig] | 1305 psig |
| Medium temperature range [°C] [max] | 60 °C |
| Medium temperature range [°C] [min] | -50 °C |
| Medium temperature range [°F] [max] | 140 °F |
| Medium temperature range [°F] [min] | -58 °F |
| MinODP [bar] | 0 bar |
| MinODP [psi] | 0 psi |
| MOPD[bar/psi] | 35 bar/505 psi Coil Dependend |
| Orifice size [mm] | 0.3 mm |
| Outlet connection type | Solder, ODF |
| Outlet size [in] | 1/2 in |
| Packing format | Industrial pack |
| Product accessories | Electric valve accessories |
| Product group | Expansion valves |
| Product Name Description | Electric expansion valve |
| Quantity per packing format | 16 pc |
| Rated capacity R744 [kW] | 0.48 kW |
| Refrigerants | R407A R407F R422B R422D R448A R449A R449B R450A R452A R513A R1234yf R1270 R290 R32 R407H R438A R444B R452B R454B R454C R455A R463A R513B R515A R515B R516A R600 R600a R134a R22 R23 R404A R407C R410A R744 R1233zd(E) R1234ze(E) R507A R454A R469A R170 |
| Serviceable | Electric valve spare parts |
| Type | AKV 10P0 |
| Type designation | Electric expansion valve |
| UL approved refrigerants | R1233zd(E) R134a R22 R23 R404A R407A R407C R407F R407H R410A R422B R422D R438A R448A R449A R449B R450A R452A R463A R507A R513A R513B R515A R515B R516A R744 R454A |
| Actuator system [mm] | 13.5 mm |
| Ambient temperature | -50 - 50 °C |
| Ambient temperature range [°F] [max] | 120 °F |
| Ambient temperature range [°F] [min] | -58 °F |
| Approval | C UL US LISTED EAC LLC CDC EURO-TYSK |
| Coil | No |
| Cv value [gal/min] | 0.004 gal/min |
| Direction | Angleway |
| EU RoHS compliance | Yes with exemptions |
| Function | NC |
| In scope of WEEE and contain batteries | No |
| Inlet connection type | Solder, ODF |
| Inlet size [in] | 3/8 in |
| Kv value [m³/h] | 0.003 m³/h |
| Manual operation option | No |
| Max. Working Pressure [bar] | 90 bar |
| Max. Working Pressure [psig] | 1305 psig |
| Medium temperature range [°C] [max] | 60 °C |
| Medium temperature range [°C] [min] | -50 °C |
| Medium temperature range [°F] [max] | 140 °F |
| Medium temperature range [°F] [min] | -58 °F |
| MinODP [bar] | 0 bar |
| MinODP [psi] | 0 psi |
| MOPD[bar/psi] | 35 bar/505 psi Coil Dependend |
| Orifice size [mm] | 0.3 mm |
| Outlet connection type | Solder, ODF |
| Outlet size [in] | 1/2 in |
| Packing format | Industrial pack |
| Product accessories | Electric valve accessories |
| Product group | Expansion valves |
| Product Name Description | Electric expansion valve |
| Quantity per packing format | 16 pc |
| Rated capacity R744 [kW] | 0.48 kW |
| Refrigerants | R407A R407F R422B R422D R448A R449A R449B R450A R452A R513A R1234yf R1270 R290 R32 R407H R438A R444B R452B R454B R454C R455A R463A R513B R515A R515B R516A R600 R600a R134a R22 R23 R404A R407C R410A R744 R1233zd(E) R1234ze(E) R507A R454A R469A R170 |
| Serviceable | Electric valve spare parts |
| Type | AKV 10P0 |
| Type designation | Electric expansion valve |
| UL approved refrigerants | R1233zd(E) R134a R22 R23 R404A R407A R407C R407F R407H R410A R422B R422D R438A R448A R449A R449B R450A R452A R463A R507A R513A R513B R515A R515B R516A R744 R454A |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 068F5230 068F5230 | 572 Kbytes |
 |
