Images are for illustrative purposes only. Please refer to data sheet for details.

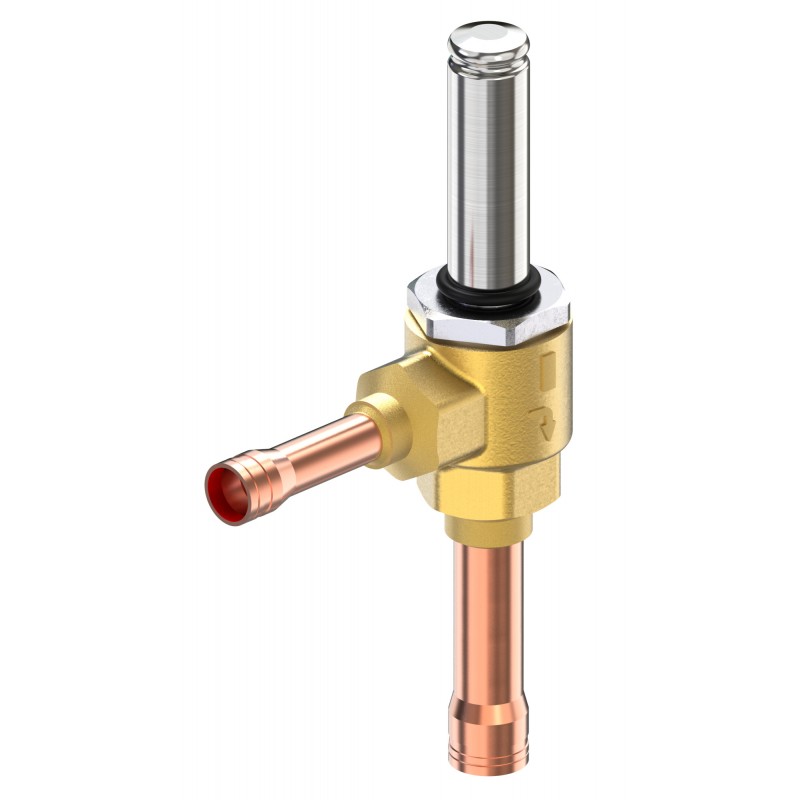

068F5206 DANFOSS REFRIGERATION Electric expansion valve
Reference: 068F5206
Manufacturer: DANFOSS REFRIGERATION
Description:
Electric expansion valve
AKV 10P6 Valve ODF-ODF 10-12mm MU.18
Electric expansion valve, AKV 10P6
Categories:
- DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
- More Info
- Reviews
LAST VIEWED
MORE INFO
Inlet connection type: Solder, ODF, Inlet size [mm]: 10, Outlet connection type: Solder, ODF, Outlet size [mm]: 12
Product details
| Gross weight | 0.347 Kilogram |
| Net weight | 0.301 Kilogram |
| Volume | 1.166 Liter |
| EAN | 5702428674027 |
| Type | AKV 10P6 |
| Product group | Expansion valves |
| Product Name Description | Electric expansion valve |
| Gross weight | 0.347 Kilogram |
| Net weight | 0.301 Kilogram |
| Volume | 1.166 Liter |
| EAN | 5702428674027 |
| Type | AKV 10P6 |
| Product group | Expansion valves |
| Product Name Description | Electric expansion valve |
| Actuator system [mm] | 13.5 mm |
| Ambient temperature | -50 - 50 °C |
| Ambient temperature range [°F] [max] | 120 °F |
| Ambient temperature range [°F] [min] | -58 °F |
| Approval | C UL US LISTED EAC LLC CDC EURO-TYSK |
| China RoHS compliance | Yes with exemptions |
| China RoHS exemption clause | 7.1 7.3 |
| Coil | No |
| Contains batteries | No |
| Cv value [gal/min] | 0.13 gal/min |
| Direction | Angleway |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(a) 6(c) |
| Function | NC |
| Inlet connection type | Solder, ODF |
| Inlet size [mm] | 10 mm |
| Kv value [m³/h] | 0.11 m³/h |
| Manual operation option | No |
| Max. Working Pressure [bar] | 90 bar |
| Max. Working Pressure [psig] | 1305 psig |
| Medium temperature range [°C] [max] | 60 °C |
| Medium temperature range [°C] [min] | -50 °C |
| Medium temperature range [°F] [max] | 140 °F |
| Medium temperature range [°F] [min] | -58 °F |
| MinODP [bar] | 0 bar |
| MinODP [psi] | 0 psi |
| MOPD[bar/psi] | 42 bar/609 psi Coil Dependent |
| Orifice size [mm] | 1.7 mm |
| Outlet connection type | Solder, ODF |
| Outlet size [mm] | 12 mm |
| Packing format | Multi pack |
| Product accessories | Electric valve accessories |
| Quantity per packing format | 18 pc |
| Rated capacity R744 [kW] | 13.2 kW |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R1233zd(E) R1234yf R1234ze(E) R1270 R134a R170 R22 R23 R290 R32 R404A R407A R407C R407F R407H R410A R422B R422D R438A R444B R448A R449A R449B R450A R452A R452B R454A R454B R454C R455A R463A R469A R507A R513A R513B R515A R515B R516A R600 R600a R744 |
| SCIP dossier no. | 9fb99f86-3739-48e6-acb0-a7863b960055 |
| SCIP dossier product name | AKVP 10 |
| Serviceable | Electric valve spare parts |
| Type designation | Electric expansion valve |
| UL approved refrigerants | R1233zd(E) R134a R22 R23 R404A R407A R407C R407F R407H R410A R422B R422D R438A R448A R449A R449B R450A R452A R454A R463A R507A R513A R513B R515A R515B R516A R744 |
| UL mark | Yes |
| Actuator system [mm] | 13.5 mm |
| Ambient temperature | -50 - 50 °C |
| Ambient temperature range [°F] [max] | 120 °F |
| Ambient temperature range [°F] [min] | -58 °F |
| Approval | C UL US LISTED EAC LLC CDC EURO-TYSK |
| China RoHS compliance | Yes with exemptions |
| China RoHS exemption clause | 7.1 7.3 |
| Coil | No |
| Contains batteries | No |
| Cv value [gal/min] | 0.13 gal/min |
| Direction | Angleway |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(a) 6(c) |
| Function | NC |
| Inlet connection type | Solder, ODF |
| Inlet size [mm] | 10 mm |
| Kv value [m³/h] | 0.11 m³/h |
| Manual operation option | No |
| Max. Working Pressure [bar] | 90 bar |
| Max. Working Pressure [psig] | 1305 psig |
| Medium temperature range [°C] [max] | 60 °C |
| Medium temperature range [°C] [min] | -50 °C |
| Medium temperature range [°F] [max] | 140 °F |
| Medium temperature range [°F] [min] | -58 °F |
| MinODP [bar] | 0 bar |
| MinODP [psi] | 0 psi |
| MOPD[bar/psi] | 42 bar/609 psi Coil Dependent |
| Orifice size [mm] | 1.7 mm |
| Outlet connection type | Solder, ODF |
| Outlet size [mm] | 12 mm |
| Packing format | Multi pack |
| Product accessories | Electric valve accessories |
| Quantity per packing format | 18 pc |
| Rated capacity R744 [kW] | 13.2 kW |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R1233zd(E) R1234yf R1234ze(E) R1270 R134a R170 R22 R23 R290 R32 R404A R407A R407C R407F R407H R410A R422B R422D R438A R444B R448A R449A R449B R450A R452A R452B R454A R454B R454C R455A R463A R469A R507A R513A R513B R515A R515B R516A R600 R600a R744 |
| SCIP dossier no. | 9fb99f86-3739-48e6-acb0-a7863b960055 |
| SCIP dossier product name | AKVP 10 |
| Serviceable | Electric valve spare parts |
| Type designation | Electric expansion valve |
| UL approved refrigerants | R1233zd(E) R134a R22 R23 R404A R407A R407C R407F R407H R410A R422B R422D R438A R448A R449A R449B R450A R452A R454A R463A R507A R513A R513B R515A R515B R516A R744 |
| UL mark | Yes |
