DANFOSS REFRIGERATION068-3249 DANFOSS REFRIGERATION Desuperheating valve

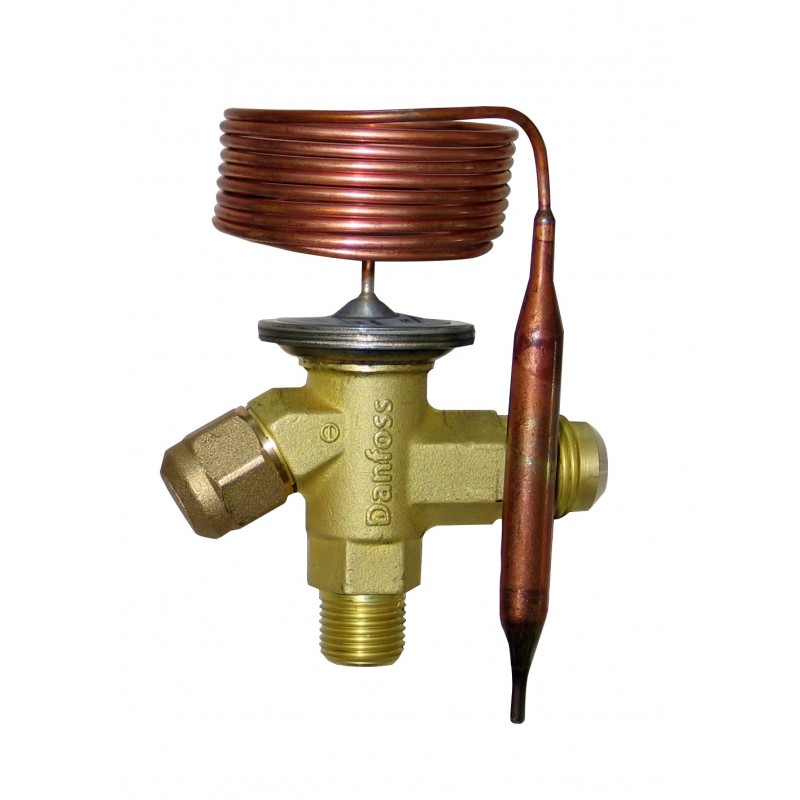

DANFOSS REFRIGERATION 068-3249 068-3249 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

068-3249 DANFOSS REFRIGERATION Desuperheating valve

Reference: 068-3249

Manufacturer: DANFOSS REFRIGERATION

Description:

Desuperheating valve
Desuperheating valve, TXI 2, Flare

Categories:

  • DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

MORE INFO

Inlet size [in]: 3/8 in, Inlet connection type: Flare, Outlet size [in]: 1/2 in, Outlet connection type: Flare, Pressure range (Pi) [bar]: 0 - 2, Temperature range [°C]: 100 - 130

Product details

Gross weight0.336 Kilogram
Net weight0.313 Kilogram
Volume0.619 Liter
EAN5702422071969
TypeTXI 2
Product groupExpansion valves
Product Name DescriptionDesuperheating valve
Gross weight0.336 Kilogram
Net weight0.313 Kilogram
Volume0.619 Liter
EAN5702422071969
TypeTXI 2
Product groupExpansion valves
Product Name DescriptionDesuperheating valve

ApprovalEAC
LLC CDC TYSK
Body materialBrass
Capillary tube length [in]59 in
Capillary tube length [mm]1500 mm
China RoHS complianceYes with exemptions
Contains batteriesNo
DirectionAngleway
EU RoHS complianceYes with exemptions
EU RoHS exemption clause6(a)
6(c)
Fluid Group2
Inlet connection typeFlare
Inlet size [in]3/8 in
Max. Working Pressure [bar]34 bar
Max. Working Pressure [psig]500 psig
Outlet connection typeFlare
Outlet size [in]1/2 in
Packing formatMulti pack
PED categoryArt. 4, par. 3
Pressure range (Pi) [bar] [max]2 bar
Pressure range (Pi) [bar] [min]0 bar
Quantity per packing format20 pc
REACH Candidate List substancesLead (CAS no. 7439-92-1)
SCIP dossier no.07795324-de66-41b2-9761-afe6640e393c
SCIP dossier product nameTU/TC
Static Superheat (SS) [°C]-25 °C
Static Superheat (SS) [°F]-45 °F
Temperature range [°C] [max]130 °C
Temperature range [°C] [min]100 °C
Temperature range [°F] [max]265 °F
Temperature range [°F] [min]212 °F
ApprovalEAC
LLC CDC TYSK
Body materialBrass
Capillary tube length [in]59 in
Capillary tube length [mm]1500 mm
China RoHS complianceYes with exemptions
Contains batteriesNo
DirectionAngleway
EU RoHS complianceYes with exemptions
EU RoHS exemption clause6(a)
6(c)
Fluid Group2
Inlet connection typeFlare
Inlet size [in]3/8 in
Max. Working Pressure [bar]34 bar
Max. Working Pressure [psig]500 psig
Outlet connection typeFlare
Outlet size [in]1/2 in
Packing formatMulti pack
PED categoryArt. 4, par. 3
Pressure range (Pi) [bar] [max]2 bar
Pressure range (Pi) [bar] [min]0 bar
Quantity per packing format20 pc
REACH Candidate List substancesLead (CAS no. 7439-92-1)
SCIP dossier no.07795324-de66-41b2-9761-afe6640e393c
SCIP dossier product nameTU/TC
Static Superheat (SS) [°C]-25 °C
Static Superheat (SS) [°F]-45 °F
Temperature range [°C] [max]130 °C
Temperature range [°C] [min]100 °C
Temperature range [°F] [max]265 °F
Temperature range [°F] [min]212 °F

DATASHEET - PDF

Title
Size
Type
068-3249 068-3249 ES_068-2003.pdf
597 Kbytes
PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN
11 Mbytes
