DANFOSS REFRIGERATION067N8321 DANFOSS REFRIGERATION Connected type. Input: Weld, ODF, Conex Type. Output: Welding, ODF, Temperatu..

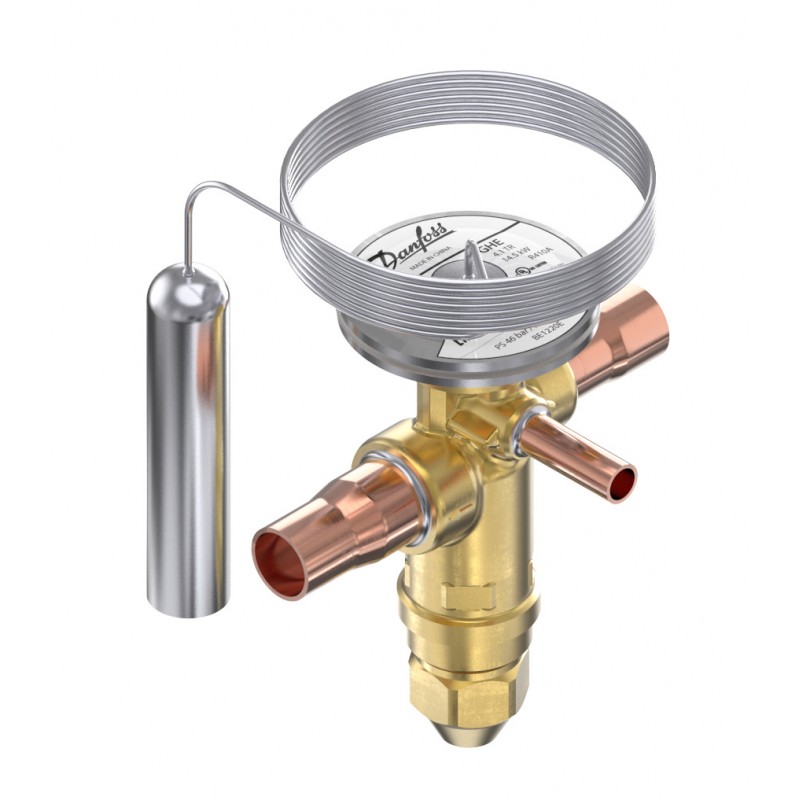

DANFOSS REFRIGERATION 067N8321 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

067N8321 DANFOSS REFRIGERATION Connected type. Input: Weld, ODF, Conex Type. Output: Welding, ODF, Temperatu..

Code: 067N8321

Manufacturer: DANFOSS REFRIGERATION

Description:

Connected type. Input: Weld, ODF, Conex Type. Output: Welding, ODF, Temperature range [°C]: -1 - 8, Orifice capacities [kW]: 28.90, Pressure balancing: External compensation/equalization
TGHE 40 Capacity Regulator I/8
Hot gas bypass regulator, TGHE

Categories:

  • DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 3.832,18 €

Unit Price: 479,022 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 4-5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Inlet size [in]: 7/8 in, Inlet connection type: Solder, ODF, Outlet size [in]: 7/8 in, Outlet connection type: Solder, ODF, Temperature range [°C]: -1 - 8, Orifice capacities [kW]: 28.9, Pressure equalization: Externally equalized

Product details

Gross weight1.054 Kilogram
Net weight0.97 Kilogram
Volume2.812 Liter
EAN5702428324816
TypeTGHE
Product groupPress. and temp. regul. valves
Product Name DescriptionHot gas bypass regulator
Gross weight1.054 Kilogram
Net weight0.97 Kilogram
Volume2.812 Liter
EAN5702428324816
TypeTGHE
Product groupPress. and temp. regul. valves
Product Name DescriptionHot gas bypass regulator

ApprovalC UL US LISTED
EAC
LLC CDC TYSK
Balanced port [Yes/No]Yes
Body materialBrass
Capillary tube length [in]118 in
Capillary tube length [mm]3000 mm
China RoHS complianceOut of scope
Connection materialCopper
Contains batteriesNo
DirectionStraightway
Element temperature max. [°C]110 °C
Element temperature max. [°F]230 °F
Equalization connection typeSolder, ODF
Equalization size [in]1/4 in
EU RoHS complianceYes with exemptions
EU RoHS exemption clause6(c)
Flow directionBi-flow
Flow direction indicatorEmbossed 1-way arrow
Fluid Group2
Identical product067N8311
Inlet connection typeSolder, ODF
Inlet size [in]7/8 in
Max. Working Pressure [bar]49 bar
Max. Working Pressure [psig]711 psig
Orifice capacities [kW]28.9 kW
Orifice capacities [TR]8.3 TR
Orifice size40
Outlet connection typeSolder, ODF
Outlet size [in]7/8 in
Packing formatIndustrial pack
Parts includedBulb strap
PED categoryArt. 4, par. 3
Pressure equalizationExternally equalized
Product accessoriesTXV accessories
Quantity per packing format8 pc
Rated cap. cond. Range N [IMP]Delta tsuct=7 °F
tcond=104 °F
tevap=28 °F
Rated cap. cond. Range N [SI]Delta tsuct=4K
tcond=40 °C
tevap=-2.0 °C
REACH Candidate List substancesLead (CAS no. 7439-92-1)
RefrigerantsR410A
SCIP dossier no.3c484d77-61a0-4822-8540-e10a4d795088
SCIP dossier product nameTGE -Thermostatic expansion valve
ServiceableNo
Static Superheat (SS) [°C]2 °C
Static Superheat (SS) [°F]3.6 °F
Superheat settingAdjustable
Temperature range [°C] [max]8 °C
Temperature range [°C] [min]-1 °C
Temperature range [°F] [max]46 °F
Temperature range [°F] [min]30 °F
UL approved refrigerantsR410A
UL markYes
ApprovalC UL US LISTED
EAC
LLC CDC TYSK
Balanced port [Yes/No]Yes
Body materialBrass
Capillary tube length [in]118 in
Capillary tube length [mm]3000 mm
China RoHS complianceOut of scope
Connection materialCopper
Contains batteriesNo
DirectionStraightway
Element temperature max. [°C]110 °C
Element temperature max. [°F]230 °F
Equalization connection typeSolder, ODF
Equalization size [in]1/4 in
EU RoHS complianceYes with exemptions
EU RoHS exemption clause6(c)
Flow directionBi-flow
Flow direction indicatorEmbossed 1-way arrow
Fluid Group2
Identical product067N8311
Inlet connection typeSolder, ODF
Inlet size [in]7/8 in
Max. Working Pressure [bar]49 bar
Max. Working Pressure [psig]711 psig
Orifice capacities [kW]28.9 kW
Orifice capacities [TR]8.3 TR
Orifice size40
Outlet connection typeSolder, ODF
Outlet size [in]7/8 in
Packing formatIndustrial pack
Parts includedBulb strap
PED categoryArt. 4, par. 3
Pressure equalizationExternally equalized
Product accessoriesTXV accessories
Quantity per packing format8 pc
Rated cap. cond. Range N [IMP]Delta tsuct=7 °F
tcond=104 °F
tevap=28 °F
Rated cap. cond. Range N [SI]Delta tsuct=4K
tcond=40 °C
tevap=-2.0 °C
REACH Candidate List substancesLead (CAS no. 7439-92-1)
RefrigerantsR410A
SCIP dossier no.3c484d77-61a0-4822-8540-e10a4d795088
SCIP dossier product nameTGE -Thermostatic expansion valve
ServiceableNo
Static Superheat (SS) [°C]2 °C
Static Superheat (SS) [°F]3.6 °F
Superheat settingAdjustable
Temperature range [°C] [max]8 °C
Temperature range [°C] [min]-1 °C
Temperature range [°F] [max]46 °F
Temperature range [°F] [min]30 °F
UL approved refrigerantsR410A
UL markYes

DATASHEET - PDF

Title
Size
Type
067N8321 EN_068U4589.pdf
2 Mbytes
PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN
11 Mbytes
