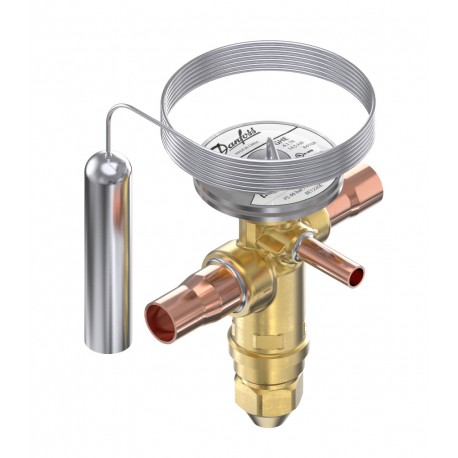

DANFOSS REFRIGERATION 067N8311 067N8311 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

067N8311 DANFOSS REFRIGERATION Hot gas bypass regulator

Name: 067N8311 DANFOSS REFRIGERATION Hot gas bypass regulator
Brand: DANFOSS REFRIGERATION
SKU: DAO067N8311
Price: 717.77 USD
Availability: OutOfStock

Reference: 067N8311

Manufacturer: DANFOSS REFRIGERATION

Description:

Hot gas bypass regulator

TGHE 40 Capacity Regulator M/6

Hot gas bypass regulator, TGHE

Categories:

DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

More Info
PDF
Reviews

Guarantee, repair and return.

Unit Price: 613,11 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 4-5 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

LAST VIEWED

MORE INFO

Inlet size [in]: 7/8 in, Inlet connection type: Solder, ODF, Outlet size [in]: 7/8 in, Outlet connection type: Solder, ODF, Temperature range [°C]: -1 - 8, Orifice capacities [kW]: 28.9, Pressure equalization: Externally equalized

Product details

Gross weight	1.102 Kilogram
Net weight	0.977 Kilogram
Volume	3.233 Liter
EAN	5702428324762

Type	TGHE
Product group	Press. and temp. regul. valves
Product Name Description	Hot gas bypass regulator

Gross weight	1.102 Kilogram
Net weight	0.977 Kilogram
Volume	3.233 Liter
EAN	5702428324762
Type	TGHE
Product group	Press. and temp. regul. valves
Product Name Description	Hot gas bypass regulator

Approval	C UL US LISTED EAC LLC CDC TYSK
Balanced port [Yes/No]	Yes
Body material	Brass
Capillary tube length [in]	118 in
Capillary tube length [mm]	3000 mm
China RoHS compliance	Out of scope
Connection material	Copper
Contains batteries	No
Direction	Straightway
Element temperature max. [°C]	110 °C
Element temperature max. [°F]	230 °F
Equalization connection type	Solder, ODF
Equalization size [in]	1/4 in
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(c)
Flow direction	Bi-flow
Flow direction indicator	Embossed 1-way arrow
Fluid Group	2
Identical product	067N8321
Inlet connection type	Solder, ODF
Inlet size [in]	7/8 in
Max. Working Pressure [bar]	49 bar
Max. Working Pressure [psig]	711 psig
Orifice capacities [kW]	28.9 kW
Orifice capacities [TR]	8.3 TR

Orifice size	40
Outlet connection type	Solder, ODF
Outlet size [in]	7/8 in
Packing format	Multi pack
Parts included	Bulb strap
PED category	Art. 4, par. 3
Pressure equalization	Externally equalized
Product accessories	TXV accessories
Quantity per packing format	6 pc
Rated cap. cond. Range N [IMP]	Delta tsuct=7 °F tcond=104 °F tevap=28 °F
Rated cap. cond. Range N [SI]	Delta tsuct=4K tcond=40 °C tevap=-2.0 °C
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Refrigerants	R410A
SCIP dossier no.	3c484d77-61a0-4822-8540-e10a4d795088
SCIP dossier product name	TGE -Thermostatic expansion valve
Serviceable	No
Static Superheat (SS) [°C]	2 °C
Static Superheat (SS) [°F]	3.6 °F
Superheat setting	Adjustable
Temperature range [°C] [max]	8 °C
Temperature range [°C] [min]	-1 °C
Temperature range [°F] [max]	46 °F
Temperature range [°F] [min]	30 °F
UL approved refrigerants	R410A
UL mark	Yes

Approval	C UL US LISTED EAC LLC CDC TYSK
Balanced port [Yes/No]	Yes
Body material	Brass
Capillary tube length [in]	118 in
Capillary tube length [mm]	3000 mm
China RoHS compliance	Out of scope
Connection material	Copper
Contains batteries	No
Direction	Straightway
Element temperature max. [°C]	110 °C
Element temperature max. [°F]	230 °F
Equalization connection type	Solder, ODF
Equalization size [in]	1/4 in
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(c)
Flow direction	Bi-flow
Flow direction indicator	Embossed 1-way arrow
Fluid Group	2
Identical product	067N8321
Inlet connection type	Solder, ODF
Inlet size [in]	7/8 in
Max. Working Pressure [bar]	49 bar
Max. Working Pressure [psig]	711 psig
Orifice capacities [kW]	28.9 kW
Orifice capacities [TR]	8.3 TR
Orifice size	40
Outlet connection type	Solder, ODF
Outlet size [in]	7/8 in
Packing format	Multi pack
Parts included	Bulb strap
PED category	Art. 4, par. 3
Pressure equalization	Externally equalized
Product accessories	TXV accessories
Quantity per packing format	6 pc
Rated cap. cond. Range N [IMP]	Delta tsuct=7 °F tcond=104 °F tevap=28 °F
Rated cap. cond. Range N [SI]	Delta tsuct=4K tcond=40 °C tevap=-2.0 °C
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Refrigerants	R410A
SCIP dossier no.	3c484d77-61a0-4822-8540-e10a4d795088
SCIP dossier product name	TGE -Thermostatic expansion valve
Serviceable	No
Static Superheat (SS) [°C]	2 °C
Static Superheat (SS) [°F]	3.6 °F
Superheat setting	Adjustable
Temperature range [°C] [max]	8 °C
Temperature range [°C] [min]	-1 °C
Temperature range [°F] [max]	46 °F
Temperature range [°F] [min]	30 °F
UL approved refrigerants	R410A
UL mark	Yes

DATASHEET - PDF

Title

Size

Type

067N8311 067N8311 EN_068U4589.pdf

2 Mbytes

PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN

11 Mbytes
