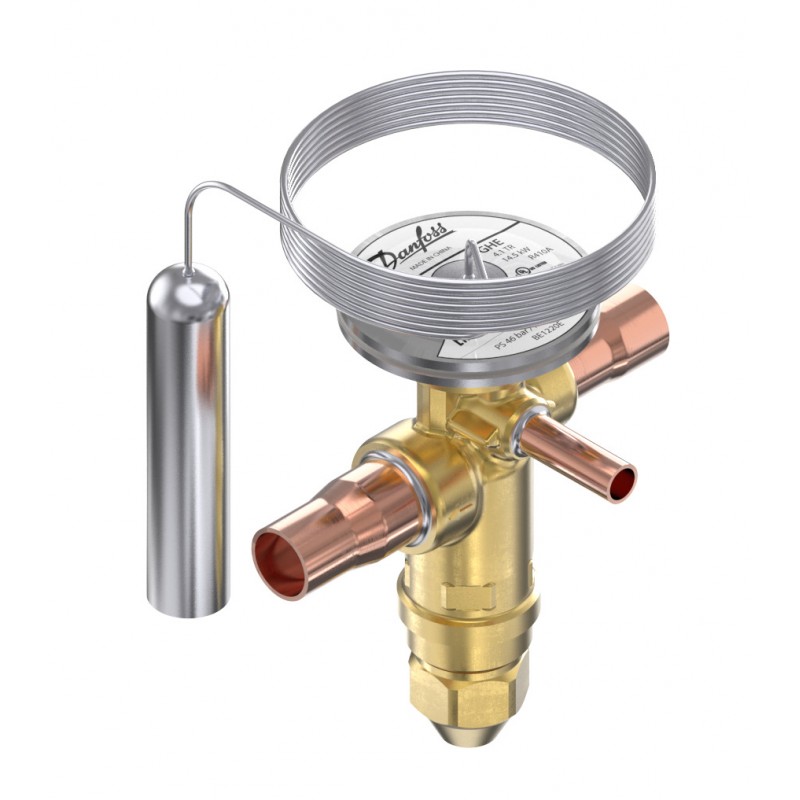

067N8306 DANFOSS REFRIGERATION Hot gas bypass regulator, TGHE Type conex. input: Weld, ODF, Conex type. Outp..
067N8306
DANFOSS REFRIGERATION
Hot gas bypass regulator, TGHE - Type conex. input: Weld, ODF, Conex type. Output: Welding, ODF, Temperature range [°C]: -1 - 16, Orifice capacities [kW]: 10.70, Pressure balancing: External compensation/equalization
TGHE 40 Capacity Regulator M/6
Hot gas bypass regulator, TGHE
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Inlet size [in]: 7/8 in, Inlet connection type: Solder, ODF, Outlet size [in]: 7/8 in, Outlet connection type: Solder, ODF, Temperature range [°C]: -1 - 16, Orifice capacities [kW]: 10.7, Pressure equalization: Externally equalized
Product details
| Gross weight | 1.107 Kilogram |
| Net weight | 1.06 Kilogram |
| Volume | 3.233 Liter |
| EAN | 5702428891820 |
| Type | TGHE |
| Product group | Press. and temp. regul. valves |
| Product Name Description | Hot gas bypass regulator |
| Gross weight | 1.107 Kilogram |
| Net weight | 1.06 Kilogram |
| Volume | 3.233 Liter |
| EAN | 5702428891820 |
| Type | TGHE |
| Product group | Press. and temp. regul. valves |
| Product Name Description | Hot gas bypass regulator |
| Approval | C UL US LISTED |
| Balanced port [Yes/No] | Yes |
| Body material | Brass |
| Capillary tube length [in] | 118 in |
| Capillary tube length [mm] | 3000 mm |
| China RoHS compliance | Out of scope |
| Connection material | Copper |
| Contains batteries | No |
| Direction | Straightway |
| Element temperature max. [°C] | 110 °C |
| Element temperature max. [°F] | 230 °F |
| EPD available | Yes |
| Equalization connection type | Solder, ODF |
| Equalization size [in] | 1/4 in |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flow direction | Bi-flow |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | 2 |
| Inlet connection type | Solder, ODF |
| Inlet size [in] | 7/8 in |
| Max. Working Pressure [bar] | 49 bar |
| Max. Working Pressure [psig] | 711 psig |
| Orifice capacities [kW] | 10.7 kW |
| Orifice capacities [TR] | 3.1 TR |
| Orifice size | 40 |
| Outlet connection type | Solder, ODF |
| Outlet size [in] | 7/8 in |
| Packing format | Multi pack |
| Parts included | Bulb strap |
| PED category | Art. 4, par. 3 |
| Pressure equalization | Externally equalized |
| Product accessories | TXV accessories |
| Quantity per packing format | 6 pc |
| Rated cap. cond. Range N [IMP] | Delta tsuct=7 °F tcond=104 °F tevap=28 °F |
| Rated cap. cond. Range N [SI] | Delta tsuct=4K tcond=40 °C tevap=-2.0 °C |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R134a |
| SCIP dossier no. | 3c484d77-61a0-4822-8540-e10a4d795088 |
| SCIP dossier product name | TGE -Thermostatic expansion valve |
| Serviceable | No |
| Static Superheat (SS) [°C] | 2 °C |
| Static Superheat (SS) [°F] | 3.6 °F |
| Superheat setting | Adjustable |
| Temperature range [°C] [max] | 16 °C |
| Temperature range [°C] [min] | -1 °C |
| Temperature range [°F] [max] | 61 °F |
| Temperature range [°F] [min] | 30 °F |
| UL approved refrigerants | R134a |
| UL mark | Yes |
| Approval | C UL US LISTED |
| Balanced port [Yes/No] | Yes |
| Body material | Brass |
| Capillary tube length [in] | 118 in |
| Capillary tube length [mm] | 3000 mm |
| China RoHS compliance | Out of scope |
| Connection material | Copper |
| Contains batteries | No |
| Direction | Straightway |
| Element temperature max. [°C] | 110 °C |
| Element temperature max. [°F] | 230 °F |
| EPD available | Yes |
| Equalization connection type | Solder, ODF |
| Equalization size [in] | 1/4 in |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Flow direction | Bi-flow |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | 2 |
| Inlet connection type | Solder, ODF |
| Inlet size [in] | 7/8 in |
| Max. Working Pressure [bar] | 49 bar |
| Max. Working Pressure [psig] | 711 psig |
| Orifice capacities [kW] | 10.7 kW |
| Orifice capacities [TR] | 3.1 TR |
| Orifice size | 40 |
| Outlet connection type | Solder, ODF |
| Outlet size [in] | 7/8 in |
| Packing format | Multi pack |
| Parts included | Bulb strap |
| PED category | Art. 4, par. 3 |
| Pressure equalization | Externally equalized |
| Product accessories | TXV accessories |
| Quantity per packing format | 6 pc |
| Rated cap. cond. Range N [IMP] | Delta tsuct=7 °F tcond=104 °F tevap=28 °F |
| Rated cap. cond. Range N [SI] | Delta tsuct=4K tcond=40 °C tevap=-2.0 °C |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R134a |
| SCIP dossier no. | 3c484d77-61a0-4822-8540-e10a4d795088 |
| SCIP dossier product name | TGE -Thermostatic expansion valve |
| Serviceable | No |
| Static Superheat (SS) [°C] | 2 °C |
| Static Superheat (SS) [°F] | 3.6 °F |
| Superheat setting | Adjustable |
| Temperature range [°C] [max] | 16 °C |
| Temperature range [°C] [min] | -1 °C |
| Temperature range [°F] [max] | 61 °F |
| Temperature range [°F] [min] | 30 °F |
| UL approved refrigerants | R134a |
| UL mark | Yes |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
| 067N8306 067N8306 EN_068U4589.pdf | 2 Mbytes |
|
