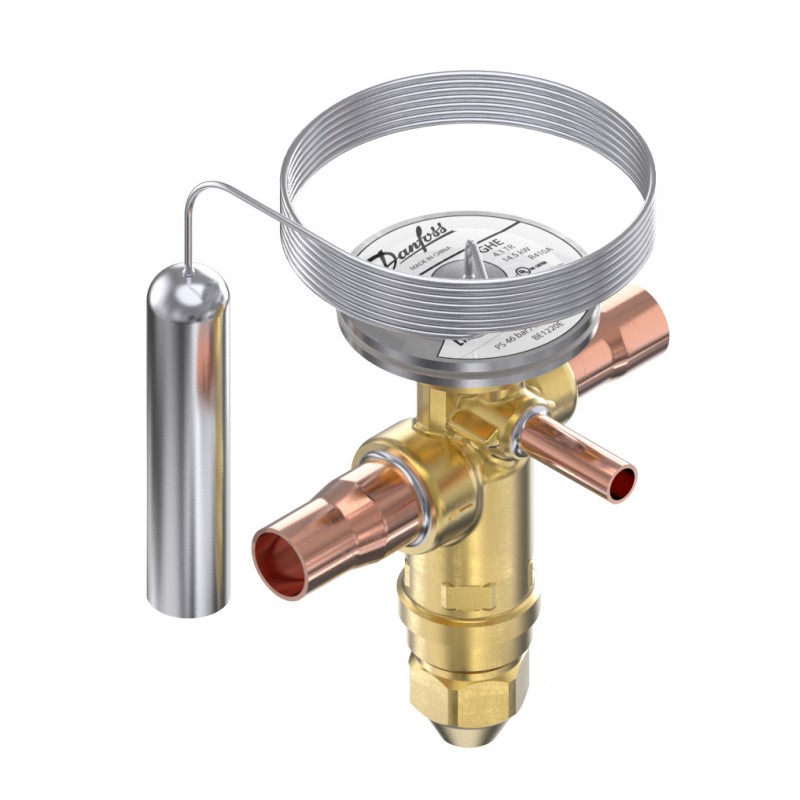

067N8301 DANFOSS REFRIGERATION Hot gas bypass regulator
067N8301
DANFOSS REFRIGERATION
Hot gas bypass regulator
Hot gas bypass regulator, TGHE
Home > DANFOSS REFRIGERATION
* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
More info
▲Inlet connection type: Solder, ODF, Outlet connection type: Solder, ODF, Temperature range [°C]: -1 - 13, Orifice capacities [kW]: 5.60, Pressure equalization: Externally equalized
Product details
| Gross weight | 0.743 Kg |
| Net weight | 0.61 Kg |
| Volume | 2.382 Liter |
| EAN | 5702428324670 |
| Gross weight | 0.743 Kg |
| Net weight | 0.61 Kg |
| Volume | 2.382 Liter |
| EAN | 5702428324670 |
| Approval | C UL US LISTED EAC LLC CDC TYSK |
| Balanced port [Yes/No] | Yes |
| Body material | Brass |
| Capillary tube length [in] | 59 in |
| Capillary tube length [mm] | 1500 mm |
| Connection material | Copper |
| Direction | Straightway |
| Element temperature max. [°C] | 110 °C |
| Element temperature max. [°F] | 230 °F |
| Equalization connection type | Solder, ODF |
| Equalization size [in] | 1/4 in |
| EU RoHS compliance | Yes with exemptions |
| Flow direction | Bi-flow |
| Flow direction indicator | Embossed 1-way arrow |
| In scope of WEEE and contain batteries | No |
| Inlet connection type | Solder, ODF |
| Inlet size [in] | 5/8 in |
| Max. Working Pressure [bar] | 49 bar |
| Max. Working Pressure [psig] | 711 psig |
| Orifice capacities [kW] | 5.6 kW |
| Orifice capacities [TR] | 1.6 TR |
| Orifice size | 20 |
| Outlet connection type | Solder, ODF |
| Outlet size [in] | 5/8 in |
| Packing format | Multi pack |
| Parts included | Bulb strap |
| Pressure equalization | Externally equalized |
| Product accessories | TXV accessories |
| Product group | Press. and temp. regul. valves |
| Product Name Description | Hot gas bypass regulator |
| Quantity per packing format | 8 pc |
| Rated cap. cond. Range N [IMP] | Delta tsuct=7 °F tcond=104 °F tevap=28 °F |
| Rated cap. cond. Range N [SI] | Delta tsuct=4K tcond=40 °C tevap=-2.0 °C |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R134a |
| SCIP dossier no. | d44ec740-dfe8-4c0a-9644-96406f010504 |
| SCIP dossier product name | TGE |
| Serviceable | No |
| Static Superheat (SS) [°C] | 2 °C |
| Static Superheat (SS) [°F] | 3.6 °F |
| Superheat setting | Adjustable |
| Temperature range [°C] [max] | 13 °C |
| Temperature range [°C] [min] | -1 °C |
| Temperature range [°F] [max] | 55 °F |
| Temperature range [°F] [min] | 30 °F |
| Type | TGHE |
| UL approved refrigerants | R134a |
| Approval | C UL US LISTED EAC LLC CDC TYSK |
| Balanced port [Yes/No] | Yes |
| Body material | Brass |
| Capillary tube length [in] | 59 in |
| Capillary tube length [mm] | 1500 mm |
| Connection material | Copper |
| Direction | Straightway |
| Element temperature max. [°C] | 110 °C |
| Element temperature max. [°F] | 230 °F |
| Equalization connection type | Solder, ODF |
| Equalization size [in] | 1/4 in |
| EU RoHS compliance | Yes with exemptions |
| Flow direction | Bi-flow |
| Flow direction indicator | Embossed 1-way arrow |
| In scope of WEEE and contain batteries | No |
| Inlet connection type | Solder, ODF |
| Inlet size [in] | 5/8 in |
| Max. Working Pressure [bar] | 49 bar |
| Max. Working Pressure [psig] | 711 psig |
| Orifice capacities [kW] | 5.6 kW |
| Orifice capacities [TR] | 1.6 TR |
| Orifice size | 20 |
| Outlet connection type | Solder, ODF |
| Outlet size [in] | 5/8 in |
| Packing format | Multi pack |
| Parts included | Bulb strap |
| Pressure equalization | Externally equalized |
| Product accessories | TXV accessories |
| Product group | Press. and temp. regul. valves |
| Product Name Description | Hot gas bypass regulator |
| Quantity per packing format | 8 pc |
| Rated cap. cond. Range N [IMP] | Delta tsuct=7 °F tcond=104 °F tevap=28 °F |
| Rated cap. cond. Range N [SI] | Delta tsuct=4K tcond=40 °C tevap=-2.0 °C |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R134a |
| SCIP dossier no. | d44ec740-dfe8-4c0a-9644-96406f010504 |
| SCIP dossier product name | TGE |
| Serviceable | No |
| Static Superheat (SS) [°C] | 2 °C |
| Static Superheat (SS) [°F] | 3.6 °F |
| Superheat setting | Adjustable |
| Temperature range [°C] [max] | 13 °C |
| Temperature range [°C] [min] | -1 °C |
| Temperature range [°F] [max] | 55 °F |
| Temperature range [°F] [min] | 30 °F |
| Type | TGHE |
| UL approved refrigerants | R134a |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 067N8301 067N8301 ES_068U4589.pdf | 5 Mbytes |
 |
