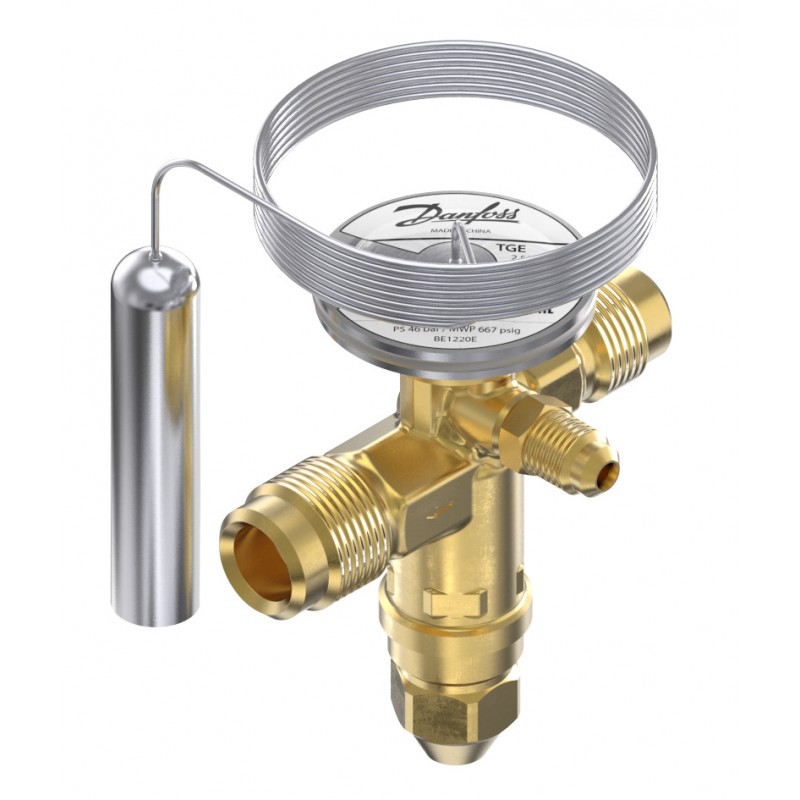

067N7154 DANFOSS REFRIGERATION Thermostatic expansion valve, TGE
067N7154
DANFOSS REFRIGERATION
Thermostatic expansion valve, TGE
Thermostatic expansion valve, TGE, R134a; R513A
Home > DANFOSS REFRIGERATION
* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Temperature range [°C]: -40 - 10, Orifice capacities [kW]: 8.00, Orifice capacities [TR]: 2.50, Pressure equalization: Externally equalized
Product details
| Gross weight | 0.504 Kg |
| Net weight | 0.392 Kg |
| Volume | 1.663 Liter |
| EAN | 5702428170123 |
| Gross weight | 0.504 Kg |
| Net weight | 0.392 Kg |
| Volume | 1.663 Liter |
| EAN | 5702428170123 |
| Approval | C UL US LISTED EAC LLC CDC TYSK |
| Balanced port [Yes/No] | Yes |
| Body material | Brass |
| Capillary tube length [in] | 59 in |
| Capillary tube length [mm] | 1500 mm |
| Connection material | Brass |
| Direction | Straightway |
| Element temperature max. [°C] | 110 °C |
| Element temperature max. [°F] | 230 °F |
| Equalization connection type | Flare |
| Equalization size [in] | 1/4 in |
| EU RoHS compliance | Yes with exemptions |
| Flow direction | Bi-flow |
| Flow direction indicator | Embossed 1-way arrow |
| In scope of WEEE and contain batteries | No |
| Inlet connection type | Flare |
| Inlet size [in] | 3/8 in |
| Max. Working Pressure [bar] | 49 bar |
| Max. Working Pressure [psig] | 711 psig |
| Orifice capacities [kW] | 8 kW |
| Orifice capacities [TR] | 2.5 TR |
| Orifice size | 4 |
| Outlet connection type | Flare |
| Outlet size [in] | 1/2 in |
| Packing format | Multi pack |
| Parts included | Bulb strap |
| Pressure equalization | Externally equalized |
| Product accessories | TXV accessories |
| Product group | Expansion valves |
| Product Name Description | Thermostatic expansion valve |
| Quantity per packing format | 12 pc |
| Rated cap. cond. Range N [IMP] | tcond=100 °F tevap=40 °F tliq=98 °F |
| Rated cap. cond. Range N [SI] | tcond=38 °C tevap=4.4 °C tliq=37 °C |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R134a R513A |
| SCIP dossier no. | d44ec740-dfe8-4c0a-9644-96406f010504 |
| SCIP dossier product name | TGE |
| Serviceable | No |
| Static Superheat (SS) [°C] | 4 °C |
| Static Superheat (SS) [°F] | 7.2 °F |
| Superheat setting | Adjustable |
| Temperature range [°C] [max] | 10 °C |
| Temperature range [°C] [min] | -40 °C |
| Temperature range [°F] [max] | 50 °F |
| Temperature range [°F] [min] | -40 °F |
| Type | TGE |
| UL approved refrigerants | R134a R513A |
| Approval | C UL US LISTED EAC LLC CDC TYSK |
| Balanced port [Yes/No] | Yes |
| Body material | Brass |
| Capillary tube length [in] | 59 in |
| Capillary tube length [mm] | 1500 mm |
| Connection material | Brass |
| Direction | Straightway |
| Element temperature max. [°C] | 110 °C |
| Element temperature max. [°F] | 230 °F |
| Equalization connection type | Flare |
| Equalization size [in] | 1/4 in |
| EU RoHS compliance | Yes with exemptions |
| Flow direction | Bi-flow |
| Flow direction indicator | Embossed 1-way arrow |
| In scope of WEEE and contain batteries | No |
| Inlet connection type | Flare |
| Inlet size [in] | 3/8 in |
| Max. Working Pressure [bar] | 49 bar |
| Max. Working Pressure [psig] | 711 psig |
| Orifice capacities [kW] | 8 kW |
| Orifice capacities [TR] | 2.5 TR |
| Orifice size | 4 |
| Outlet connection type | Flare |
| Outlet size [in] | 1/2 in |
| Packing format | Multi pack |
| Parts included | Bulb strap |
| Pressure equalization | Externally equalized |
| Product accessories | TXV accessories |
| Product group | Expansion valves |
| Product Name Description | Thermostatic expansion valve |
| Quantity per packing format | 12 pc |
| Rated cap. cond. Range N [IMP] | tcond=100 °F tevap=40 °F tliq=98 °F |
| Rated cap. cond. Range N [SI] | tcond=38 °C tevap=4.4 °C tliq=37 °C |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R134a R513A |
| SCIP dossier no. | d44ec740-dfe8-4c0a-9644-96406f010504 |
| SCIP dossier product name | TGE |
| Serviceable | No |
| Static Superheat (SS) [°C] | 4 °C |
| Static Superheat (SS) [°F] | 7.2 °F |
| Superheat setting | Adjustable |
| Temperature range [°C] [max] | 10 °C |
| Temperature range [°C] [min] | -40 °C |
| Temperature range [°F] [max] | 50 °F |
| Temperature range [°F] [min] | -40 °F |
| Type | TGE |
| UL approved refrigerants | R134a R513A |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 067N7154 067N7154 EN_067N3153.pdf | 5 Mbytes |
 |
