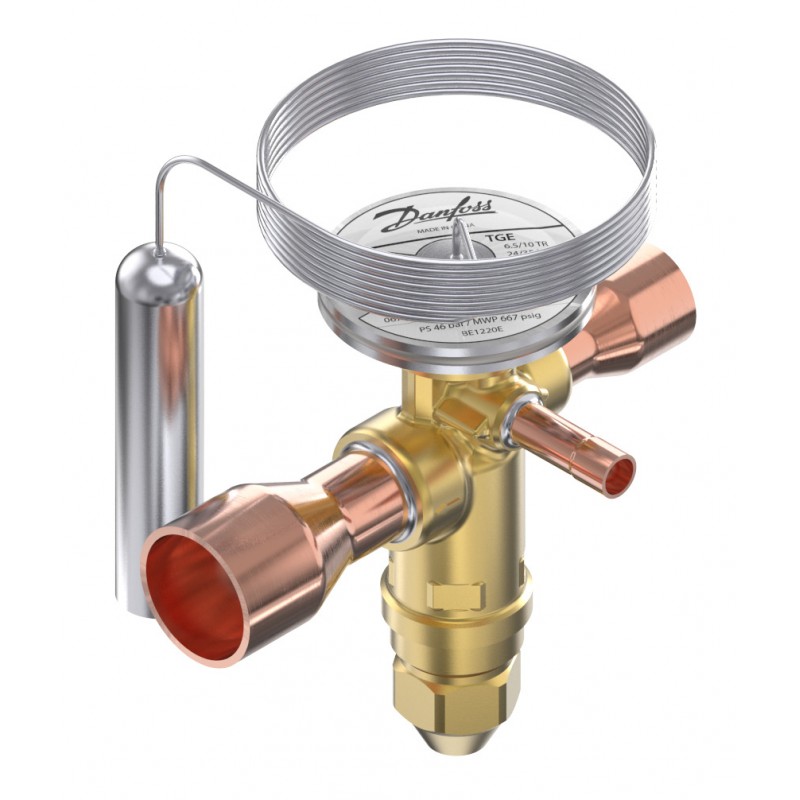

067N5011 DANFOSS REFRIGERATION Thermostatic expansion valve, TGE
067N5011
DANFOSS REFRIGERATION
Thermostatic expansion valve, TGE
Home > DANFOSS REFRIGERATION
* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
More info
▲Product name: Thermostatic expansion valve, Type: TGEN, Refrigerants: R134a, Inlet size [in]: 5/8 in, Inlet connection type: Solder, ODF, Outlet size [in]: 1 1/8 in, Outlet connection type: Solder, ODF, Orifice capacities [TR]: 10.00
| Gross weight | 0.76 Kg |
| Net weight | 0.63 Kg |
| EAN | 5702428324113 |
| Approval | C UL US LISTED EAC LLC CDC TYSK |
| Balanced port [Yes/No] | Yes |
| Body material | Brass |
| Bulb temperature max. [ºC] | 150 °C |
| Bulb temperature max. [ºF] | 302 °F |
| Capillary tube length [in] | 59 in |
| Capillary tube length [mm] | 1500 mm |
| Connection material | Copper |
| Direction | Straightway |
| Element temperature max. [°C] | 110 °C |
| Element temperature max. [°F] | 230 °F |
| Equalization connection type | SOLDER, ODF |
| Equalization size [in] | 1/4 IN |
| Flow direction | Bi-flow |
| Flow direction indicator | Embossed 1-way arrow |
| Inlet connection type | SOLDER, ODF |
| Inlet size [in] | 5/8 IN |
| Max. Working Pressure [bar] | 46 bar |
| Max. Working Pressure [psig] | 667 psig |
| MOP Point [psig] | MOP 55 |
| MOP Point [°C] | 15 °C |
| MOP Point [°F] | 60 °F |
| Orifice capacities [kW] | 37 kW |
| Orifice capacities [TR] | 10 tons |
| Orifice size | 16 |
| Outlet connection type | SOLDER, ODF |
| Outlet size [in] | 1 1/8 IN |
| Packing format | Multi pack |
| Parts included | Bulb strap |
| Pressure equalization | Externally equalized |
| Product accessories | TXV accessories |
| Product description | Thermostatic Expans. Valve |
| Product family name | TGE |
| Product Group | Expansion valves |
| Product name | Thermostatic expansion valve |
| Product type | TGE |
| Quantity per packing format | 8 pc |
| Rated cap. cond. Range N [IMP] | tcond=100 °F tevap=40 °F tliq=98 °F |
| Rated cap. cond. Range N [SI] | tcond=38 °C tevap=4.4 °C tliq=37 °C |
| Refrigerants | R134a |
| Serviceable | No |
| Static Superheat (SS) [°C] | 4 °C |
| Static Superheat (SS) [°F] | 7.2 °F |
| Superheat setting | Adjustable |
| System line application | Liquid line |
| Temperature range [°C] [Max] | 10 °C |
| Temperature range [°C] [Min] | -25 °C |
| Temperature range [°F] [Max] | 50 °F |
| Temperature range [°F] [Min] | -15 °F |
| Valve body temp. max. [°C] | 150 °C |
| Valve body temp. max. [°F] | 302 °F |
