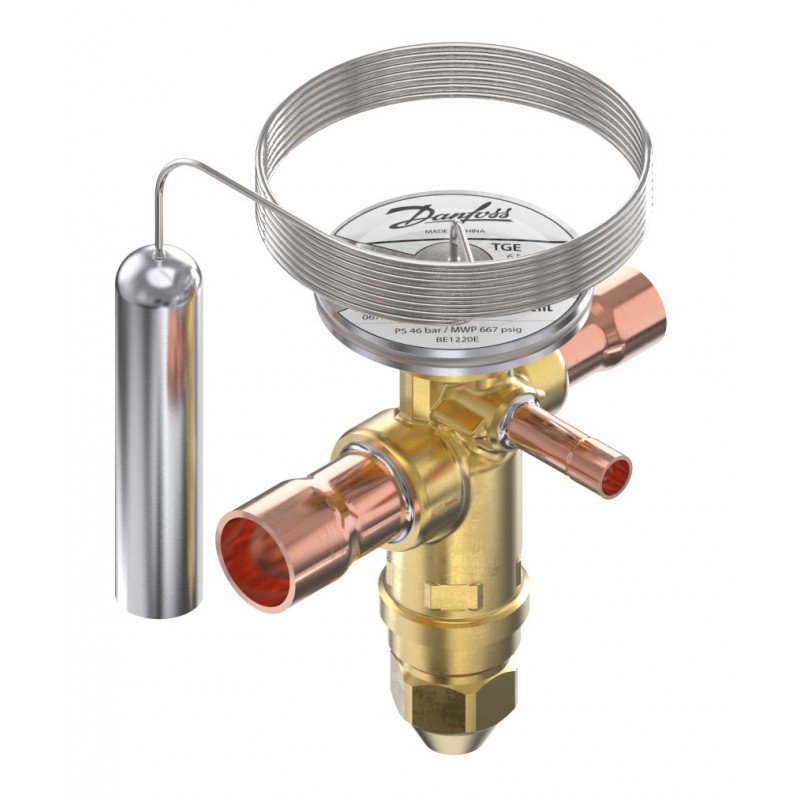

DANFOSS REFRIGERATION 067N2000 067N2000 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

067N2000 DANFOSS REFRIGERATION Thermostatic expansion valve, TGE

Reference: 067N2000

Manufacturer: DANFOSS REFRIGERATION

Description:

Thermostatic expansion valve, TGE
TGE 3 ExpansionValve Solder M/12.
Thermostatic expansion valve, TGE, R22/R407C

Categories:

  • DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 167,27 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 4-5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Temperature range [°C]: -25 - 10, Orifice capacities [kW]: 10, Pressure equalization: Externally equalized

Product details

Gross weight0.467 Kilogram
Net weight0.37 Kilogram
Volume1.739 Liter
EAN5702428137850
TypeTGE
Product groupExpansion valves
Product Name DescriptionThermostatic expansion valve
Gross weight0.467 Kilogram
Net weight0.37 Kilogram
Volume1.739 Liter
EAN5702428137850
TypeTGE
Product groupExpansion valves
Product Name DescriptionThermostatic expansion valve

ApprovalC UL US LISTED
EAC
LLC CDC TYSK
Balanced port [Yes/No]Yes
Body materialBrass
Capillary tube length [in]59 in
Capillary tube length [mm]1500 mm
China RoHS complianceYes with exemptions
China RoHS exemption clause7.3
Connection materialCopper
Contains batteriesNo
DirectionStraightway
Element temperature max. [°C]110 °C
Element temperature max. [°F]230 °F
Equalization connection typeSolder, ODF
Equalization size [in]1/4 in
EU RoHS complianceYes with exemptions
EU RoHS exemption clause6(c)
Flow directionBi-flow
Flow direction indicatorEmbossed 1-way arrow
Fluid Group2
Identical product067N2020
Inlet connection typeSolder, ODF
Inlet size [in]3/8 in
Max. Working Pressure [bar]49 bar
Max. Working Pressure [psig]711 psig
MOP Point [psig]MOP 100
MOP Point [°C]15 °C
MOP Point [°F]60 °F
Orifice capacities [kW]10 kW
Orifice capacities [TR]3 TR
Orifice size3
Outlet connection typeSolder, ODF
Outlet size [in]5/8 in
Packing formatMulti pack
Parts includedBulb strap
PED categoryArt. 4, par. 3
Pressure equalizationExternally equalized
Product accessoriesTXV accessories
Quantity per packing format12 pc
Rated cap. cond. Range N [IMP]tcond=100 °F
tevap=40 °F
tliq=98 °F
Rated cap. cond. Range N [SI]tcond=38 °C
tevap=4.4 °C
tliq=37 °C
REACH Candidate List substancesLead (CAS no. 7439-92-1)
RefrigerantsR22/R407C
SCIP dossier no.3c484d77-61a0-4822-8540-e10a4d795088
SCIP dossier product nameTGE -Thermostatic expansion valve
ServiceableNo
Static Superheat (SS) [°C]4 °C
Static Superheat (SS) [°F]7.2 °F
Superheat settingAdjustable
Temperature range [°C] [max]10 °C
Temperature range [°C] [min]-25 °C
Temperature range [°F] [max]50 °F
Temperature range [°F] [min]-15 °F
UL approved refrigerantsR22
R407C
UL markYes
ApprovalC UL US LISTED
EAC
LLC CDC TYSK
Balanced port [Yes/No]Yes
Body materialBrass
Capillary tube length [in]59 in
Capillary tube length [mm]1500 mm
China RoHS complianceYes with exemptions
China RoHS exemption clause7.3
Connection materialCopper
Contains batteriesNo
DirectionStraightway
Element temperature max. [°C]110 °C
Element temperature max. [°F]230 °F
Equalization connection typeSolder, ODF
Equalization size [in]1/4 in
EU RoHS complianceYes with exemptions
EU RoHS exemption clause6(c)
Flow directionBi-flow
Flow direction indicatorEmbossed 1-way arrow
Fluid Group2
Identical product067N2020
Inlet connection typeSolder, ODF
Inlet size [in]3/8 in
Max. Working Pressure [bar]49 bar
Max. Working Pressure [psig]711 psig
MOP Point [psig]MOP 100
MOP Point [°C]15 °C
MOP Point [°F]60 °F
Orifice capacities [kW]10 kW
Orifice capacities [TR]3 TR
Orifice size3
Outlet connection typeSolder, ODF
Outlet size [in]5/8 in
Packing formatMulti pack
Parts includedBulb strap
PED categoryArt. 4, par. 3
Pressure equalizationExternally equalized
Product accessoriesTXV accessories
Quantity per packing format12 pc
Rated cap. cond. Range N [IMP]tcond=100 °F
tevap=40 °F
tliq=98 °F
Rated cap. cond. Range N [SI]tcond=38 °C
tevap=4.4 °C
tliq=37 °C
REACH Candidate List substancesLead (CAS no. 7439-92-1)
RefrigerantsR22/R407C
SCIP dossier no.3c484d77-61a0-4822-8540-e10a4d795088
SCIP dossier product nameTGE -Thermostatic expansion valve
ServiceableNo
Static Superheat (SS) [°C]4 °C
Static Superheat (SS) [°F]7.2 °F
Superheat settingAdjustable
Temperature range [°C] [max]10 °C
Temperature range [°C] [min]-25 °C
Temperature range [°F] [max]50 °F
Temperature range [°F] [min]-15 °F
UL approved refrigerantsR22
R407C
UL markYes
