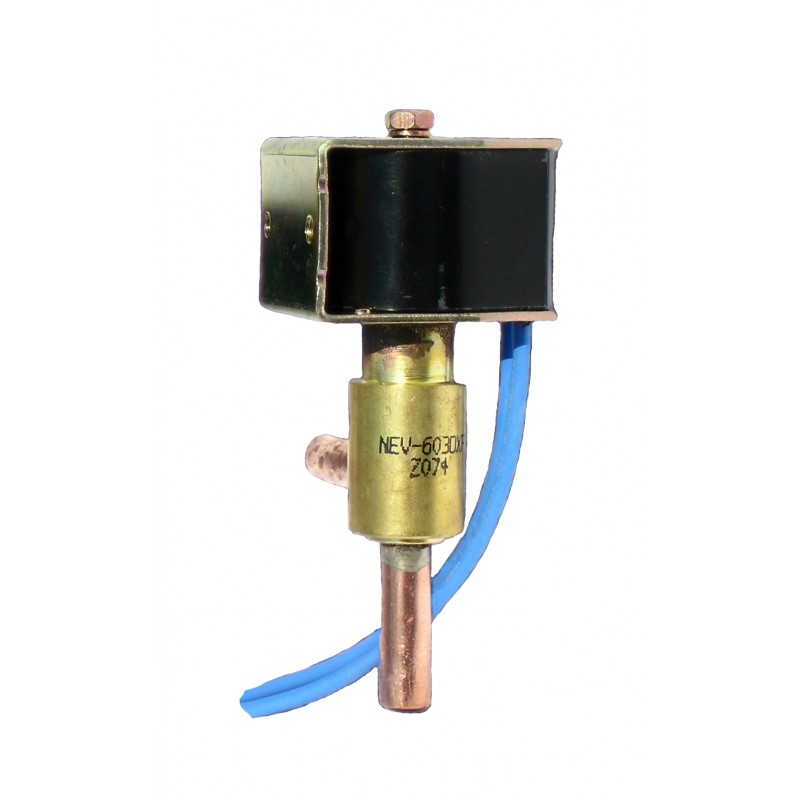

061N2043 DANFOSS REFRIGERATION Solenoid valve, NEV
061N2043
DANFOSS REFRIGERATION
100
Solenoid valve, NEV
Solenoid valve, NEV, Solder, 5/16 in, 7.94 mm, 0.56 m³/h, NC
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Body material: Brass, Medium temperature range [°C]: -30 - 120, Max. Working Pressure [bar]: 33, Packing format: Industrial pack, Quantity per packing format: 100
Product details
| Gross weight | 0.098 Kilogram |
| Net weight | 0.093 Kilogram |
| Volume | 0.351 Liter |
| EAN | 5702428269445 |
| Type | NEV |
| Product group | Solenoid valves |
| Product Name Description | Solenoid valve |
| Gross weight | 0.098 Kilogram |
| Net weight | 0.093 Kilogram |
| Volume | 0.351 Liter |
| EAN | 5702428269445 |
| Type | NEV |
| Product group | Solenoid valves |
| Product Name Description | Solenoid valve |
| Ambient temperature range [°C] [max] | 50 °C |
| Ambient temperature range [°C] [min] | -30 °C |
| Ambient temperature range [°F] [max] | 122 °F |
| Ambient temperature range [°F] [min] | -22 °F |
| Approval | CE |
| Body material | Brass |
| Burst pressure [bar] | 132 bar |
| Burst pressure [psig] | 1914 psig |
| CE mark | Yes |
| China RoHS compliance | Out of scope |
| Coil | No |
| Coil mount, recom. torque [Nm] [max] | 1.96 nm |
| Coil mount, recom. torque [Nm] [min] | 1.47 nm |
| Connection type | Solder |
| Contains batteries | No |
| Cv value [gal/min] | 0.65 gal/min |
| Design config. Style | 90° angle |
| EU RoHS compliance | Out of scope |
| Inlet size [in] | 5/16 in |
| Inlet size [mm] | 7.94 mm |
| Kv value [m³/h] | 0.56 m³/h |
| Max. Working Pressure [bar] | 33 bar |
| Max. Working Pressure [psig] | 479 psig |
| MaxOPD [bar] | 20.6 bar |
| MaxOPD [psig] | 299 psig |
| Medium temperature range [°C] [max] | 120 °C |
| Medium temperature range [°C] [min] | -30 °C |
| Medium temperature range [°F] [max] | 248 °F |
| Medium temperature range [°F] [min] | -22 °F |
| MinODP [bar] | 0 bar |
| MinODP [psi] | 0 psi |
| Outlet connection type | Solder |
| Outlet size [in] | 5/16 in |
| Outlet size [mm] | 7.94 mm |
| Packing format | Industrial pack |
| Port size [mm] | 5.8 mm |
| Product accessories | No |
| Quantity per packing format | 100 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R134a R404A R407C R22/R407C |
| SCIP dossier no. | 69373b8b-09ff-4773-885b-0c2750a14e77 |
| SCIP dossier product name | Solenoid valve body |
| Serviceable | No |
| Type designation | NEV-603DXF |
| Valve operation | NC |
| Ambient temperature range [°C] [max] | 50 °C |
| Ambient temperature range [°C] [min] | -30 °C |
| Ambient temperature range [°F] [max] | 122 °F |
| Ambient temperature range [°F] [min] | -22 °F |
| Approval | CE |
| Body material | Brass |
| Burst pressure [bar] | 132 bar |
| Burst pressure [psig] | 1914 psig |
| CE mark | Yes |
| China RoHS compliance | Out of scope |
| Coil | No |
| Coil mount, recom. torque [Nm] [max] | 1.96 nm |
| Coil mount, recom. torque [Nm] [min] | 1.47 nm |
| Connection type | Solder |
| Contains batteries | No |
| Cv value [gal/min] | 0.65 gal/min |
| Design config. Style | 90° angle |
| EU RoHS compliance | Out of scope |
| Inlet size [in] | 5/16 in |
| Inlet size [mm] | 7.94 mm |
| Kv value [m³/h] | 0.56 m³/h |
| Max. Working Pressure [bar] | 33 bar |
| Max. Working Pressure [psig] | 479 psig |
| MaxOPD [bar] | 20.6 bar |
| MaxOPD [psig] | 299 psig |
| Medium temperature range [°C] [max] | 120 °C |
| Medium temperature range [°C] [min] | -30 °C |
| Medium temperature range [°F] [max] | 248 °F |
| Medium temperature range [°F] [min] | -22 °F |
| MinODP [bar] | 0 bar |
| MinODP [psi] | 0 psi |
| Outlet connection type | Solder |
| Outlet size [in] | 5/16 in |
| Outlet size [mm] | 7.94 mm |
| Packing format | Industrial pack |
| Port size [mm] | 5.8 mm |
| Product accessories | No |
| Quantity per packing format | 100 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R134a R404A R407C R22/R407C |
| SCIP dossier no. | 69373b8b-09ff-4773-885b-0c2750a14e77 |
| SCIP dossier product name | Solenoid valve body |
| Serviceable | No |
| Type designation | NEV-603DXF |
| Valve operation | NC |
