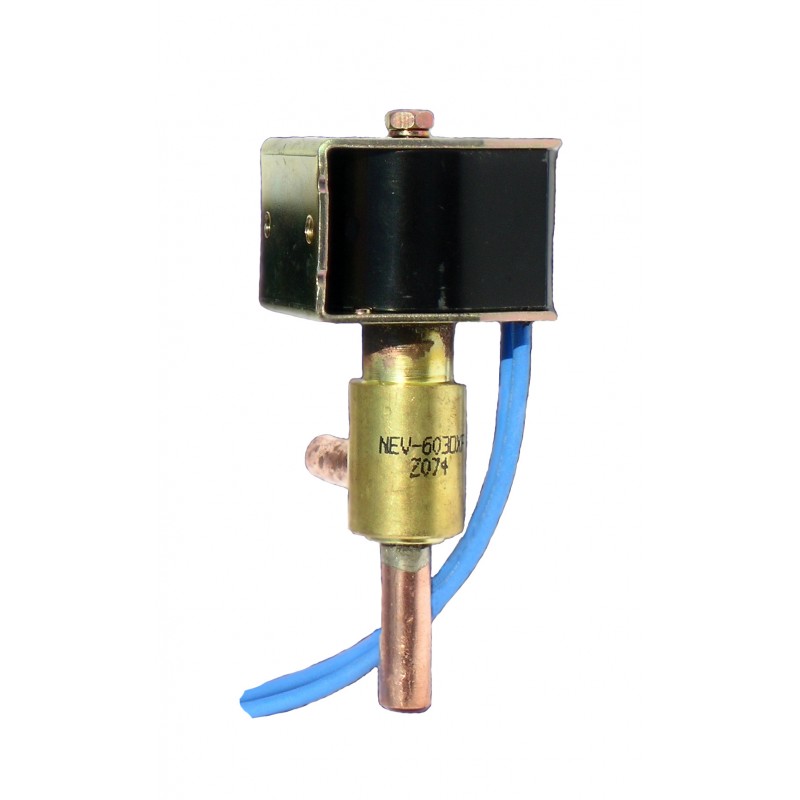

DANFOSS REFRIGERATION 061N2001 061N2001 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

061N2001 DANFOSS REFRIGERATION Solenoid valve, NEV

Name: 061N2001 DANFOSS REFRIGERATION Solenoid valve, NEV
Brand: DANFOSS REFRIGERATION
SKU: DAO061N2001
Price: 36.82 USD
Availability: OutOfStock

Reference: 061N2001

Manufacturer: DANFOSS REFRIGERATION

Description:

Solenoid valve, NEV

Solenoid valve, NEV, Solder, 1/4 in, 6.35 mm, 0.08 m³/h, NC

Categories:

DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

More Info
Reviews

Guarantee, repair and return.

Total: 6.263,68 €

Unit Price: 31,3184 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 4-5 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

LAST VIEWED

MORE INFO

Body material: Brass, Medium temperature range [°C]: -30 - 120, Max. Working Pressure [bar]: 33, Packing format: Industrial pack, Quantity per packing format: 200

Product details

Gross weight	0.052 Kilogram
Net weight	0.049 Kilogram
Volume	0.18 Liter
EAN	5702428269612

Type	NEV
Product group	Solenoid valves
Product Name Description	Solenoid valve

Gross weight	0.052 Kilogram
Net weight	0.049 Kilogram
Volume	0.18 Liter
EAN	5702428269612
Type	NEV
Product group	Solenoid valves
Product Name Description	Solenoid valve

Ambient temperature range [°C] [max]	50 °C
Ambient temperature range [°C] [min]	-30 °C
Ambient temperature range [°F] [max]	122 °F
Ambient temperature range [°F] [min]	-22 °F
Approval	CE
Body material	Brass
Burst pressure [bar]	132 bar
Burst pressure [psig]	1914 psig
CE mark	Yes
China RoHS compliance	Out of scope
Coil	No
Coil mount, recom. torque [Nm] [max]	1.96 nm
Coil mount, recom. torque [Nm] [min]	1.47 nm
Connection type	Solder
Contains batteries	No
Cv value [gal/min]	0.1 gal/min
Design config. Style	90° angle
EU RoHS compliance	Out of scope
Inlet size [in]	1/4 in
Inlet size [mm]	6.35 mm
Kv value [m³/h]	0.08 m³/h
Max. Working Pressure [bar]	33 bar
Max. Working Pressure [psig]	479 psig

MaxOPD [bar]	20.6 bar
MaxOPD [psig]	299 psig
Medium temperature range [°C] [max]	120 °C
Medium temperature range [°C] [min]	-30 °C
Medium temperature range [°F] [max]	248 °F
Medium temperature range [°F] [min]	-22 °F
MinODP [bar]	0 bar
MinODP [psi]	0 psi
Outlet connection type	Solder
Outlet size [in]	1/4 in
Outlet size [mm]	6.35 mm
Packing format	Industrial pack
Port size [mm]	1.9 mm
Product accessories	No
Quantity per packing format	200 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Refrigerants	R134a R404A R407C R22/R407C
SCIP dossier no.	69373b8b-09ff-4773-885b-0c2750a14e77
SCIP dossier product name	Solenoid valve body
Serviceable	No
Type designation	NEV-202DXF
Valve operation	NC

Ambient temperature range [°C] [max]	50 °C
Ambient temperature range [°C] [min]	-30 °C
Ambient temperature range [°F] [max]	122 °F
Ambient temperature range [°F] [min]	-22 °F
Approval	CE
Body material	Brass
Burst pressure [bar]	132 bar
Burst pressure [psig]	1914 psig
CE mark	Yes
China RoHS compliance	Out of scope
Coil	No
Coil mount, recom. torque [Nm] [max]	1.96 nm
Coil mount, recom. torque [Nm] [min]	1.47 nm
Connection type	Solder
Contains batteries	No
Cv value [gal/min]	0.1 gal/min
Design config. Style	90° angle
EU RoHS compliance	Out of scope
Inlet size [in]	1/4 in
Inlet size [mm]	6.35 mm
Kv value [m³/h]	0.08 m³/h
Max. Working Pressure [bar]	33 bar
Max. Working Pressure [psig]	479 psig
MaxOPD [bar]	20.6 bar
MaxOPD [psig]	299 psig
Medium temperature range [°C] [max]	120 °C
Medium temperature range [°C] [min]	-30 °C
Medium temperature range [°F] [max]	248 °F
Medium temperature range [°F] [min]	-22 °F
MinODP [bar]	0 bar
MinODP [psi]	0 psi
Outlet connection type	Solder
Outlet size [in]	1/4 in
Outlet size [mm]	6.35 mm
Packing format	Industrial pack
Port size [mm]	1.9 mm
Product accessories	No
Quantity per packing format	200 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Refrigerants	R134a R404A R407C R22/R407C
SCIP dossier no.	69373b8b-09ff-4773-885b-0c2750a14e77
SCIP dossier product name	Solenoid valve body
Serviceable	No
Type designation	NEV-202DXF
Valve operation	NC
