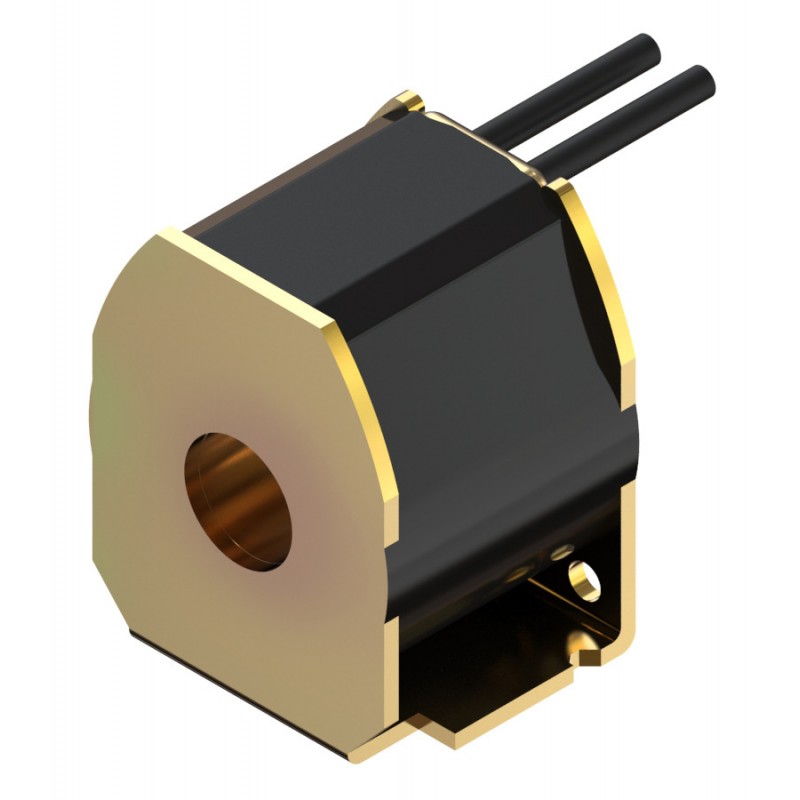

061L2114 DANFOSS REFRIGERATION 4-way reversing valve coil, STF
061L2114
DANFOSS REFRIGERATION
100
4-way reversing valve coil, STF
4-way reversing valve coil, STF-01AJ542UB1
Home > DANFOSS REFRIGERATION
* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
More info
▲Supply voltage [V] AC: 220, Frequency [Hz]: 50/60 Hz, Enclosure rating IP: IP54
Product details
| Gross weight | 0.143 Kg |
| Net weight | 0.136 Kg |
| Volume | 0.163 Liter |
| EAN | 5702428272544 |
| Gross weight | 0.143 Kg |
| Net weight | 0.136 Kg |
| Volume | 0.163 Liter |
| EAN | 5702428272544 |
| Ambient temperature range [°C] [max] | 55 °C |
| Ambient temperature range [°C] [min] | -20 °C |
| Ambient temperature range [°F] [max] | 131 °F |
| Ambient temperature range [°F] [min] | -4 °F |
| Cable length [in] | 39.37 in |
| Cable length [m] | 1 m |
| Class of Insulation | B |
| Coil mount, recom. torque [Nm] [max] | 1.96 nm |
| Coil mount, recom. torque [Nm] [min] | 1.47 nm |
| Enclosure rating IP | IP54 |
| EU RoHS compliance | No - out of scope |
| Frequency [Hz] | 50/60 Hz |
| In scope of WEEE and contain batteries | No |
| Packing format | Industrial pack |
| Power consumption [W] | 6 W |
| Product group | 4-way reversing valves |
| Product Name Description | 4-way reversing valve coil |
| Quantity per packing format | 100 pc |
| REACH Candidate List substances | No |
| Supply voltage [V] AC | 220 V |
| Type | STF |
| Type designation | STF-01AJ542UB1 |
| UL approval file name | MH12113 MH19650 |
| Ambient temperature range [°C] [max] | 55 °C |
| Ambient temperature range [°C] [min] | -20 °C |
| Ambient temperature range [°F] [max] | 131 °F |
| Ambient temperature range [°F] [min] | -4 °F |
| Cable length [in] | 39.37 in |
| Cable length [m] | 1 m |
| Class of Insulation | B |
| Coil mount, recom. torque [Nm] [max] | 1.96 nm |
| Coil mount, recom. torque [Nm] [min] | 1.47 nm |
| Enclosure rating IP | IP54 |
| EU RoHS compliance | No - out of scope |
| Frequency [Hz] | 50/60 Hz |
| In scope of WEEE and contain batteries | No |
| Packing format | Industrial pack |
| Power consumption [W] | 6 W |
| Product group | 4-way reversing valves |
| Product Name Description | 4-way reversing valve coil |
| Quantity per packing format | 100 pc |
| REACH Candidate List substances | No |
| Supply voltage [V] AC | 220 V |
| Type | STF |
| Type designation | STF-01AJ542UB1 |
| UL approval file name | MH12113 MH19650 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 061L2114 061L2114 EN_061L1280.pdf | 4 Mbytes |
 |
