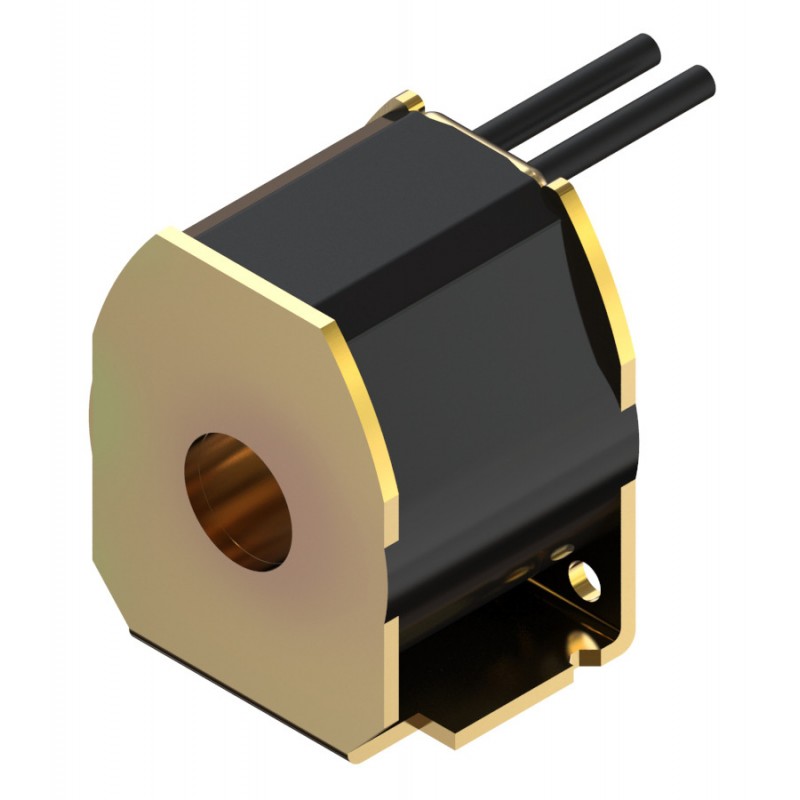

061L2038 DANFOSS REFRIGERATION 4-way reversing valve coil, STF
061L2038
DANFOSS REFRIGERATION
100
4-way reversing valve coil, STF
4-way reversing valve coil, STF-01AB503B1
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Supply voltage [V] AC: 24, Frequency [Hz]: 50/60 Hz, Enclosure rating IP: IP54, Packing format: Industrial pack, Quantity per packing format: 100
Product details
| Gross weight | 0.142 Kilogram |
| Net weight | 0.13 Kilogram |
| Volume | 0.152 Liter |
| EAN | 5702428272902 |
| Type | STF |
| Product group | 4-way reversing valves |
| Product Name Description | 4-way reversing valve coil |
| Gross weight | 0.142 Kilogram |
| Net weight | 0.13 Kilogram |
| Volume | 0.152 Liter |
| EAN | 5702428272902 |
| Type | STF |
| Product group | 4-way reversing valves |
| Product Name Description | 4-way reversing valve coil |
| Ambient temperature range [°C] [max] | 55 °C |
| Ambient temperature range [°C] [min] | -20 °C |
| Ambient temperature range [°F] [max] | 131 °F |
| Ambient temperature range [°F] [min] | -4 °F |
| Approval | CE VDE |
| Cable length [in] | 47.2 in |
| Cable length [m] | 1.2 m |
| CE mark | Yes |
| China RoHS compliance | Out of scope |
| Class of Insulation | B |
| Coil mount, recom. torque [Nm] [max] | 1.96 nm |
| Coil mount, recom. torque [Nm] [min] | 1.47 nm |
| Contains batteries | No |
| Enclosure rating IP | IP54 |
| EU RoHS compliance | Out of scope |
| Frequency [Hz] | 50/60 Hz |
| Packing format | Industrial pack |
| Power consumption [W] | 6 W |
| Quantity per packing format | 100 pc |
| REACH Candidate List substances | No |
| Supply voltage [V] AC | 24 V |
| Type designation | STF-01AB503B1 |
| Ambient temperature range [°C] [max] | 55 °C |
| Ambient temperature range [°C] [min] | -20 °C |
| Ambient temperature range [°F] [max] | 131 °F |
| Ambient temperature range [°F] [min] | -4 °F |
| Approval | CE VDE |
| Cable length [in] | 47.2 in |
| Cable length [m] | 1.2 m |
| CE mark | Yes |
| China RoHS compliance | Out of scope |
| Class of Insulation | B |
| Coil mount, recom. torque [Nm] [max] | 1.96 nm |
| Coil mount, recom. torque [Nm] [min] | 1.47 nm |
| Contains batteries | No |
| Enclosure rating IP | IP54 |
| EU RoHS compliance | Out of scope |
| Frequency [Hz] | 50/60 Hz |
| Packing format | Industrial pack |
| Power consumption [W] | 6 W |
| Quantity per packing format | 100 pc |
| REACH Candidate List substances | No |
| Supply voltage [V] AC | 24 V |
| Type designation | STF-01AB503B1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
| 061L2038 061L2038 EN_061L1280.pdf | 1 Mbytes |
|
