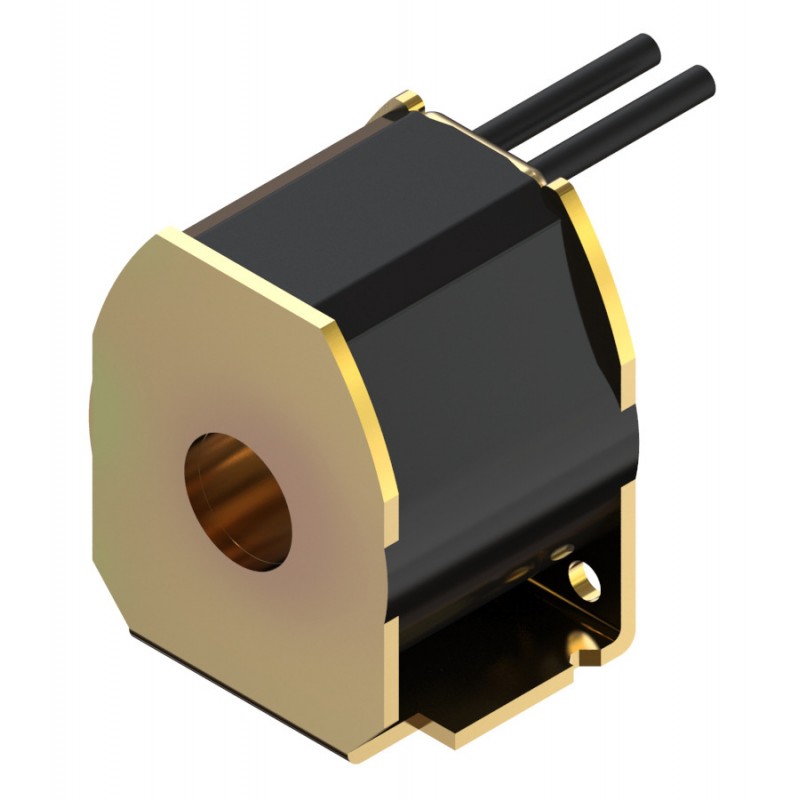

061L2016 DANFOSS REFRIGERATION 4-way reversing valve coil, STF
Reference: 061L2016
Manufacturer: DANFOSS REFRIGERATION
Description:
4-way reversing valve coil, STF
4-way reversing valve coil, STF-01AJ504F1
Categories:
- DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
- More Info
- Reviews
LAST VIEWED
MORE INFO
Supply voltage [V] AC: 208 - 240, Frequency [Hz]: 50 Hz, Enclosure rating IP: IP54, Packing format: Industrial pack, Quantity per packing format: 100
Product details
| Gross weight | 0.148 Kilogram |
| Net weight | 0.126 Kilogram |
| Volume | 0.15 Liter |
| EAN | 5702428272933 |
| Type | STF |
| Product group | 4-way reversing valves |
| Product Name Description | 4-way reversing valve coil |
| Gross weight | 0.148 Kilogram |
| Net weight | 0.126 Kilogram |
| Volume | 0.15 Liter |
| EAN | 5702428272933 |
| Type | STF |
| Product group | 4-way reversing valves |
| Product Name Description | 4-way reversing valve coil |
| Ambient temperature range [°C] [max] | 55 °C |
| Ambient temperature range [°C] [min] | -20 °C |
| Ambient temperature range [°F] [max] | 131 °F |
| Ambient temperature range [°F] [min] | -4 °F |
| Approval | CE VDE |
| Cable length [in] | 47.2 in |
| Cable length [m] | 1.2 m |
| CE evaluated | Yes |
| China RoHS compliance | Yes |
| China RoHS exemption clause | No |
| Class of Insulation | B |
| Coil mount, recom. torque [Nm] [max] | 1.96 nm |
| Coil mount, recom. torque [Nm] [min] | 1.47 nm |
| Contains batteries | No |
| Enclosure rating IP | IP54 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Frequency [Hz] | 50 Hz |
| Packing format | Industrial pack |
| Power consumption [W] | 6 W |
| Quantity per packing format | 100 pc |
| REACH Candidate List substances | No |
| Supply voltage [V] AC [max] | 240 V |
| Supply voltage [V] AC [min] | 208 V |
| Type designation | STF-01AJ504F1 |
| Ambient temperature range [°C] [max] | 55 °C |
| Ambient temperature range [°C] [min] | -20 °C |
| Ambient temperature range [°F] [max] | 131 °F |
| Ambient temperature range [°F] [min] | -4 °F |
| Approval | CE VDE |
| Cable length [in] | 47.2 in |
| Cable length [m] | 1.2 m |
| CE evaluated | Yes |
| China RoHS compliance | Yes |
| China RoHS exemption clause | No |
| Class of Insulation | B |
| Coil mount, recom. torque [Nm] [max] | 1.96 nm |
| Coil mount, recom. torque [Nm] [min] | 1.47 nm |
| Contains batteries | No |
| Enclosure rating IP | IP54 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Frequency [Hz] | 50 Hz |
| Packing format | Industrial pack |
| Power consumption [W] | 6 W |
| Quantity per packing format | 100 pc |
| REACH Candidate List substances | No |
| Supply voltage [V] AC [max] | 240 V |
| Supply voltage [V] AC [min] | 208 V |
| Type designation | STF-01AJ504F1 |
